Appleton 4Q-4100 Conduit Connector 1 in 45 deg

Product Description

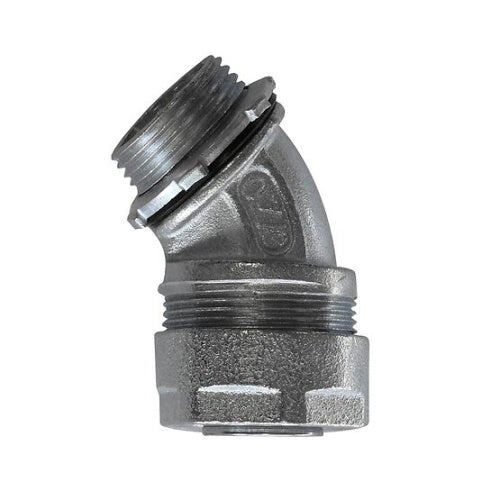

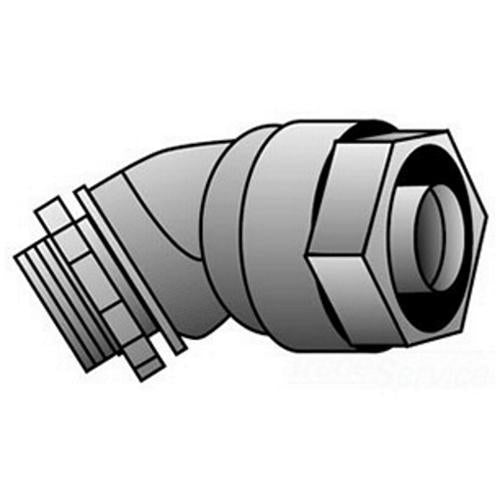

The Appleton 4Q-4100 is a 45-degree liquidtight conduit connector designed for liquidtight flexible metallic conduit (LFMC). It uses a compression x tapered MNPT hub with a malleable iron body and nut, a steel ferrule, and a zinc electroplated finish. The connector is NEMA 4 rated for wet locations, includes a locknut and knockout sealing ring, and has ferrule inspection windows to verify conduit engagement.

• Compression x tapered MNPT hub connection in a 45-degree orientation for LFMC
• Malleable iron body and nut with steel ferrule and zinc electroplated finish; long reusable ferrule to resist pullout
• NEMA 4 rated for wet locations; includes locknut and KO sealing ring; ferrule inspection windows ensure full conduit engagement

Product Highlights

45-degree NEMA 4 liquidtight LFMC connector with compression x tapered MNPT hub and malleable iron construction

Product Information

Standard Information

• Brand: APPLETON
• Manufacturer Part Number: 4Q-4100
• Country of Origin: US

Technical Specifications

• Brand: Appleton
• Manufacturer Part Number: 4Q-4100
• Series: 4Q Series
• Type: Concretetight / Liquid Tight / Oiltight / Raintight
• Size: 1 in
• Angle: 45 deg
• For Use With: Liquid Tight Flexible Metallic Conduit (LFMC)
• Body Material: Malleable iron
• Nut Material: Malleable iron
• Ferrule Material: Steel
• Finish: Zinc electroplated
• Connection: Compression x tapered MNPT hub
• NEMA Rating: NEMA 4
• Dimensions: 2.50 in H x 1.75 in W x 2.375 in L
• Dimension A: 2-3/8 in
• Includes: Locknut; KO sealing ring
• Certifications: UL Listed; CSA Certified
• Made In: US
• UPC: 78312661875
• Weight: 0.450 lb
