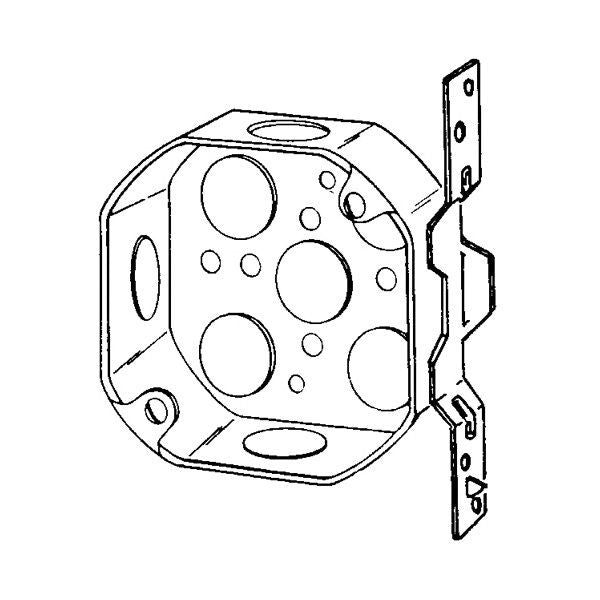

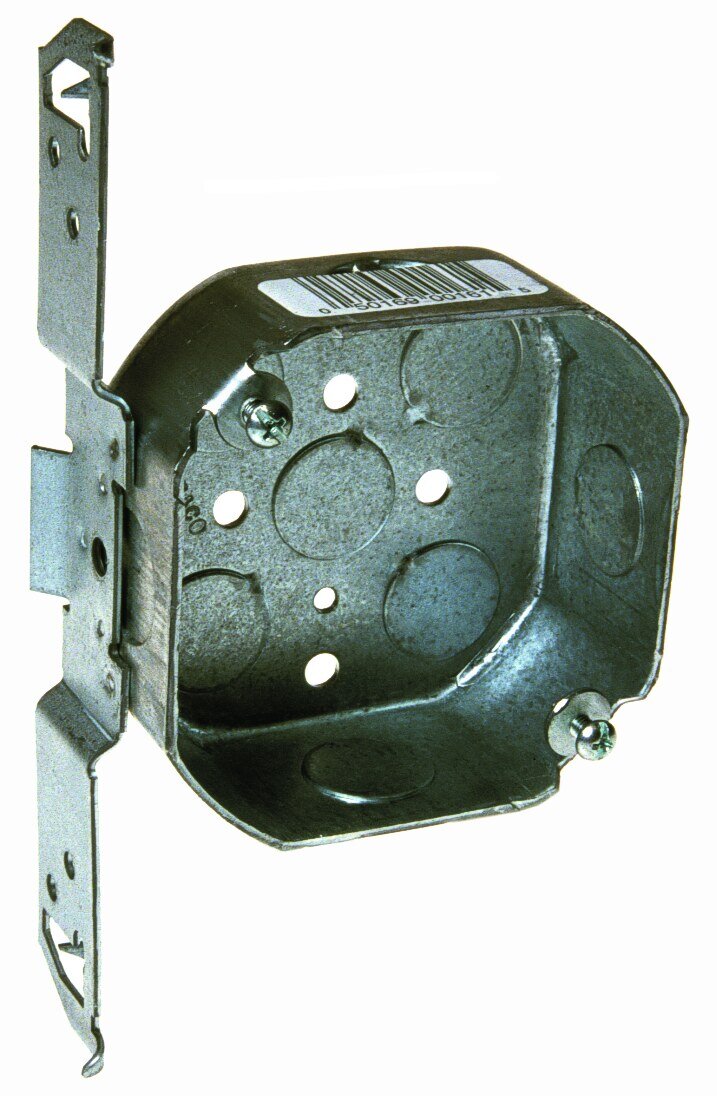

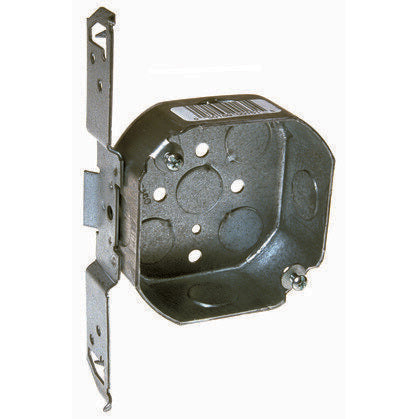

Appleton 4OVB-1/2 Octagon Box, Steel, 15.5 cu-in Capacity, 8 Knockouts, 1-1/2 in D

Product Description

The APPLETON 4OVB-1/2 is an octagon box made of steel with a 15.5 cu-in capacity and 8 knockouts. This durable box can be used as a junction box or a device box for switches, receptacles and GFCIs. It is suitable for various wiring jobs.

• Features (3) 1/2 in side and (5) 1/2 bottom knockouts
• Made of durable steel with consistent construction for easy installation
• UL 514A Listed

Product Highlights

The Appleton 4OVB-1/2 octagon box is ideal for electrical connections and installations.

Product Information

Standard Information

• Brand: APPLETON
• Manufacturer Part Number: 4OVB-1/2
• Country of Origin: United States

Technical Specifications

• Knockout Size: (3) 1/2 in Side, (5) 1/2 Bottom
• Material: Steel
• Number of Knockouts: 8
• Shape: Octagon
• Standard & Approvals: ARRA, Buy American Act and RoHS Compliant, UL 514A, E2527
• Capacity: 15.5 cu-in
• Enclosure Type: NEMA OS-1
• Finish: Pre-Galvanized
• Dimensions: 1-1/2 in D
• Knockout Diameter: 1/2 in
• Mounting: Bracket, Screw On, Nail On
• Diameter: 4 in
• Depth: 1 1/2 in
• Cubic Inches: 15.500 in ³
• Brand: APPOZGCOMM
• Cubic Capacity: 15.5
• Special Features: With 1/2 IN Conduit Knockouts, 1-1/2 IN Deep, Vertical Bracket With Stud, Set Back 5/8 IN
• Standard: UL Standard 514A; UL Listed E2527; Nema OS-1
• RoHS Indicator: Contact Manufacturer
• Item Type: Octagonal Box
• Length: 15.0000
• Length UOM: Inch
• Width: 13.0000
• Width UOM: Inch
• Height: 0.2200
• Height UOM: Inch
• Weight: 0.610
• Weight UOM: Pounds
• Size: 4 X 4 X 1.5
