Product Description

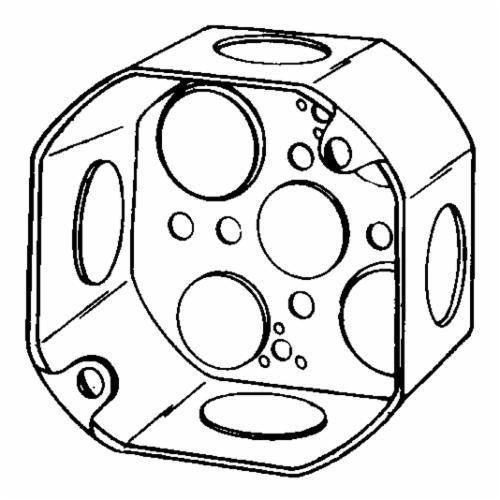

The Appleton 4OD-3/4 is a 4 x 2-1/8" steel octagon outlet box with a cubic capacity of 21.5CI. It features 3/4 and 1/2 IN conduit knockouts and 9 outlets. This octagon box can be used as a junction box or a device box for switches, receptacles, and GFCIs. It is UL E18095 listed and Buy American Compliant.
- Features 3/4 And 1/2 IN Conduit Knockout
- UL E18095 standard
- Has 9 outlets
Product Highlights
The Appleton 4OD-3/4 is a steel octagon outlet box with 9 outlets and 3/4 and 1/2 IN conduit knockouts.
Product Information
Standard Information
-
Brand: APPLETON
-
Manufacturer Part Number: 4OD-3/4
-
Country of Origin: US
Technical Specifications
-
Material: Steel
-
Size: 4 X 4 X 2.125 IN
-
Type: Octagonal Box
-
Brand: Appleton
-
Sub Brand: ETP
-
Knockout Diameter: 3/4 in
-
Depth: 2 1/8 in
-
Diameter: 4 in
-
Cubic Inches: 21.500 in
3
-
Number of Knockouts: 9
-
Knockouts: Yes
-
Catalog Number: 40D34
-
Country of Origin: US
-
Cubic Capacity: 21.5 in
3
-
Height: 0.40 in
-
Length: 11.00 in
-
Standard: UL Standard 514A; UL Listed E2527; Nema OS-1
-
Standards: UL 514A, E2527, RoHS Compliant
-
Width: 8.50 in
-
Mounting: Screw On, Nail On
-
Series: ETP
-
Shape: Octagon
-
Application: Residential and Commercial Applications
-
Cable Entry: Knockouts
-
Enclosure Type: NEMA OS-1
-
Finish: Pre-Galvanized
-
Number of Outlets: 9
-
Capacity: 21.5 cu-in
-
Dimensions: 2-1/8 in D
-
Knockout Size: 1/2 and 3/4 in
