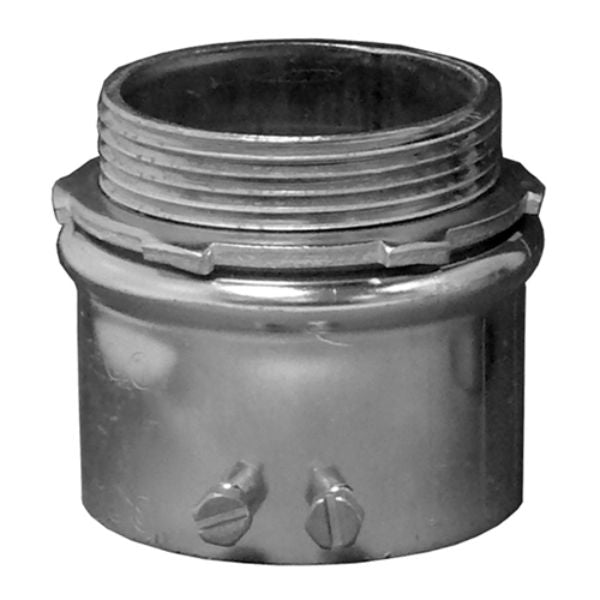

Appleton 4125S Non-Insulated Straight Set Screw Connector 4000S 1-1/4 in

Product Description

The Appleton 4125S is a non-insulated straight set screw connector designed for use with EMT conduit. This connector features durable steel construction and is zinc electroplated for added strength and corrosion resistance. It is suitable for grounding and securing EMT raceways to boxes and enclosures.

• Heavy steel walls for durability
• Concrete tight when tapped for secure connections
• Rated to 90 degrees Celsius

Product Highlights

Use the Appleton 4125S for reliable and secure electrical connections.

Product Information

Standard Information

• Application: For grounding, securing EMT raceways to boxes and enclosures
• Color: Metallic

Technical Specifications

• Diameter: 1.69 inches
• Dimensions: 1-3/4 inches length
• Finish: Zinc Electroplated
• Material: Steel
• Manufacturing Standards: CSA 028507 | C22.2 No. 18.3 | cUL E14895 | NEMA FB-1 | UL 514B File No. E14815 | UL File No. E14895
• Trade Size: 1-1/4 inches
• Type: Non-Insulated Straight
