Appleton 4100ST 4000S Insulated Straight Set Screw Connector, 1 in Trade

Product Description

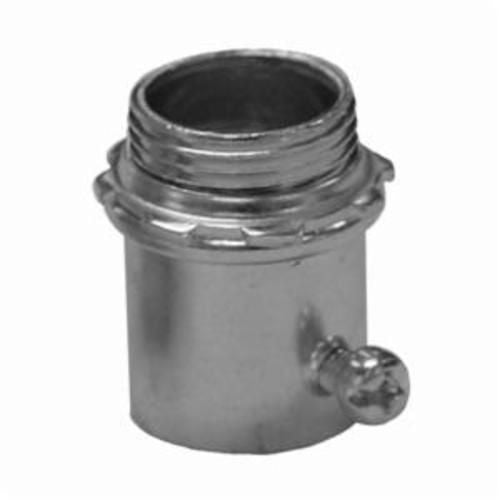

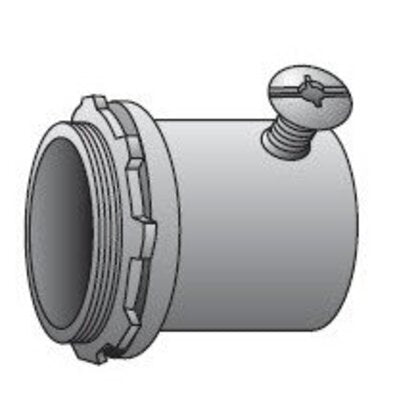

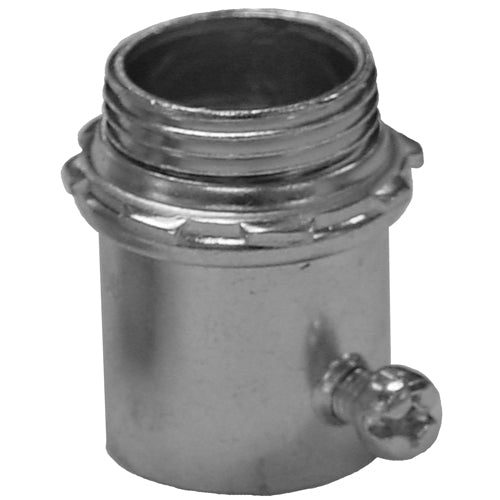

The APPLETON 4100ST 4000S is an insulated straight set screw connector with a 1 in trade size. It is designed for use with EMT conduit and is made of steel with a zinc electroplated finish. It is used to ground and secure EMT raceways to boxes and enclosures.

• Heavy steel walls
• Concrete tight when tapped
• Pre-set/pre-staked set screws

Product Highlights

The connector features a male NPS thread connection and an insulated throat connector rated to 90 deg C.

Product Information

Standard Information

• Brand: APPLETON
• Manufacturer Part Number: 4100ST
• Country of Origin: United States

Technical Specifications

• Color: Metallic
• Diameter: 1.31 in
• Finish: Zinc
• Material: Steel
• Series: 4000S
• Suitable For Use With: EMT Conduit
• Trade Size: 1 in
• Type: Insulated Straight
• Insulation: Insulated
• Mounting Type: Screw
• Application: For grounding and securing EMT raceways to boxes and enclosures
• Standard & Approvals: UL 514B/E14815/E14895 Listed, CSA 028507/C22.2 No 18.3 Certified, cUL E14895 Listed, NEMA FB-1, RoHS Complaint
• Brand: ETP (Appleton/O-Z/Gedney)
• Model: Set-Screw Type Conduit Connector
• MPN: 4100ST
• Country of Origin: United States
• Manufacturer Part Number: 4100ST
• Manufacturer: Appleton
• Product Series: 4000S
• Family Series: Appleton Fittings, 4000S Series
• Description: 1 IN EMT SSCR CONN INSUL STEEL
• Conduit/Cable Type: EMT (Electrical Metallic Tubing)
• Connection Type: Male NPS Thread,Set Screw
• Angle: Straight
• Hub Size: 1 "
• Hub Type: Male NPS Thread
• Grounding: No
• Insulated Throat: Yes
• Jacketed: No
• Composition: Metallic
• Protection Rating: Concrete Tight
• NEMA Rating: NEMA FB1
• Hazardous Location: No
• Approvals: CSA, UL
• NEMA: FB-1
• Size: 1 IN
• TC Connection: Male NPS Thread
• Temperature Rating: 90 C
• Product UPC: 68785584613
