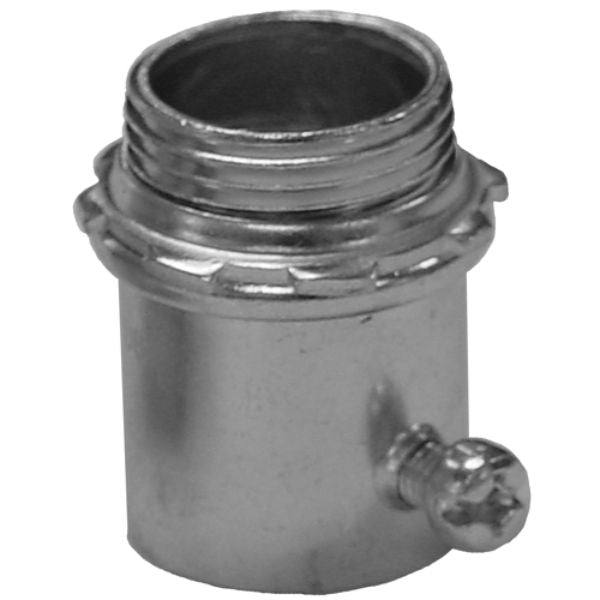

Appleton 4100S ETP 4100S 4000S Non-Insulated Straight Set Screw Connector 1 in EMT Conduit

Product Description

The Appleton ETP 4100S is a non-insulated straight set screw connector designed for use with EMT conduit. The model number is 4100S. This connector is built from heavy steel for enhanced durability. It provides a reliable connection for securing EMT raceways to boxes and enclosures.

• Heavy steel walls ensure durability.
• Concrete tight when tapped.
• Pre-staked set screws for a strong hold.

Product Highlights

This connector features a male hub NPS thread connection, making installation straightforward. It is rated for a temperature of ninety degrees Celsius and includes three-way combination screws.

Product Information

Standard Information

• Brand: Appleton
• Part Number: N1561

Technical Specifications

• Application: For grounding, securing EMT raceways to boxes and enclosures
• Color: Metallic
• Country of Origin: IN
• Diameter: 1.31 in
• Dimensions: 1.19 in L
• Finish: Zinc Electroplated
• Material: Steel
• Manufacturing Standards/Approvals: RoHS Compliant, CSA 028507, C22.2 No. 18.3, cUL E14895, NEMA FB-1, UL 514B File No. E14815, UL File No. E14895
• Package Height: 0.2 in
• Package Length: 7.6 in
• Package Weight: 0.2 lb
• Package Width: 6.0 in
• Series: 4000S
• Suitable For Use With: EMT Conduit
• Trade Size: 1 in
• Type: Non-Insulated Straight
