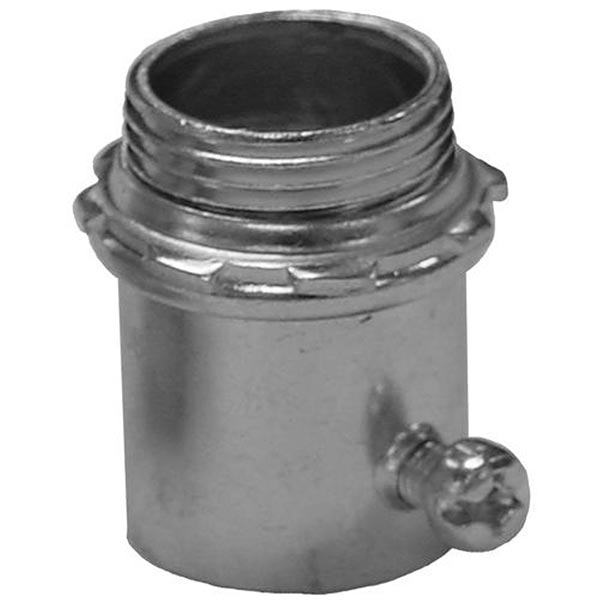

Appleton 4075S ETP Non-Insulated Straight Set Screw Connector 3/4 in Trade

Product Description

The Appleton 4075S is a non-insulated straight set screw connector designed for EMT conduit applications. This connector secures EMT raceways to boxes and enclosures and is made from heavy-duty steel to ensure durability. It features a zinc electroplated finish, which offers corrosion resistance and a clean appearance. The 4075S is built to meet industry standards, making it a reliable choice for electrical installations.

• Designed for grounding EMT raceways
• Pre-set and pre-staked set screws
• Suitable for use with EMT conduit

Product Highlights

This connector is ideal for both residential and commercial electrical work where EMT conduit is used for routing wiring.

Product Information

Standard Information

• Brand: Appleton
• Part Number: 4075S

Technical Specifications

• Application: For grounding, securing EMT raceways to boxes and enclosures
• Color: Metallic
• Country of Origin: IN
• Diameter: 1.08 in
• Dimensions: 1.09 in L
• Finish: Zinc Electroplated
• Material: Steel
• Manufacturing Standards/Approvals: RoHS Compliant, CSA 028507, C22.2 No. 18.3, cUL E14895, NEMA FB-1, UL 514B File No. E14815, UL File No. E14895
• Series: 4000S
• Suitable For Use With: EMT Conduit
• Trade Size: 3/4 in
• Type: Non-Insulated Straight
