Appleton 4050ST 4000S Insulated Straight Set Screw Connector, 1/2 in Trade

Product Description

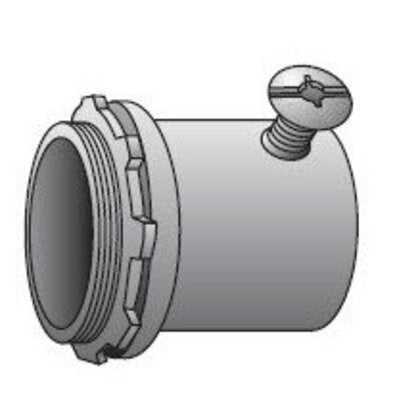

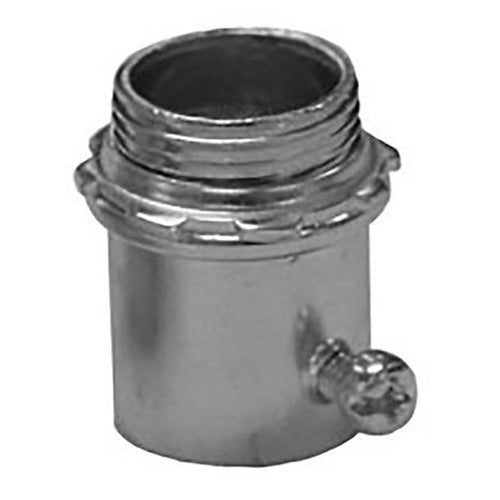

The APPLETON 4050ST 4000S insulated straight set screw connector is for use with EMT conduit. It is made of steel with a zinc electroplated finish. It is used to ground and secure EMT raceways to boxes and enclosures. The connector features a male NPS threaded hub and an insulated throat.

• Heavy steel walls
• Concrete tight when tapped
• Pre-set/pre-staked set screws

Product Highlights

The APPLETON 4050ST connector is suitable for use with EMT conduit. It features a male NPS thread connection and an insulated throat connector rated to 90 degrees C.

Product Information

Standard Information

• Brand: APPLETON
• Manufacturer Part Number: 4050ST

Technical Specifications

• Color: Metallic
• Diameter: 1-1/32 in
• Finish: Zinc Plated
• Material: Steel
• Series: 4000S
• Suitable For Use With: EMT Conduit
• Trade Size: 1/2 in
• Type: Insulated Straight
• Manufacturer Part Number: 4050ST
• Manufacturer: Appleton
• Product Series: 4000S
• Description: 1/2 IN EMT SSCR CONN INSUL STL
• Conduit/Cable Type: EMT (Electrical Metallic Tubing)
• Connection Type: Set Screw
• Angle: Straight
• Hub Size: 1/2 "
• Hub Type: Male NPS Thread
• Grounding: No
• Insulated Throat: Yes
• Jacketed: No
• Composition: Metallic
• Protection Rating: Concrete Tight
• NEMA Rating: NEMA FB1
• Hazardous Location: No
• Approvals: CSA, UL
• Insulation: Insulated
• Applications: To ground and secure EMT Raceways to boxes and enclosures
• NEMA: FB-1
• Size: 0.5 IN
• TC Connection: Male NPS Thread
• Temperature Rating: 90 C
• Brand: Appleton
• Sub Brand: ETP
• Product UPC: 68785584603
• Mounting Type: Screw
• Application: For grounding and securing EMT raceways to boxes and enclosures
• Standard & Approvals: UL 514B/ E14895/E14815 Listed, CSA 028507/C22.2 No 18.3 Certified, cUL E14895 Listed, RoHS Complaint
