Appleton 370FSA 1 In FM7 Cover Alum

Product Description

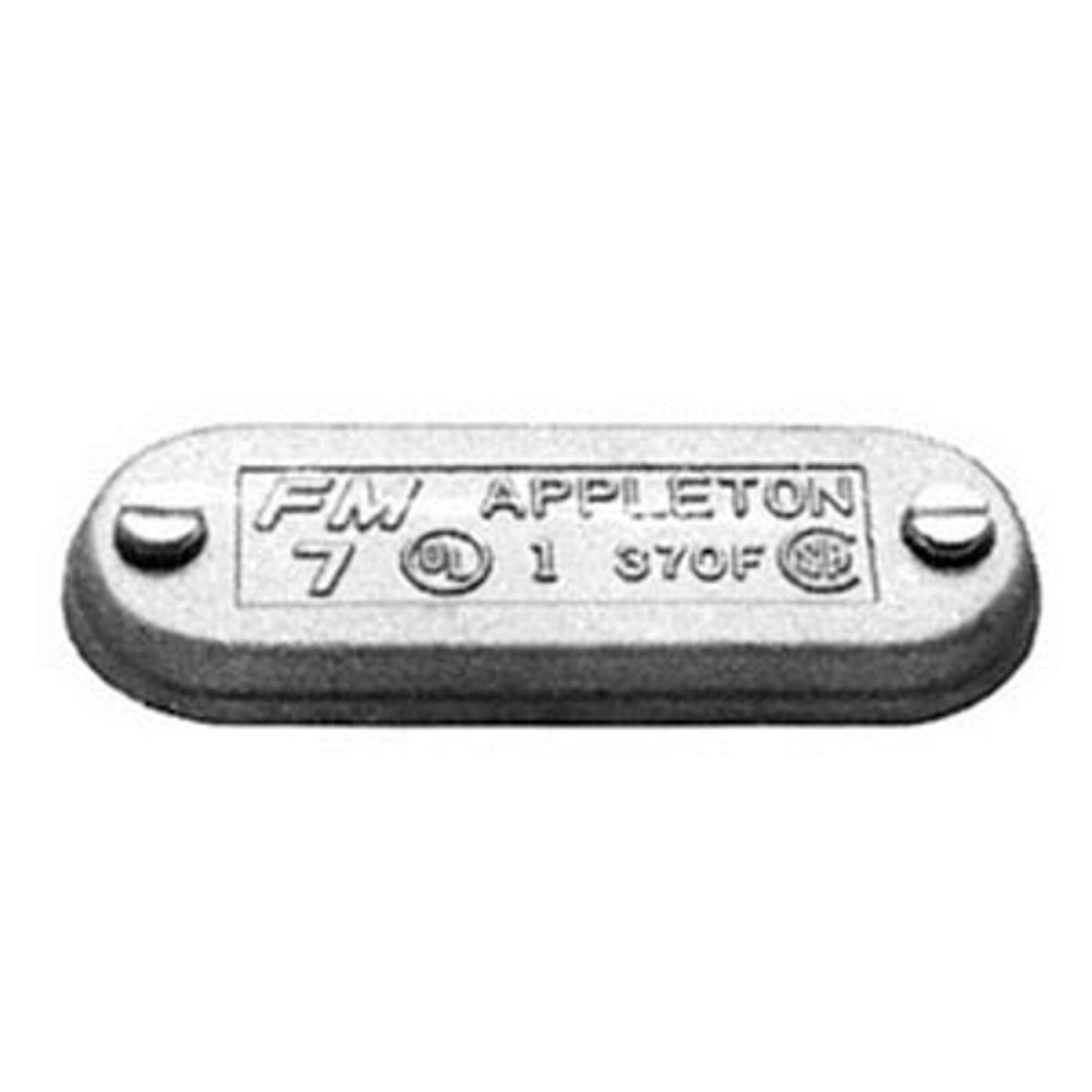

The Appleton 370FSA is a one-inch FM7 Wedge-Lok Blank Clip Cover designed for use with conduit outlet bodies. It is made from cast aluminum and features a screw-in mounting system. This cover is coated with an epoxy powder finish and complies with various safety standards such as UL 514A, UL 514B, and CSA C22.2 No. 18.3.

• Hub Size: 1 inch
• Material: Cast Aluminum
• Mounting Type: Screw-In

Product Highlights

This product is suitable for wet locations and is built for durability and ease of installation.

Product Information

Standard Information

• Manufacturer: Appleton Electric
• Catalog Number: 370FSA

Technical Specifications

• Form: 7
• Application: For FM7 Unilet Conduit Outlet Bodies
• Finish: Epoxy Powder Coat
• Special Features: Unique Wedge-Lok clip cover design allows easy removal without damaging the conduit body; approved for use in wet locations; stainless steel screws; wiring capacity: 1.3 CU-IN as per NEC 314.16(A).
• Standards: UL 514A, UL 514B, UL File Number E2527, CSA C22.2 No. 18.3, CSA 065183, NEMA FB-1
