Appleton 322-R Reducing Bushing 1 X 3/4 Inch

Product Description

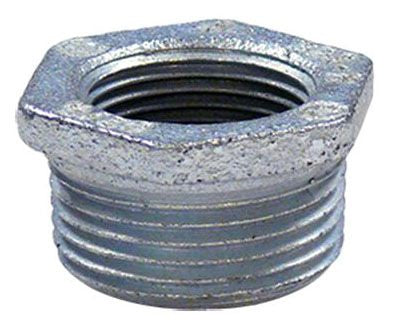

The APPLETON 322-R is a threaded reducing bushing designed to adapt a 1-inch conduit or fitting opening down to a 3/4-inch connection. Reducing bushings like this are standard fittings in electrical conduit systems, used to transition between two different trade sizes within a raceway or enclosure. The 322-R is a compact, lightweight fitting at 0.100 pounds, suited for use in commercial and industrial electrical installations. Licensed electricians and electrical contractors install this fitting during conduit assembly and panel or enclosure work.

This reducing bushing is applied in electrical conduit installations where a 1-inch hub, knockout, or coupling must accept a 3/4-inch conduit run. Typical install scenarios include pull boxes, junction boxes, panelboards, and conduit bodies. The fitting threads directly into the larger opening, providing a secure, continuous raceway pathway at the reduced trade size.

Key Features

• Reduces a 1-inch conduit connection to 3/4-inch trade size
• Threaded design for secure, tool-assisted installation into standard conduit fittings and enclosures
• Compact profile at 0.080 inches height for use in tight enclosure knockouts
• Lightweight at 0.100 pounds, minimizing added load on enclosures

Compatibility

Designed as an OEM-style replacement and standard trade fitting for use in 1-inch to 3/4-inch threaded conduit applications in commercial and industrial electrical raceways.

Installation Notes

Installation of reducing bushings is performed by licensed electricians in accordance with NEC requirements for conduit systems. De-energize all circuits and confirm lockout/tagout procedures are followed before working inside any enclosure or panel. Thread the bushing into the larger opening by hand first, then tighten with an appropriate wrench or strap wrench to avoid damaging the fitting. Do not overtighten or force misaligned threads.

Technical Specifications

• Inlet Trade Size: 1 inch
• Outlet Trade Size: 3/4 inch
• Height: 0.080 inches
• Package Length: 6.900 inches
• Package Width: 5.100 inches
• Weight: 0.100 pounds
• UPC: 78312678510

Standard Information

• Brand: APPLETON
• Manufacturer Part Number: 322-R
