Appleton 28-200 2 in Malleable Iron Conduit Connector

Product Description

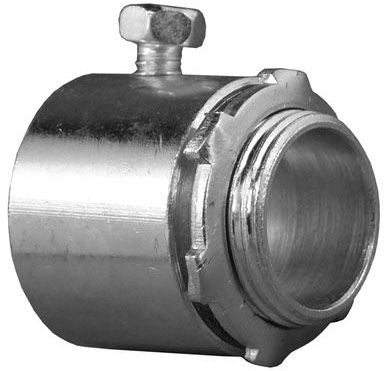

The APPLETON 28-200 is a 2-inch malleable iron set screw conduit connector designed for securing rigid metal conduit or IMC to an enclosure, panel, or junction box. This connector provides a reliable mechanical connection at conduit entry points and is constructed from malleable iron for durability in demanding electrical installations. The set screw design allows tool-tightened engagement without threading the conduit end into a hub, making it a common choice for commercial and industrial wiring work. Licensed electricians and electrical contractors install this fitting as part of conduit raceway systems.

This connector is suited for use in commercial, industrial, and heavy-duty residential electrical installations where a 2-inch conduit entry is required. It is typically installed at enclosure knockouts, panelboards, junction boxes, and similar electrical enclosures. The malleable iron construction handles the mechanical stress common in conduit systems routed through walls, ceilings, and equipment rooms.

Key Features

• 2-inch trade size fits standard 2-inch rigid metal conduit and IMC
• Malleable iron construction provides strength and resistance to mechanical damage
• Set screw design secures conduit without threading, simplifying installation
• Compatible with standard knockout openings on electrical enclosures and panels

Compatibility

Designed as an OEM-style replacement or direct-use fitting for 2-inch rigid metal conduit and IMC conduit systems in standard electrical enclosure applications.

Installation Notes

Installation should be performed by a licensed electrician in accordance with the National Electrical Code (NEC). De-energize and lock out the panel or enclosure before beginning work. Use a screwdriver or hex key to tighten the set screw firmly against the conduit after seating the connector in the knockout. Do not overtighten the set screw in a way that deforms the conduit wall or compromises the mechanical connection.

Technical Specifications

• Trade Size: 2 inches
• Material: Malleable Iron
• Connection Type: Set Screw
• UPC: 78312672150

Standard Information

• Brand: APPLETON
• Manufacturer Part Number: 28-200
