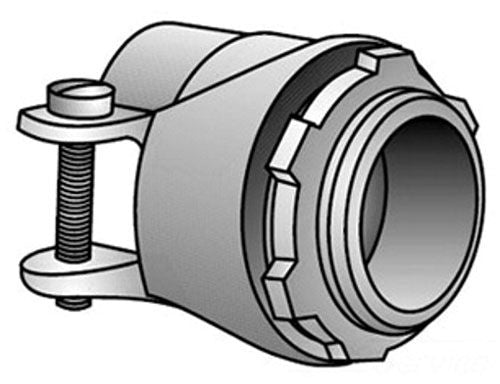

Appleton 24-34 3/4 in Malleable Squeeze Flex Conduit Connector

Product Description

The APPLETON 24-34 is a 3/4 inch malleable iron squeeze-type flexible conduit connector designed to terminate flexible metal conduit to an electrical enclosure, junction box, or panel knockout. The squeeze-type clamping mechanism secures the conduit without threading, allowing for fast field installation. Malleable iron construction provides durability in commercial and industrial wiring applications. Licensed electricians and electrical contractors install this fitting as part of branch circuit and equipment wiring assemblies where flexible conduit terminations are required.

This connector is suited for use in commercial construction, industrial facilities, and equipment wiring applications where flexible metal conduit must be terminated at an enclosure. It is appropriate for use in dry locations and is a standard fitting type for equipment hookups, motor connections, and panel terminations requiring a flexible whip. The 3/4 inch trade size accommodates standard flexible metal conduit of the same trade size.

Key Features

• 3/4 inch trade size fits standard flexible metal conduit
• Squeeze-type clamping design allows tool-free or minimal-tool conduit insertion
• Malleable iron body provides mechanical strength and impact resistance
• Compact profile at 0.150 inches thickness for use in tight enclosure entries
• Lightweight at 0.190 pounds for ease of handling during installation

Compatibility

Designed as an OEM-style replacement and standard trade fitting for 3/4 inch flexible metal conduit termination applications in commercial and industrial electrical installations.

Installation Notes

Installation should be performed by a licensed electrician in accordance with the National Electrical Code (NEC) and applicable local codes. De-energize and lock out the circuit or equipment before making conduit connections at any enclosure or panel. Insert the flexible conduit into the connector until it seats fully before tightening the squeeze clamp. Do not over-drive the clamping mechanism, as malleable iron fittings can crack under excessive force.

Technical Specifications

• Trade Size: 3/4 inch
• Material: Malleable Iron
• Connection Type: Squeeze Type
• Package Dimensions (L x W x H): 7.700 x 5.900 x 0.150 inches
• Weight: 0.190 pounds
• UPC: 78312671225

Standard Information

• Brand: APPLETON
• Manufacturer Part Number: 24-34
