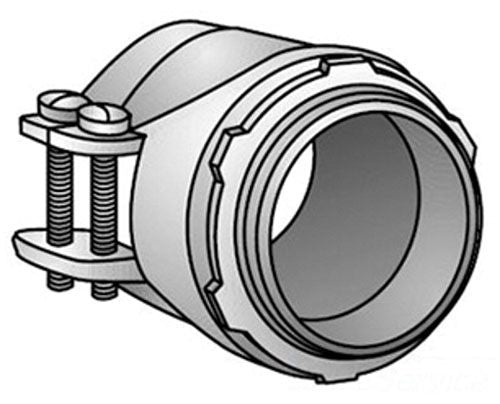

Appleton 24-150 Malleable Iron Squeeze Flex Conduit Connector

Product Description

The APPLETON 24-150 is a 1-1/2 inch malleable iron squeeze-type flexible conduit connector designed for securing flexible metal conduit to electrical enclosures, junction boxes, and conduit bodies. The squeeze-style clamping mechanism allows fast, tool-free tightening without a locknut in many applications, reducing installation time on commercial and industrial wiring jobs. Malleable iron construction provides the mechanical durability required for exposed and semi-protected installations. This connector is a standard fitting installed by licensed electricians on branch circuit and equipment wiring runs where flexible conduit terminations are required.

The 24-150 is suited for use in commercial, industrial, and residential electrical installations where 1-1/2 inch flexible metal conduit must be terminated securely at a box or enclosure knockout. Typical applications include equipment connections, motor wiring drops, and panel terminations where a degree of vibration isolation or positional flexibility is needed at the conduit end. The squeeze design speeds up high-volume rough-in work without sacrificing a secure mechanical connection.

Key Features

• 1-1/2 inch trade size fits standard flexible metal conduit of the same size
• Malleable iron body for impact resistance and long service life
• Squeeze-type clamp mechanism enables fast, secure termination
• Compact profile suitable for tight knockout clearances
• Consistent with standard electrical enclosure knockout dimensions

Compatibility

Designed as an OEM-style replacement and standard-fit connector for 1-1/2 inch flexible metal conduit terminations at electrical enclosures and junction boxes.

Installation Notes

Installation should be performed by a licensed electrician in accordance with NFPA 70 (National Electrical Code) requirements for flexible conduit terminations. De-energize all circuits and lock out the panel before working inside any enclosure. Insert the conduit fully into the connector before tightening the squeeze clamp to ensure a secure mechanical grip. Do not overtighten to the point of deforming the conduit jacket.

Technical Specifications

• Trade Size: 1-1/2 inches
• Material: Malleable Iron
• Connector Type: Squeeze Flexible Conduit Connector
• Package Dimensions (L x W x H): 6.8 inches x 5.1 inches x 0.8 inches
• Weight: 0.76 pounds
• UPC: 78312671245

Standard Information

• Brand: APPLETON
• Manufacturer Part Number: 24-150
