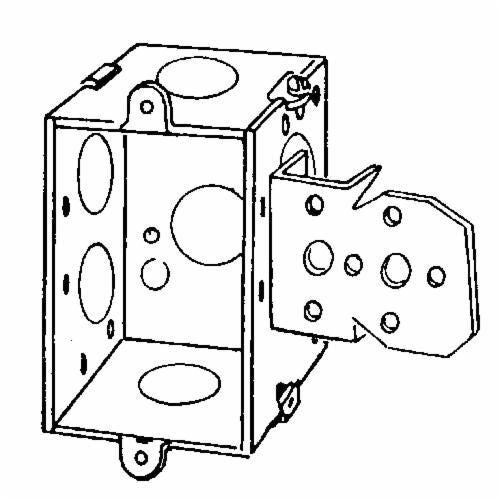

Appleton 222NL Gangable Square Corner Switch Box 12.5 cu-in

Product Description

The APPLETON 222NL is a gangable square corner switch box with knockout. Constructed of steel, it has a capacity of 12.5 cu-in and 7 knockouts. It is suitable for use in two-hour fire rated walls and for bonding without additional bonding means in circuits above or below 250 VAC.

• Single and double gang metallic outlet and switch boxes are acceptable for use in two-hour fire rated walls
• Boxes with concentric or eccentric knockouts are suitable for bonding without any additional bonding means where used in circuits above or below 250 VAC
• All concentric or eccentric knockouts are 1/2 to 3/4 in combinations

Product Highlights

This steel gangable square corner switch box features 7 knockouts and is suitable for various applications.

Product Information

Standard Information

• Brand: APPLETON
• Manufacturer Part Number: 222NL

Technical Specifications

• Knockout Size: (4) 1/2 in Side, (2) 1/2 in End, 1/2 in Bottom
• Material: Steel
• Mounting Type: Panel
• Number of Knockouts: 7
• Cable Entry: Knockout
• Capacity: 12.5 cu-in
• Catalog ID: NEE222NL
• Enclosure Type: NEMA FB-1/OS-1
• Finish: Pre-Galvanized
• Type: Gangable Square Corner
• Standard & Approvals: ARRA, Buy American Act and RoHS Compliant, UL Standard 514A; UL Listed E2527
• Brand: Appleton
• Sub Brand: ETP
• Product UPC: 68785576070
• Certifications and Compliance: BAA | Buy American Compliant
