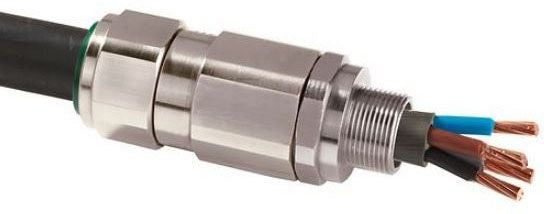

Appleton 20ST35 M20 Cable Gland Cmp

Product Description

Appleton 20ST35 M20 Cable Gland Cmp is designed for secure connections in hazardous areas. The product, made by Appleton, meets various safety certifications. This cable gland is ideal for armored cables and provides robust sealing solutions with a unique compensating displacement seal system.

• Material: Nickel plated brass
• Thread size: M20
• Approval: UL 2225, DNV, CSA

Product Highlights

This product offers mechanical cable retention and maintains earth continuity. It is compatible with various armored cables.

Product Information

Standard Information

• Brand: Appleton
• Manufacturer: Appleton Electric

Technical Specifications

• Type: T3 Series Cable Gland Connector
• Size: M20 (20S)
• Conductor Range: Inner: 0.24 - 0.46 inches, Outer: 0.37 - 0.63 inches
• Material: Brass
• Finish: Nickel
• Connection: NPT
• Operating Temperature: -76 to 266 degrees Fahrenheit
• Protection Rating: NEMA 3/4/4X, IP66/67/68
