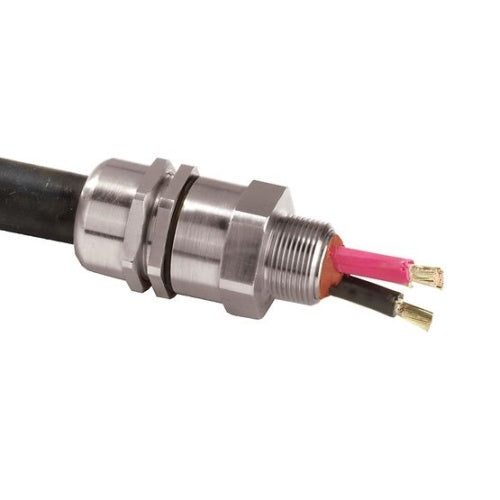

Appleton 20LPX0505 Cable Gland Connector 1/2 inches NPT

Product Description

The Appleton 20LPX0505 cable gland connector, from the PXSS2K series, is suitable for unarmored, tray, and shipboard cables. This flameproof Class I cable connector provides an environmental seal on the cable outer jacket and an explosionproof compound barrier seal around the cable inner cores. Features a standard 1/2 in NPT connection.

• Provides an environmental seal on the cable outer jacket and an explosionproof compound barrier seal around the cable inner cores
• Sealing technique: displacement seal concept
• Sealing area: inner compound barrier and outer sheath

Product Highlights

The Appleton cable gland is ideal for creating a secure, flameproof connection for various cable types in demanding environments.

Product Information

Standard Information

• Brand: APPLETON
• Manufacturer Part Number: 20LPX0505

Technical Specifications

• Brand: Appleton
• Part Number #: 20LPX0505
• SKU #: 2442402
• Cable Openings: 0.39 to 0.63 in
• Finish: Nickel Plated
• Series: PXSS2K
• Temperature Rating (Degrees F): -76 to 185 deg F
• Trade Size: 20L
• Cable type: Unarmored/Tray/Shipboard/SO
• Connection type: 1/2 in NPT
• Manufacturer Name: Emerson Electric
• UNSPSC: 39121431
• Material: Brass
• Diameter Range: 0.260 - 0.550 in
• Hub Size: 1/2 NPT
• Number of Cables: 1
• Cable Style: Round
• Angle: Straight
• NEMA Rating: NEMA 4X
• Split Frame: No
• Cable Diameter Range: 0.39-0.63 "
• Type: Bushing Grip
• Composition: Metallic
• Hazardous Location: Yes
• Approvals: ATEX, CSA, UL
• Protection Rating: IP66, IP67, IP68
• Comments: Flameproof, Unarmored, Tray, Shipboard and SO Type Cable.
• Component: Cable Connector
• Manufacturer: Appleton
