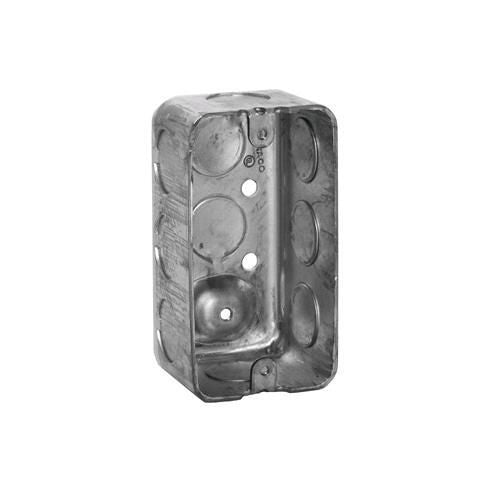

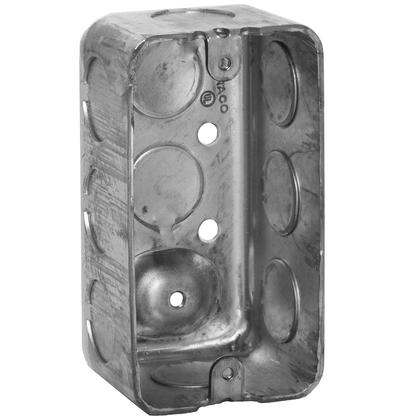

Appleton 181-1/2 Handy Box 4-1/8X2-3/8X2-1/4

Product Description

The APPLETON 181-1/2 handy box is suitable as a junction box or a device box for switches, receptacles, and GFCIs. Constructed of durable materials, it ensures easy installation and quality for any wiring job. It has a capacity of 18.3 cu-in and dimensions of 4-1/8 in H x 2-3/8 in W x 2-1/4 in D.

• Drawn construction
• 1/2 in Knockout Size
• Threaded Mounting Type

Product Highlights

The Appleton handy box is recognized for its quality, selection, and ease of installation. It is UL E18095 listed and RoHS compliant.

Product Information

Standard Information

• Brand: APPLETON
• Manufacturer Part Number: 181-1/2

Technical Specifications

• Knockout Size: 1/2 in
• Material: Steel
• Mounting Type: Threaded
• Standard & Approvals: UL E18095, RoHS Compliant
• Dimensions: 4-1/8 in H x 2-3/8 in W x 2-1/4 in D
• Cable Entry: Knockouts
• Capacity: 18.3 cu-in
• Series: 181
• Number of Outlets: 10
• Number of Knockouts: 10
• Main Category: Electrical Equipment
• Brand: Appleton
• Electrical Boxes, Conduit, Strut, and Raceway: Boxes and Cover Plates
• Boxes and Cover Plates: Electrical Boxes
• Standard Materials and Finishes: AISI/SAE 1008, pre-galvanized G60, 183.09 g/sq m (0.60 oz/sq ft), 0.0625 minimum thickness
• NEC and CEC Certifications and Compliances: Listed for Ordinary Locations
• Knockout Diameter: 1/2 in
• Mounting: Screw On, Nail On
• Depth: 2 1/4 in
• Cubic Inches: 18.300 in ³
