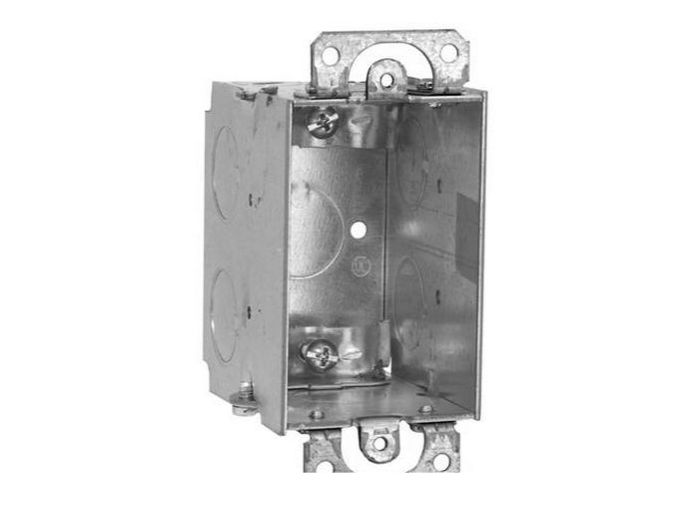

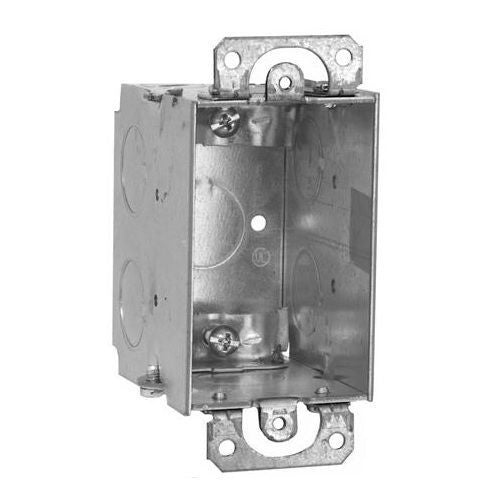

Appleton 173FHB Gangable Square Corner Switch Box 12.5 cu-in

Product Description

The Appleton 173FHB Gangable Square Corner Switch Box is made of steel with a 12.5 cu-in capacity and 9 knockouts. It is suitable for use with armored cable (AC), metal clad cable (MCI, MCI-A, MCS, MCC), and flexible metal conduit. The box is pre-galvanized and compliant with ARRA, Buy American Act, and RoHS.

• Acceptable for use in two-hour fire rated walls.
• Suitable for bonding without any additional bonding means where used in circuits above or below 250 VAC.
• Lox Box™ supports and adjustable plaster ears support GFCI and decorative cover plates

Product Highlights

The Appleton Gangable Square Corner Switch Box is a durable and versatile solution for electrical installations, offering easy mounting and broad compatibility.

Product Information

Standard Information

• Brand: APPLETON
• Manufacturer Part Number: 173FHB

Technical Specifications

• Material: Steel
• Number of Knockouts: 9
• Cable Entry: Knockout
• Enclosure Type: NEMA FB-1/OS-1
• Finish: Pre-Galvanized
• Standard & Approvals: ARRA, Buy American Act and RoHS Compliant, UL Standard 514A; UL Listed E2527
• Type: Gangable Square Corner
• Mounting Type: Screw-On/Nail-On
• Knockout Size: (4) 1/2 in Side, (4) 21/32 in End, (1) 1/2 in Bottom
• Application: For use with armored cable (AC), metal clad cable (MCI, MCI-A, MCS, MCC), flexible metal conduit
• Capacity: 12.5 cu-in
• Dimensions: 3 in H x 2 in W x 2-1/2 in D
• Manufacturer Part Number: 173FHB
• Manufacturer: Appleton
• Product Series: Switch Boxes
• Family Series: Appleton Electrical Boxes, Switch Boxes Series
• Description: Hardware
• Number of Gangs: 1
• Clamp Type: CL-13
• Approvals: UL
• Net Weight: 0.63 lbs
• Gross Weight: 0.63 lbs
• Knockout Diameter: 1/2 in
• Depth: 2 1/2 in
• Cubic Inches: 12.500 in ³
