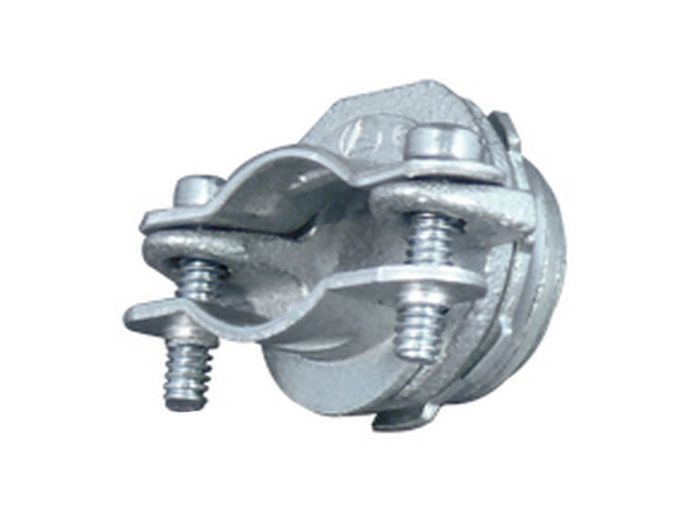

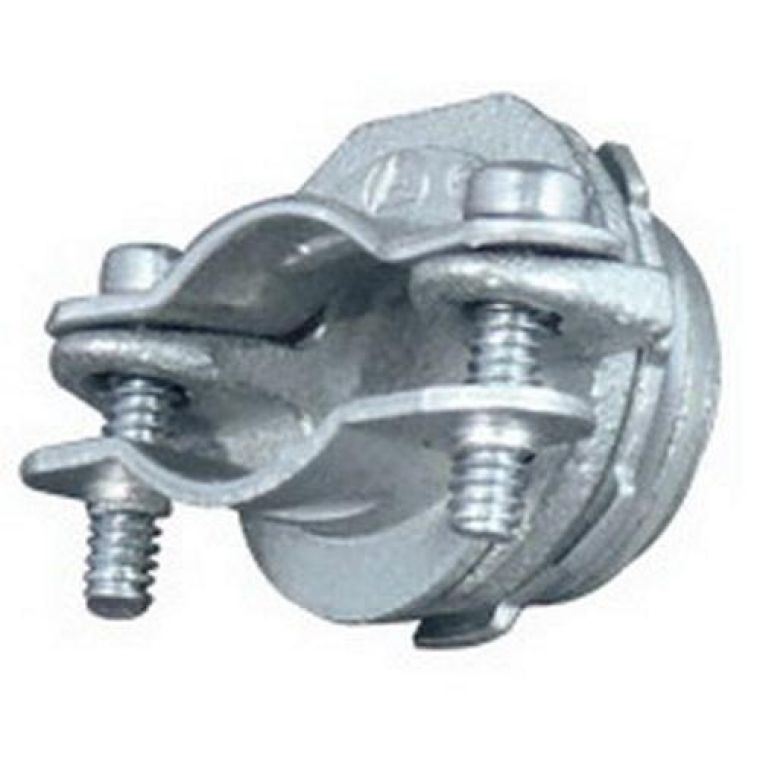

Appleton 15236 Non-Metallic Sheathed Cable/Service Entrance Cable Connector 1-1/2 inches

Product Description

The APPLETON 15236 non-metallic sheathed cable and service entrance cable connector is designed to ground and secure nonmetallic sheathed and service entrance cable to boxes and enclosures. It is constructed from malleable iron and fits cable ranging from 0.81 to 1.59 inches.

• Made of Malleable Iron
• Connects nonmetallic-sheathed cable (NM-B, also known as Romex) into enclosures and junction boxes
• Standard connectors are furnished with locknut and male hub threads (NPS)

Product Highlights

This connector is suitable for terminating nonmetallic-sheathed cables into enclosures and junction boxes. It is UL Listed and CSA Certified.

Product Information

Standard Information

• Brand: APPLETON
• Manufacturer Part Number: 15236
• Country of Origin: United States

Technical Specifications

• Material: Malleable Iron
• Diameter: 1 1/2 in
• Brand: Appleton Electric
• Connection Type: Screw
• Country of Origin: United States
• Manufacturer Part Number: 15236
• Manufacturer: Appleton
• Family Series: Appleton Fittings
• Description: 1-1/2 IN NM SHEATHED/SEC CONN
• Conduit/Cable Type: Non-Metallic Sheathed Cable
• Angle: Straight
• Trade Size: 1-1/2 "
• Hub Type: Male NPS Thread
• Grounding: No
• Insulated Throat: No
• Jacketed: No
• Composition: Metallic
• NEMA Rating: NEMA FB1
• Hazardous Location: No
• Approvals: CSA, UL
• Component: Sheathed Connector
• Cable Diameter: 0.84" to 1.59"
• Cable System: NM-B
• Cable Type: NMC
• Connection Orientation: Straight
• Fitting Type: Connector
• Includes: Locknut
• Specifications Met: CSA 065178 C22.2 No. 18.3, UL 514B File No. E23237
• Thread Size: 1-1/2"
• Thread Standard: NPT
