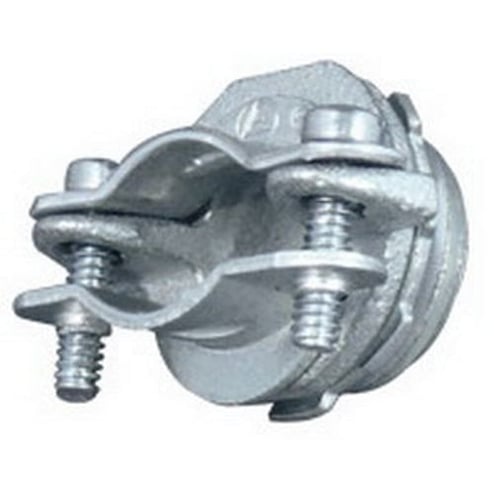

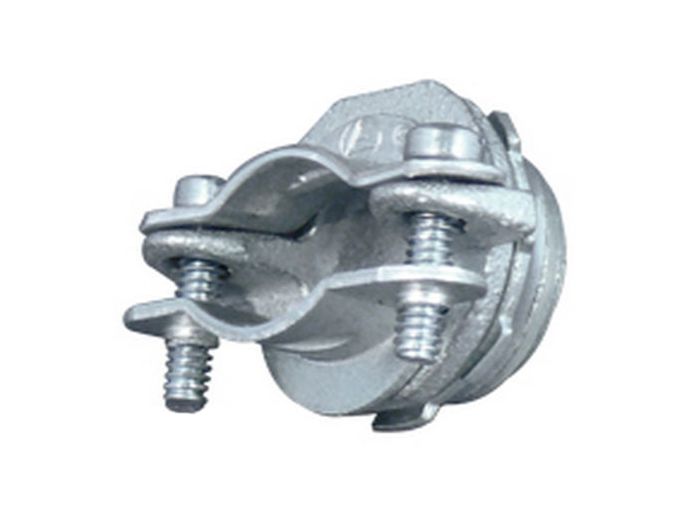

Appleton 15234 Non-Metallic Sheathed Cable/Service Entrance Cable Connector 1 inches

Product Description

The APPLETON 15234 Non-Metallic Sheathed Cable and Service Entrance Cable Connector is used to ground and secure nonmetallic sheathed and service entrance cable to boxes and enclosures. It features a clamp connection and male NPS thread hub type. Made of malleable iron, it is suitable for use in NEMA FB1 applications.

• Made of Malleable Iron
• Connection Type: Clamp
• Male hub threads NPS

Product Highlights

The APPLETON 15234 connector ensures secure grounding for nonmetallic sheathed and service entrance cables in various enclosures.

Product Information

Standard Information

• Brand: APPLETON
• Manufacturer Part Number: 15234
• Country of Origin: MX

Technical Specifications

• Material: Malleable Iron
• Diameter: 1 in
• Manufacturer Part Number: 15234
• Manufacturer: Appleton
• Family Series: Appleton Fittings
• Description: Hardware
• Conduit/Cable Type: Non-Metallic Sheathed Cable
• Connection Type: Clamp
• Angle: Straight
• Trade Size: 1 "
• Hub Type: Male NPS Thread
• Grounding: No
• Insulated Throat: No
• Jacketed: No
• Composition: Metallic
• NEMA Rating: NEMA FB1
• Hazardous Location: No
• Approvals: CSA, UL
• Application: For Used To Ground And Secure Nonmetallic Sheathed And Service Entrance Cable to Boxes And Enclosures
• Conductor Range: 1/2 - 0.97
• Country of Origin: MX
• Special Features: Male hub threads NPS
• Standard: UL 514B, UL Listed: E23237, CSA Standard: C22.2 No. 18.3, CSA Certified: 065178, NEMA FB-1
• Sub_Brand: Appleton
• Type: Non-Metallic
• Brand: Appleton Electric
