Appleton 15233-DC 3/4 inches Nm Sheathed/sec

Product Description

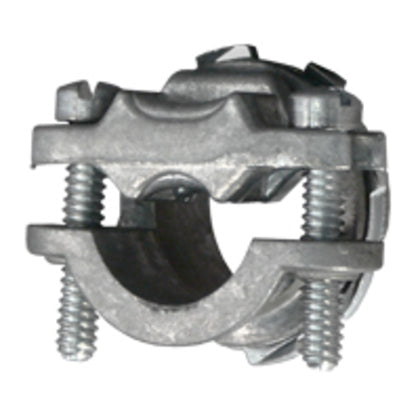

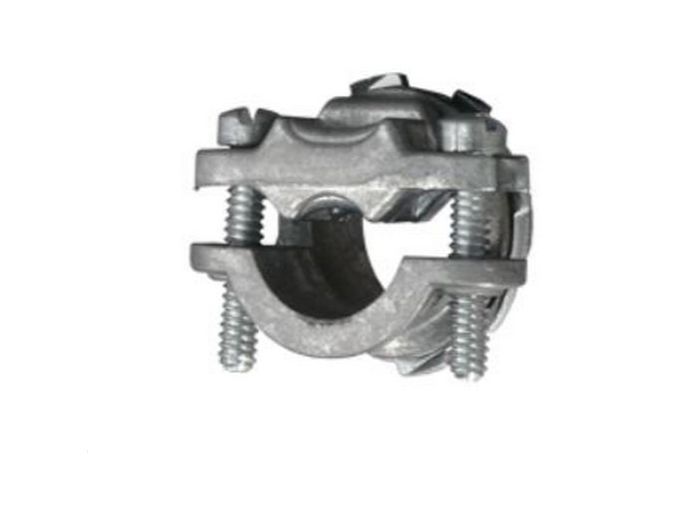

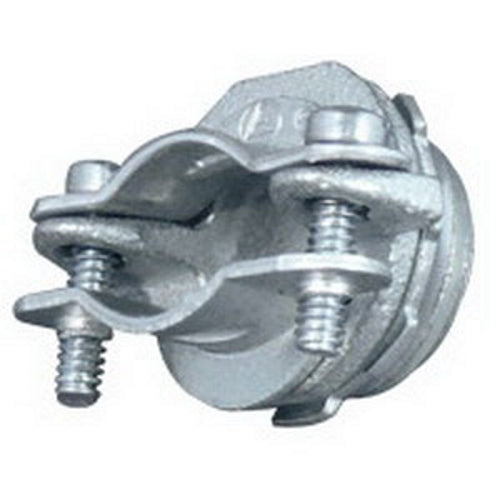

The APPLETON 15233-DC is a 3/4" conduit connector designed to ground and secure nonmetallic sheathed and service entrance cables to boxes and enclosures. It features armored cable X flexible metal conduit connection and a die-cast zinc construction. This connector is UL 514B listed and UL Listed E23237 certified.

• Used To Ground And Secure Nonmetallic Sheathed And Service Entrance Cable to Boxes And Enclosures
• Low profile head is designed to prevent snags on uneven surfaces and easier to pull through bulkheads.
• Non-magnetic stainless steel locking device insures both maximum strength and the right tightness every time.

Product Highlights

This 3/4" conduit connector is ideal for grounding and securing cables in various electrical applications, ensuring a reliable and safe connection.

Product Information

Standard Information

• Brand: APPLETON
• Manufacturer Part Number: 15233-DC
• Country of Origin: IN

Technical Specifications

• Size: 3/4 IN
• Type: High Performance
• Brand: Appleton
• Material: Zinc Die Cast
• Product UPC: 78138178045
• 12-Digit UPC: 781381780452
• Applications: For Used To Ground And Secure Nonmetallic Sheathed And Service Entrance Cable to Boxes And Enclosures
• TC Connection: Armored Cable X Flexible Metal Conduit
• ARRA Compliant: N
• Bundle Diameter: 0.138 to 1.77 in ; 3.5 to 45 mm in
• Buy American Compliant: N
• Catalog Number: 15233DC
• Color: Ivory
• Conductor Range: 1/4 - 0.81 IN
• Connection: Armored Cable X Flexible Metal Conduit
• Country of Origin: IN
• EU RoHS Indicator: N
• Flammability: UL 94 V-2
• Lock Mechanism: Stainless Steel Barb
• Standard: UL 514B, UL Listed: E23237, CSA Standard: C22.2 No. 18.3, CSA Certified: 065178, NEMA FB-1
• Standards: UL 514B Listed, UL E23237 Listed, CSA C22.2 No. 18.3, CSA Certified 065178, NEMA FB-1
• Tensile Strength: 50 pounds ; 222 newtons lb
• Thickness: 0.043 in ; 1.09 mm
• UNSPSC: 39121419
• UPC 11: 78138178045
• UPC 12: 781381780452
• Manufacturer: Appleton
• Diameter: 3/4 in
• Manufacturer Part Number: 15233DC
• Family Series: Appleton Fittings
• Description: 3/4 IN NM SHEATHED/SEC CONN
• Conduit/Cable Type: Service Entrance Cable
• Connection Type: Clamp
• Angle: Straight
• Trade Size: 3/4 "
• Hub Type: Male NPS Thread
• Grounding: No
• Insulated Throat: No
• Jacketed: No
• Composition: Metallic
• NEMA Rating: NEMA FB1
• Hazardous Location: No
• Approvals: CSA, UL
• Catalog #: 15233DC
• Standard Electric Part #: 35496
