Appleton 132AP-SPL Square Corner Switch Box 30.3 cu-in

Product Description

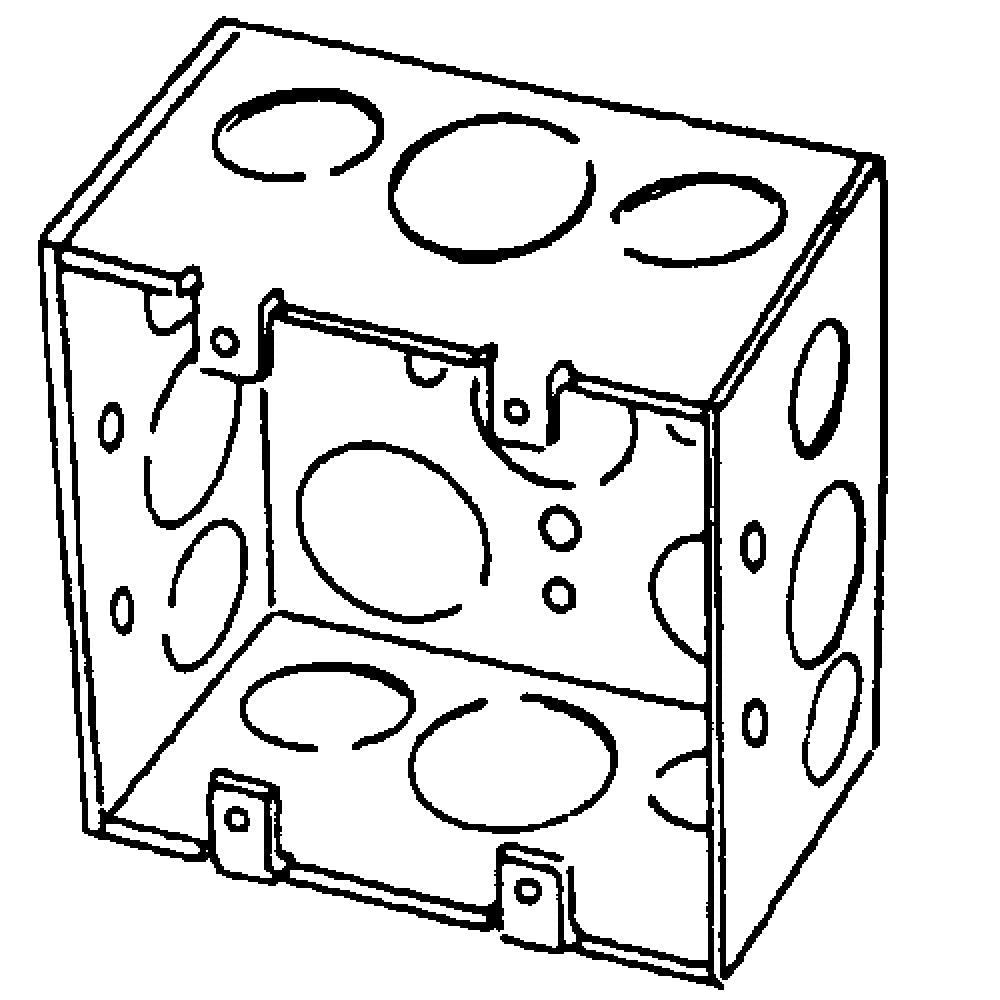

The Appleton 132AP-SPL square corner switch box features 2 gangs and 17 knockouts. Constructed of pre-galvanized steel, this box has a capacity of 30.3 cu-in and dimensions of 4 in H x 4 in W x 2-1/8 in D. It meets NEMA FB-1/OS-1 enclosure standards and is suitable for commercial and residential applications.

• Features (4) 1/2 in, (2) 3/4 in side, (3) 1/2 in, (2) 3/4 in bottom, (4) 1/2 in, (2) 3/4 in end knockouts
• ARRA Compliant and Buy American Act Compliant
• UL 514A and UL File No. E2527

Product Highlights

The Appleton 132AP-SPL is ideal for residential and commercial applications requiring a durable and code-compliant switch box.

Product Information

Standard Information

• Brand: APPLETON
• Manufacturer Part Number: 132AP-SPL

Technical Specifications

• Brand: Appleton
• Part Number #: 132APSPL
• SKU #: 2199221
• Capacity: 30.3 cu-in
• Enclosure Type: NEMA FB-1/OS-1
• Knockout Size: 1/2, 3/4 in
• Number of Knockouts: 17
• Manufacturer Name: Emerson Electric
• UNSPSC: 39121306
• Material: Steel
• Number of Gangs: 2
• Shape: Square
• Application: Residential and Commercial Applications
• Cable Entry: Knockouts
• Finish: Pre-Galvanized
• Standard & Approvals: UL 514A, E2527, RoHS Compliant
• Series: ETP
