Appleton 111 Switch Box, Gangable, 2 inches Deep

Product Description

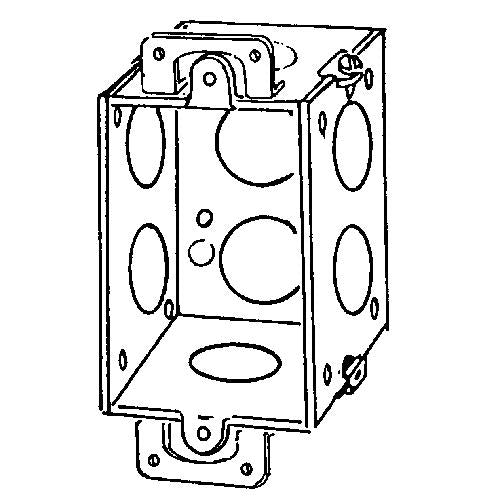

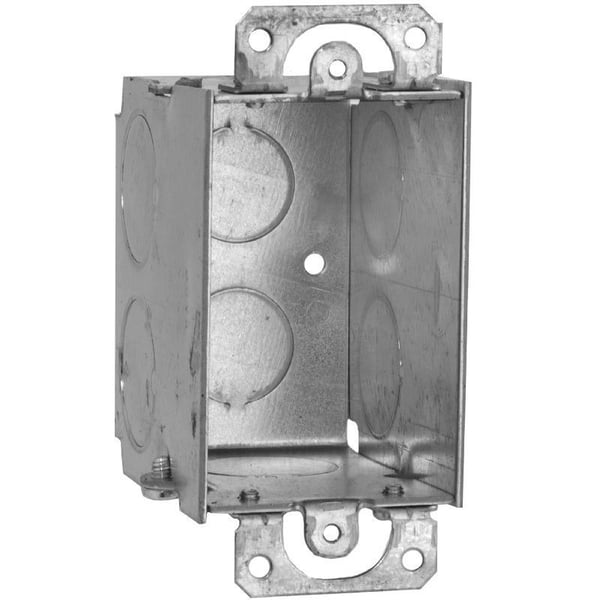

The Appleton 111 switch box is a metallic, gangable, drawn box with conduit knockouts and plaster ears. Depth: 2". Side Knockouts: (6) 1/2". Bottom Knockouts: (2) 1/2". Cubic Inches: 10.0". Suitable for use as a junction box or a device box for switches, receptacles, and GFCIs.

• Gangable
• Drawn
• Metallic
• Conduit Knockouts

Product Highlights

The Appleton switch box is easy to install and made of durable materials. It can be used indoors or outdoors.

Product Information

Standard Information

• Brand: APPLETON
• Manufacturer Part Number: 111
• Country of Origin: US

Technical Specifications

• Knockout Diameter: 1/2 in
• Mounting: Screw On, Nail On
• Depth: 2 in
• Gangs: 1
• Material: Steel
• Cubic Inches: 10 in³
• Brand Name: Appleton
• Capacity: 10
• Country of Origin: US
• Cubic_Capacity: 10
• Knockouts: 8
• Number_Of_Gangs: 1
• Size: 2 X 2 X 3
• Special Features: Gangable, With 1/2 IN Conduit Knockouts, With Plaster Ears, 2 IN Deep
• Standard: UL Standard 514A; UL Listed E2527; Nema OS-1
• Sub_Brand: Appleton
• Type: Square Corner Gangable
• Number of Knockouts: 8
• Knockout Size: 1/2 in
• Mounting Type: Threaded
• Cable Entry: Knockout
• Dimensions: 3 in H x 2 in W x 2 in D
• Enclosure Type: NEMA OS-1
• Shape: Square
• Standard & Approvals: UL 514A, E2527, RoHS Compliant
