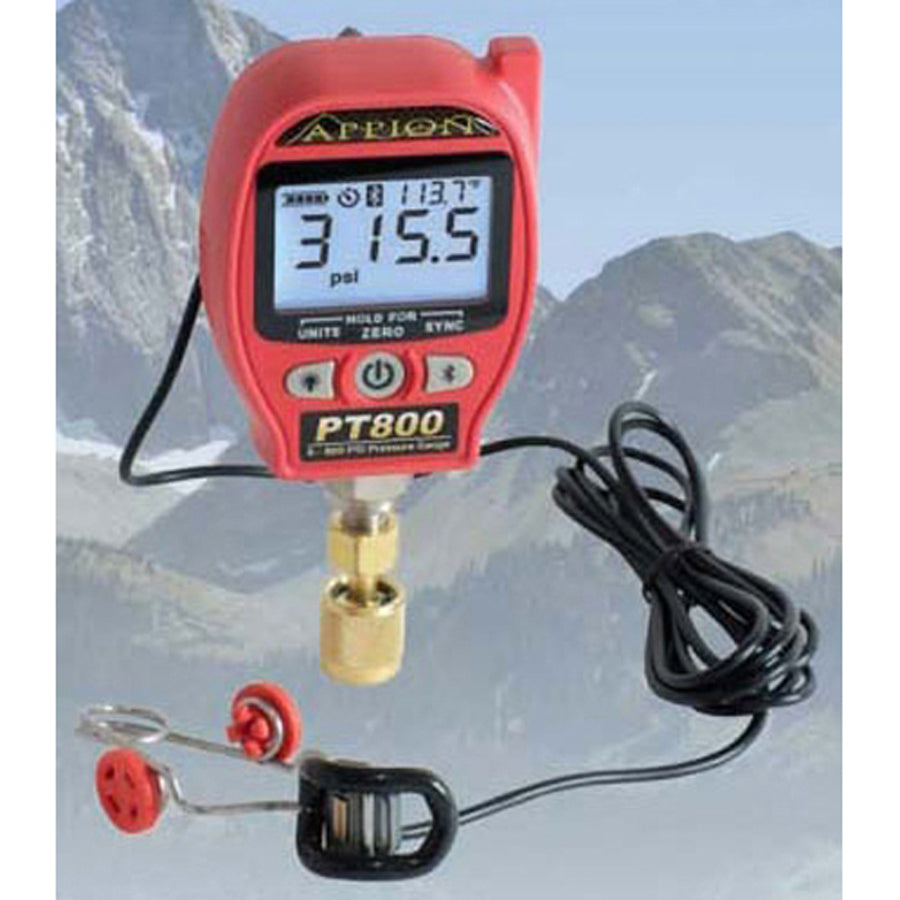

Appion Tools PT800 Digital Pressure Temp Gauge 800 Psi

Product Description

The APPION TOOLS PT800 is a wireless digital stub-style pressure and temperature gauge designed for high-side refrigerant system measurement. Built for HVAC/R technicians, it delivers simultaneous pressure and temperature readings on a single digital display, eliminating the need for separate instruments during system analysis. The PT800 is rated to 1,000 psi maximum pressure and features an IP65 enclosure rating for resistance to dust and water ingress. Its thermally-isolated contact sensor and minimized-mass clamp design allow fast, accurate readings with minimal thermal error, supporting high-accuracy diagnostics in the field.

The PT800 is intended for use on high-side refrigerant circuits in residential and commercial HVAC/R systems. It connects via a 1/8-inch male threaded end connection, making it compatible with standard manifold gauge ports and service valves. The wireless capability allows technicians to monitor readings remotely, useful when gauges are installed in confined equipment compartments. Typical applications include charging verification, leak diagnosis, and system performance analysis on split systems, heat pumps, and refrigeration equipment.

Key Features

• Wireless digital readout enables remote simultaneous pressure and temperature monitoring
• Rated to 1,000 psi maximum pressure for high-side refrigerant service
• IP65-rated enclosure provides protection against dust and water spray
• Thermally-isolated contact sensor reduces thermal error for high-accuracy readings
• Stub gauge form factor with minimized mass clamp reduces stress on service ports
• Accuracy of plus or minus 5 percent across the measurement range

Compatibility

Designed for high-side refrigerant service connections using standard 1/8-inch male threaded ports on HVAC/R systems. Consult system service documentation to confirm port compatibility before installation.

Installation Notes

Installation should be performed by a licensed HVAC/R technician in accordance with applicable refrigerant handling regulations and EPA Section 608 requirements. Recover or isolate system refrigerant pressure as appropriate before connecting or disconnecting the gauge. Ensure the threaded connection is hand-tight and then snugged with an appropriate wrench — do not over-tighten fittings on soft service valve ports. Verify wireless pairing to the display unit before beginning system diagnostics.

Technical Specifications

• Maximum Pressure: 1,000 psi
• Pressure Range (Display): 0-800 psi
• Accuracy: plus or minus 5 percent
• Temperature Rating: 0 to 140 degrees F
• Display Type: Digital
• Gauge Type: Stub, High Accuracy
• End Connection: 1/8 inch Male Threaded
• Enclosure Rating: IP65

Standard Information

• Brand: APPION TOOLS
• Manufacturer Part Number: PT800
