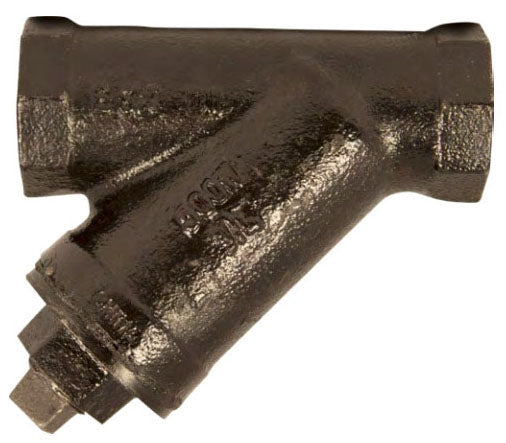

Conbraco YCT07M20 Hydronic Strainer 500 PSI CWP 1-1/2 FPT x FPT

Product Description

The Conbraco YCT07M20 is a hydronic strainer designed for use in plumbing applications. This product features female threaded connections and operates at a high pressure of five hundred PSI CWP and two hundred fifty PSI SWP. The strainer is made from ASTM A126 Class B cast iron, making it durable for various installations.

• Nominal size of one and one-half inches
• Twenty mesh screen for filtration
• Includes a tapped blow-off connection with plug

Product Highlights

This strainer protects piping systems from unwanted materials while maintaining minimal pressure loss, ensuring efficient operation.

Product Information

Standard Information

• Manufacturer: Conbraco
• UPC: 670750455148

Technical Specifications

• Type: Y-Pattern
• Body Material: ASTM A126 Class B Cast Iron
• Mesh/Screen Size: 20 Mesh
• Seal Material: Graphite
• Temperature Rating: 406 Deg F
• Pressure Rating: 500 PSI (CWP), 250 PSI (SWP)
• End Connection: Female Threaded x Female Threaded
• End to End Distance: 5.75 Inch
• Applicable Standard: FDA, ASME/ANSI B1.20.1, NSF/ANSI 372
• Pipe Size to Vertical Dimension: 4.61 Inch
• Inclusions/Features: Tapped Blow-Off Connection with Plug
