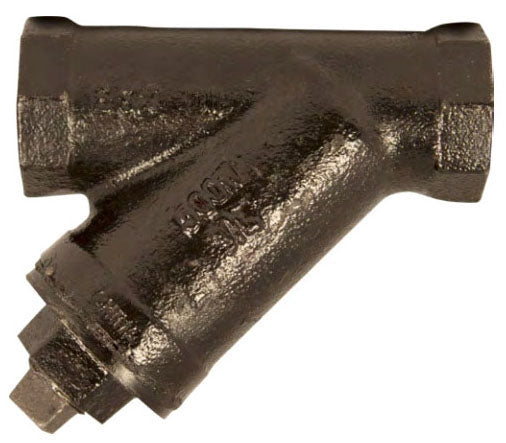

Apollo YCT05M20 Cast Iron Y-Strainer 1 Inch 20 Mesh Screen

Product Description

The Apollo Valve YCT05M20 is a robust cast iron Y-strainer designed for high efficiency in filtering debris in various fluid systems. It features a 1-inch female threaded connection on both ends and a 20 mesh screen made from durable 304 stainless steel. The Y-Strainer is engineered to withstand up to 500 PSI (CWP) and 250 PSI (SWP), making it suitable for a wide range of applications in water, oil, and gas systems.

• Durable cast iron construction ensures long-term reliability.
• Features a tapped blow-off connection with plug for easy maintenance.
• Lead-free, meeting FDA, ASME/ANSI B1.20.1, and NSF/ANSI 372 standards.

Product Highlights

Efficiently protects piping systems and process equipment from foreign particles with minimal pressure drop. It is factory tested to guarantee reliability and performance.

Product Information

Standard Information

• End to End Distance: 4.02 inches
• Temperature Range: up to 406 degrees Fahrenheit

Technical Specifications

• Body Material: ASTM A126 Class B Cast Iron
• Screen Material: 304 Stainless Steel
• Seal Material: Graphite
• Pressure Rating: 500 PSI CWP, 250 PSI SWP
• Mesh Size: 20 Mesh
• Connection Type: FPT x FPT
