Apollo Valves YCT08M20 Hydronic Strainer 500 PSI CWP 2 Inch Female Threaded

Product Description

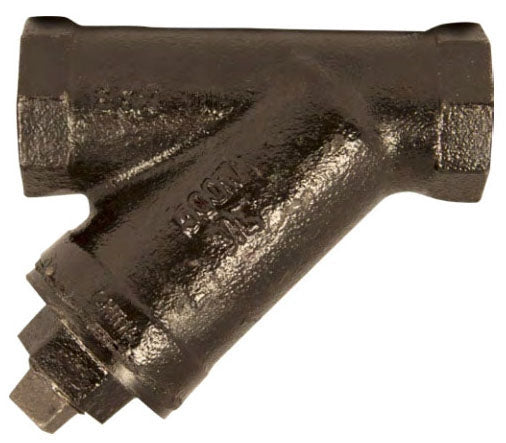

The Apollo Valves YCT08M20 Wye Strainer is engineered for efficient filtering in plumbing applications. This strainer is crafted from Class B cast iron and features a Y-pattern design, ensuring durability and resistance against high pressures up to 500 PSI CWP and 250 SWP.

• Features a robust body made of ASTM A126 Class B Cast Iron.
• Equipped with a 304 stainless steel screen, preventing debris accumulation.
• Designed to handle temperatures up to 406 degrees Fahrenheit.

Product Highlights

With its tapped blow-off connection and plug, this strainer facilitates easy maintenance and cleaning. Ideal for both commercial and industrial settings, it provides a reliable solution to keep your piping system free from particulates.

Product Information

Standard Information

• Nominal Size: 2 inches
• End Connections: Female Threaded x Female Threaded

Technical Specifications

• Pressure Rating: 500 PSI (CWP), 250 PSI (SWP)
• Mesh/Screen Size: 20 Mesh
• Body Material: ASTM A126 Class B Cast Iron
• Mesh/Screen Material: 304 Stainless Steel
• Seal Material: Graphite
• Temperature Rating>: 406 Deg F
• Applicable Standards: FDA, ASME/ANSI B1.20.1, NSF/ANSI 372
