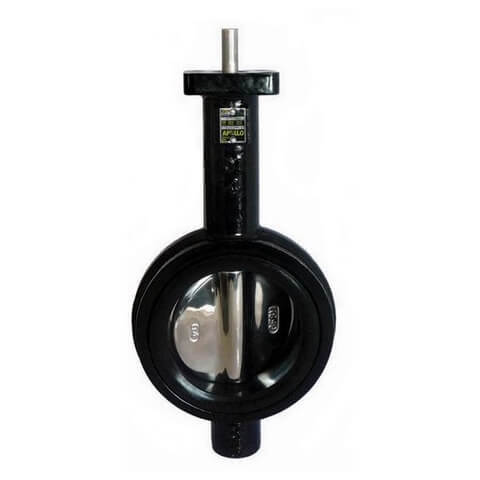

Apollo Valves WD14125BE11 2-1/2 Resilient Seated Wafer Butterfly Valve EPDM 196 Cv

Product Description

The Apollo Valves WD14125BE11 is a two and a half inch resilient seated wafer butterfly valve made from ductile iron. This valve is designed for use in industrial and commercial HVAC and mechanical applications.

• Compatible with ANSI 125# and 150# flanges.
• ISO 5211 top plate that supports various actuator options.
• Meets industry standards MSS SP-67 and API 609.

Product Highlights

This valve is ideal for systems requiring reliable performance under pressure, making it suitable for end-of-line service in sizes ranging from 2 inches to 12 inches.

Product Information

Standard Information

• Brand: Apollo Valves
• Model: WD14125BE11

Technical Specifications

• Size: 2-1/2 inches
• Material: Ductile Iron
• Flow Capacity (Cv): 196
• Max Pressure (PSI): 200
• Connection Type: Wafer
• Handle Style: Manual Gear
• Lead Free: Yes
• Shipping Depth: 25 inches
• Shipping Width: 10 inches
• Shipping Height: 10 inches
