Apollo Valves Wd14104de11 Butterfly Valve 4 inch

Product Description

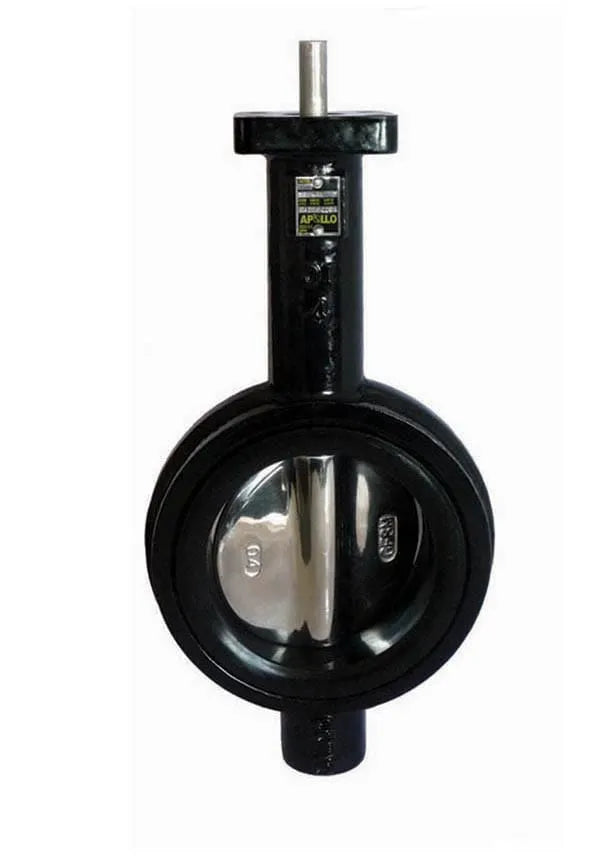

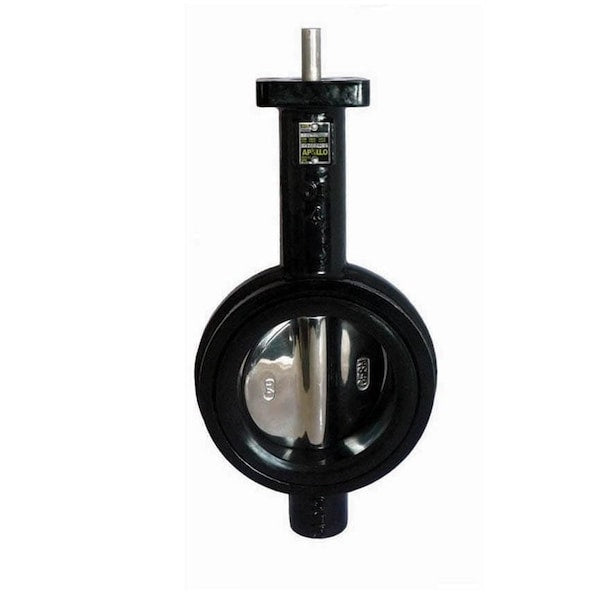

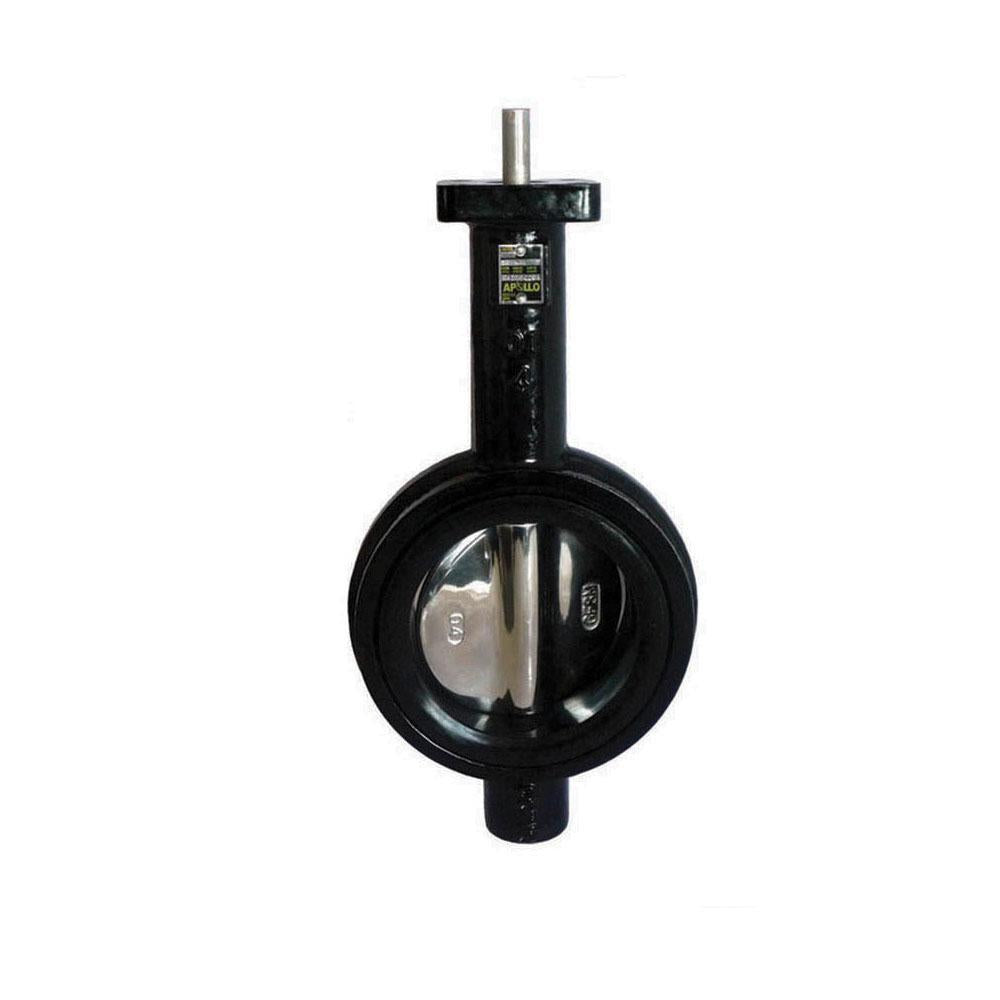

The APOLLO VALVES WD14104DE11 butterfly valve is designed for industrial, commercial, HVAC, and mechanical applications. This wafer style valve is compatible with ANSI 125 lb and 150 lb flanges. It features a ductile iron body and disc, with an EPDM seat and a 10-position handle actuator.

• Compatible with ANSI 125 lb and 150 lb flanges
• ISO 5211 top plate allows choice of Apollo™ pneumatic actuators and manual operators
• 3 to 24 in meet performance requirements of AWWA C-504

Product Highlights

The WD141 series butterfly valve is a resilient seated wafer style valve with a ductile iron body and EPDM softgoods.

Product Information

Standard Information

• Brand: APOLLO VALVES
• Manufacturer Part Number: WD14104DE11
• Country of Origin: China

Technical Specifications

• Actuator Type: 10-Position Handle
• Body Material: Ductile Iron
• Disc Material: Ductile Iron
• End Style: Flanged
• Nominal Size: 4 in
• Pressure Class: 125/150 lb
• Series: WD141 Series
• Softgoods Material: EPDM
• Temperature Rating: -20 to 250 deg F Intermittent/22 deg F Continuous
• Top to Inlet Center: 7.88 in
• Type: Resilient Seated Wafer Style
• Item: Butterfly Valve
• Connection Type: Wafer
• Max. Pressure: 200 psi
• Port Type: Standard
• Pressure Rating: 200 psi CWP
• Seat Material: EPDM
• Shape: Straight
• Size: 4"
• Spindle Material: Stainless Steel
• Surface Protection: Untreated
• Valve Type: Butterfly Valve
• Housing material: Cast iron
• Material spindle: Stainless steel
• Material primary spindle seal: NBR (nitrile rubber)
• FM quality mark: No
• UL quality mark: No
• ULC quality mark: No
• LPCB quality mark: No
• VdS quality mark: No
• KIWA certified: No
• Gastec QA mark: No
• Gastec QA - AR 214 (H2): No
• Max operating pressure liquid: 200 psi
• Product group: valves (butterfly valves)
• ETIM class: EC010910 Butterfly valve
• Brand: Apollo
• Product type: WD1410XDE11
• UNSPSC: 40141620
• ETIM-class: EC010910 Butterfly valve
• Finishing: none
• Materials: cast iron (ASTM A536 65-45-12)
