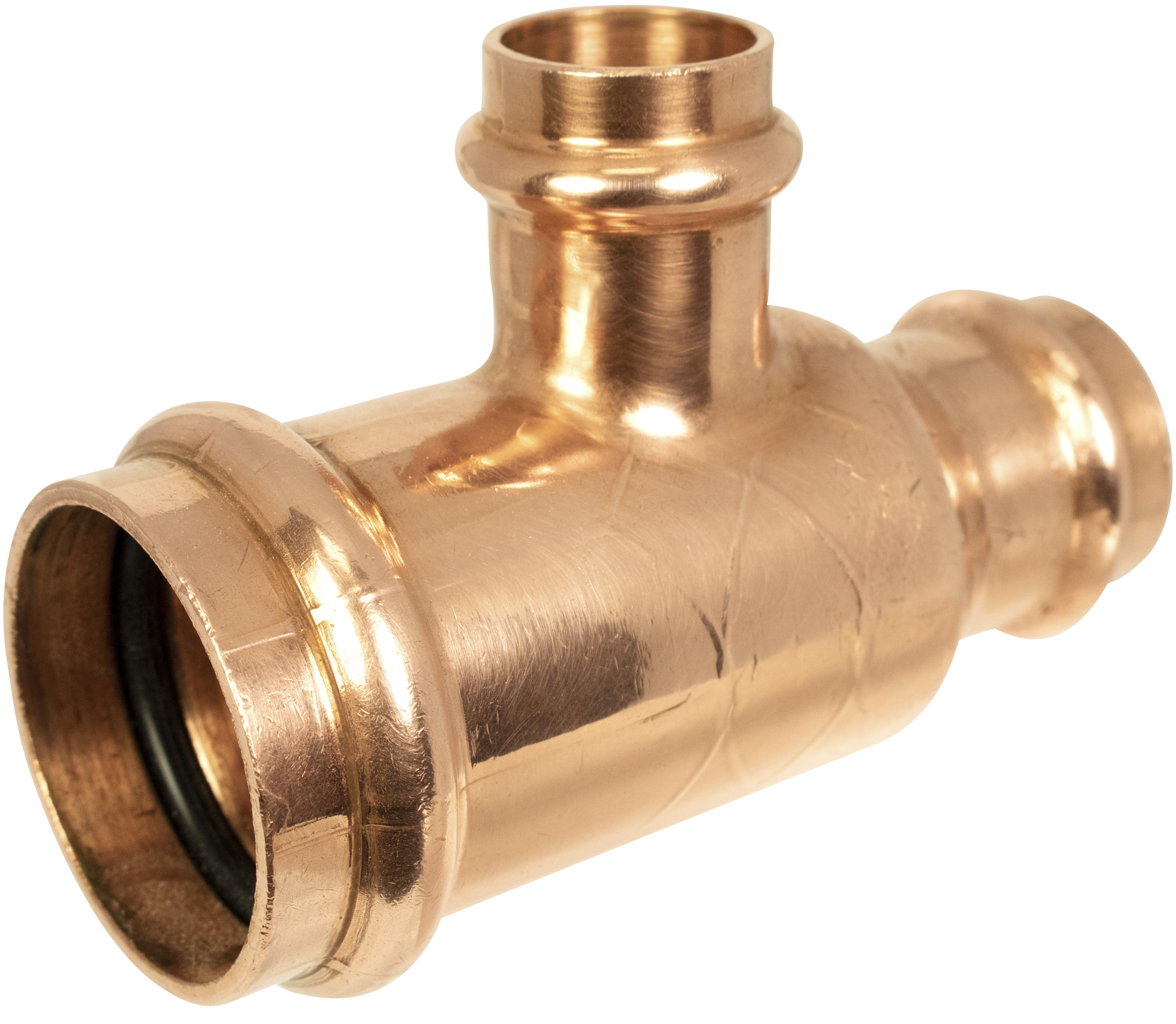

Apollo Valves TEE34X34X12 Reducing Press Tee 3/4x3/4x1/2

Product Description

The APOLLO VALVES TEE34X34X12 is a press-fit reducing outlet tee designed for copper press (CxCxC) piping systems. It features a lead-free, dezincification-resistant copper body and an EPDM o-ring seal. The reducing configuration connects 3/4-inch run ports to a 1/2-inch outlet, making it a direct fit for branch reductions in hydronic heating, domestic water, and commercial plumbing systems. The EPDM o-ring enables Leak Before Press detection, which allows technicians to identify unpressed joints during pressure testing before the system goes live. Manufactured to ASTM material and dimensional standards.

This tee is suited for residential and light commercial plumbing and hydronic applications where press-fit copper connections are specified. It is installed in branch-line configurations where the main run remains at 3/4 inch and the branch outlet steps down to 1/2 inch. Press-fit systems are commonly found in new construction and retrofit work where open-flame soldering is restricted or impractical. Licensed plumbers and pipefitters are the primary installers of ApolloPress press-fit fittings.

Key Features

• Lead-free dezincification-resistant copper body meets ASTM material standards
• EPDM o-ring seal provides a reliable, solderless press connection
• Leak Before Press technology allows identification of unpressed joints during pressure testing
• Reducing CxCxC configuration: 3/4 inch x 3/4 inch x 1/2 inch
• Compatible with standard press-fit tooling for copper press systems

Compatibility

Designed as an OEM-style press-fit fitting for copper press piping systems using CxCxC connections. Intended for use with standard press-fit jaw tooling compatible with ApolloPress small-diameter copper press fittings.

Installation Notes

Installation requires a compatible press-fit tool with the appropriate jaw size for each connection port. Shut off and depressurize the system before cutting into existing lines. Verify all joints are fully pressed before restoring pressure — the Leak Before Press feature will allow a small amount of flow through any unpressed joint, which is identifiable during initial pressure testing. Installation should comply with applicable local plumbing codes and ASTM B88 copper tube standards.

Technical Specifications

• Connection Type: Press x Press x Press (CxCxC)
• Run Size: 3/4 inches x 3/4 inches
• Outlet Size: 1/2 inches
• Body Material: Lead-Free Dezincification-Resistant Copper
• Seal Material: EPDM O-Ring
• Construction Standard: ASTM
• Lead Free: Yes

Standard Information

• Brand: APOLLO VALVES
• Manufacturer Part Number: TEE34X34X12
