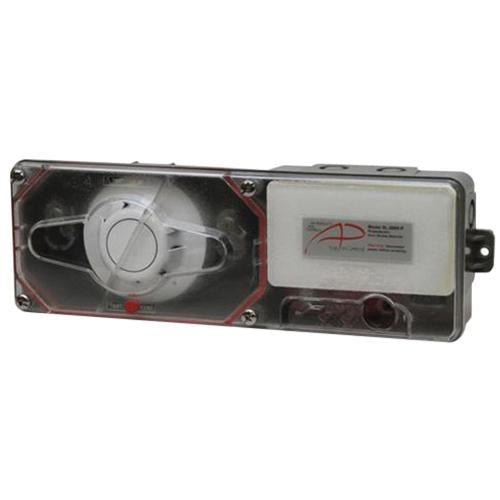

Apollo Valves SL-2000-N Duct Smoke Detector Ionization 24/115/230 VAC, 24 VDC

Product Description

The APOLLO VALVES SL-2000-N is a duct smoke detector with true innovations from current generation duct smoke detectors. It is designed for early detection of moving products of combustion present in air moving through HVAC ducts in commercial, industrial and residential applications. It operates at 24/115/230 VAC, 24 VDC and 10-85% RH non-condensing/non-freezing humidity.

• Low flow technology listed for velocities between 100-4000 fpm
• Patent pending test port valve allows for smoke testing without cover removal
• Reset switch is also an alarm test switch

Product Highlights

The APOLLO VALVES SL-2000-N duct smoke detector features low flow technology, a test port valve, and a reset/test switch for efficient and reliable smoke detection in various applications.

Product Information

Standard Information

• Brand: APOLLO VALVES
• Manufacturer Part Number: SL-2000-N

Technical Specifications

• Power Source: 24/115/230 VAC, 24 VDC
• Temperature Rating: 32 to 158 deg F
• Material: Plastic
• Width: 4.5 in
• Height: 2.25 in
• Depth: 13.5 in
• Detection Method: Ionization
• Humidity Rating: 10-85% RH Non-Condensing/Non-Freezing
• Wire Type: Solid/Stranded
• Alarm Current: 190 mA at 24 VAC, 32 mA at 115 VAC, 31.5 mA at 230 VAC, 68 mA at 24 VDC
