Apollo Valves MS-RH/KA/P/A/T Remote Alarm Horn

Product Description

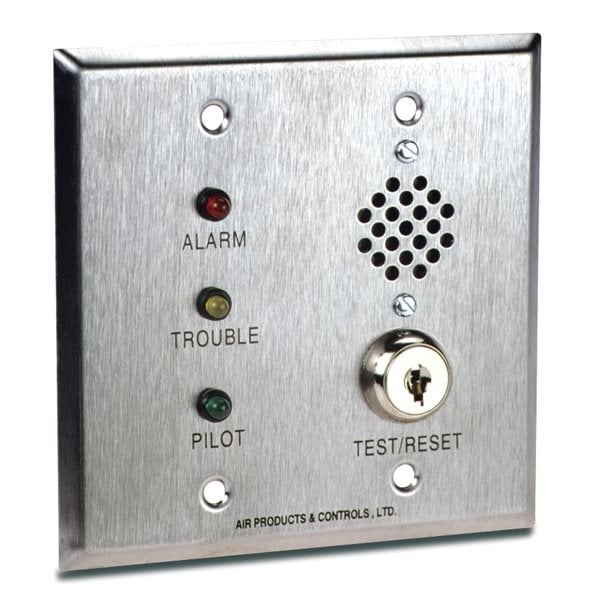

The APOLLO VALVES MS-RH/KA/P/A/T is a key-operated remote alarm horn designed for use with air products and controls conventional duct smoke detectors. It provides both audible and visual indication, along with remote test/reset functions. Constructed of brushed stainless steel, it mounts on a standard single or double gang electrical backbox. It is UL 268 listed.

• Provides audible and visual indication as well as remote test/reset functions
• Constructed of durable brushed stainless steel
• Mounts on a standard single or double gang electrical backbox

Product Highlights

Remote alarm horn for air products and controls duct smoke detectors. Features a red alarm and yellow fault status indicator.

Product Information

Standard Information

• Brand: APOLLO VALVES
• Manufacturer Part Number: MS-RH/KA/P/A/T

Technical Specifications

• Item Name: Remote Alarm Horn
• Power Supply: 15 mA at 24 VDC Alarm LED/Trouble LED/Pilot LED, 20 mA at 24 VDC Alarm Horn
• Sound: 78 dB at 10 ft
• Temperature Rating: 0 - 49 deg C
• Type: Key-Operated
• Wire Type: 6 in 24 AWG Pigtails
• Dimension: 114.3 mm W x 114.3 mm H
