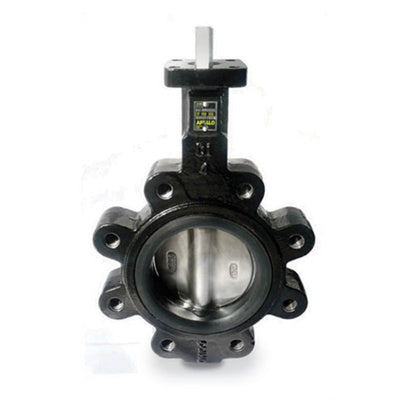

Apollo Valves LD14125BE11 Butterfly Valve 2.5 inches

Product Description

The Apollo Valves LD14125BE11 is a butterfly valve with a diameter of two and a half inches. It has a body made of ductile iron and a disc composed of bronze. This valve features a top plate allowing for the connection of Apollo pneumatic actuators and manual operators. Designed for HVAC and water systems, this valve meets lead law compliance standards and is certified for use.

• Top plate enables choice of actuator type
• Lead law compliant and certified
• Suitable for HVAC and water applications

Product Highlights

The Apollo Valves LD14125BE11 is a robust butterfly valve ideal for various residential and commercial applications, ensuring reliable performance and compliance.

Product Information

Standard Information

• Brand: Apollo
• MPN: LD14125BE11

Technical Specifications

• Butterfly Valve Type: Lug
• Disc Material: Bronze
• Diameter: 2.5 inches
• Body Material: Ductile Iron
• ANSI Standards: ANSI 372, ANSI 61, ANSI Class 125
• API Standards: API 609
• ASME Standards: ASME 16.33, ASME B16.44
• Lead Law Compliance: Yes
• Maximum Temperature: 225 degrees Fahrenheit
• Minimum Temperature: -20 degrees Fahrenheit
• Maximum Pressure: 200 psi
• Valve Body Style: Lug
• Valve Operator: Lever Handle
• Valve Port Opening: Full Port
• Valve Seat Material: EPDM
• Valve Size: 2.5 inches
• Valve Stem: Blowout-proof
