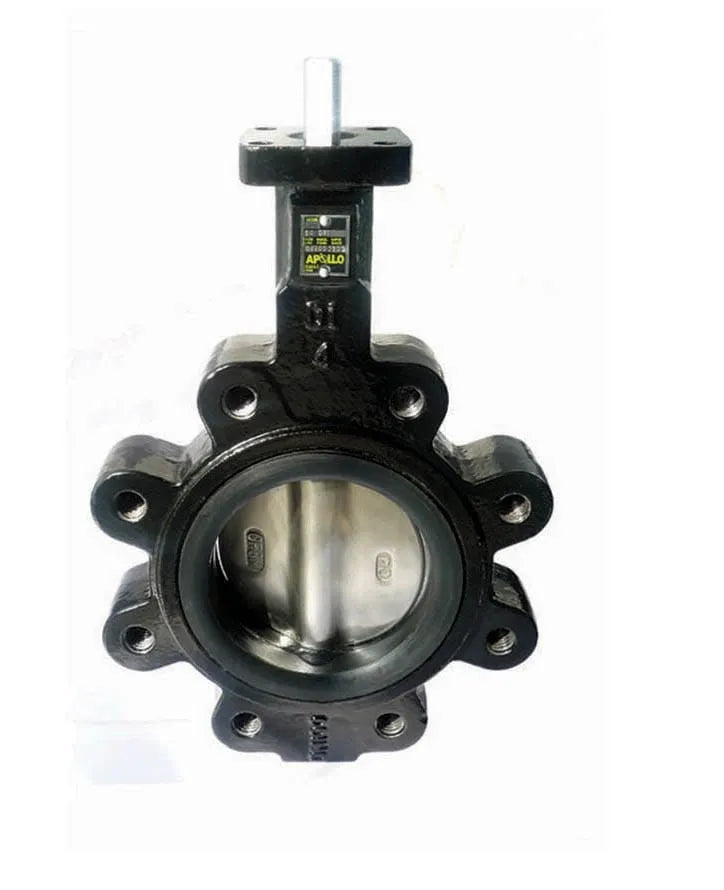

Apollo Valves LD14108SN12A international lugged resilient seated butterfly valve gear operator (8 inch)

Product Description

Apollo Valves LD14108SN12A is an 8 inch lugged resilient-seated butterfly valve with a cast iron body, stainless steel disc, spindle and trim, and a Buna-N (NBR) seat. It features a gear operator for direct mount and a lug-style two-lug connection for through-bolt installation. Series LD141/WD141, standard port, untreated surface, and a pressure rating of 200 psi CWP make it suitable for flow isolation and throttling in piping systems.

• Lug-style (2-lug) design for through-bolt installation and direct mount with gear operator
• Cast iron body with stainless steel disc, spindle and trim; Buna-N (NBR) resilient seat
• Pressure rating 200 psi CWP; standard port; series LD141/WD141

Product Highlights

8 inch lugged resilient-seated butterfly valve with gear operator, stainless steel trim, Buna-N seat, and 200 psi CWP pressure rating

Product Information

Standard Information

• Brand: APOLLO VALVES
• Manufacturer Part Number: LD14108SN12A
• Country of Origin: China

Technical Specifications

• Brand: Apollo Valves
• Manufacturer Part Number: LD14108SN12A
• Model: LD14108SN12A
• Series: LD141 / WD141
• Product Type: Resilient Seated Butterfly Valve
• Size: 8 inch
• Connection Type: Lug (2-lug)
• Actuator Type: Gear operator
• Mounting Type: Direct mount
• Body Material: Cast iron
• Disc Material: Stainless steel
• Spindle Material: Stainless steel
• Trim Material: Stainless steel
• Seat Material: Buna-N (NBR)
• Pressure Rating: 200 psi CWP
• Port Type: Standard
• Finish / Surface Protection: Untreated
• Item Code: CB8LNQ
• Country of Origin: China
