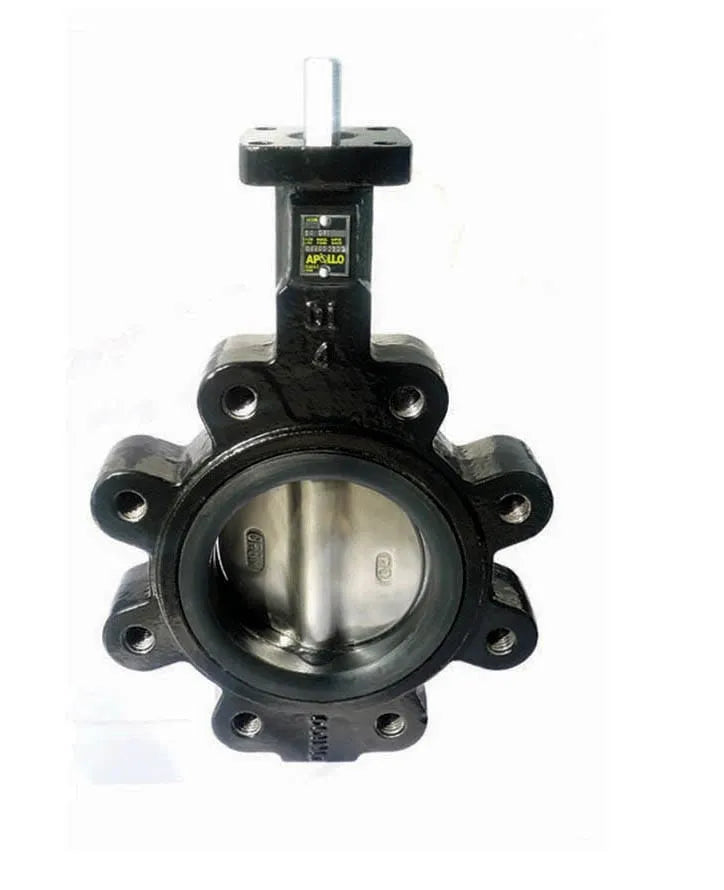

Apollo Valves LD14108DE12A Lugged Butterfly Valve 8 inches REPLACEMENT

Product Description

The APOLLO VALVES LD14108DE12A is a lugged butterfly valve ideal for industrial and commercial/HVAC/mechanical applications. It is compatible with ANSI 125# & 150# flanges and conforms to MSS SP-67 & API 609. Suitable for end-of-line service to rated pressure. The valve meets performance requirements of AWWA C-504.

• Compatible with ANSI 125# & 150# Flanges
• ISO 5211 Top Plate Allows Choice of Apollo Pneumatic Actuators and Gear Operators
• Conforms to MSS SP-67 & API 609

Product Highlights

This ductile iron butterfly valve features a nickel-plated ductile iron disc, EPDM seat, and stainless steel shaft. It has a gear operator and direct mount.

Product Information

Standard Information

• Brand: APOLLO VALVES
• Manufacturer Part Number: LD14108DE12A
• Country of Origin: CN

Technical Specifications

• DN1: 8"
• DN2: 8"
• Housing material: Cast iron
• Surface protection: Untreated
• Nominal diameter: DN 200
• Connections: Lug type
• Material spindle: Stainless steel
• Material primary spindle seal: NBR (nitrile rubber)
• max operating pressure liquid: 200 psi
• shape: straight
• connection type: lug type, lug type
• ETIM class: EC010910 Butterfly valve
• Item: Butterfly Valve
• Actuator Type: Gear Actuator
• Body Material: Cast Iron
• Finish: None
• Max. Pressure: 200 psi
• Port Type: Standard
• Pressure Rating: 200 psi CWP
• Seal Material: NBR
• Seat Material: EPDM
• Series: LD141 WD141 Series
• Size: 8"
• Spindle Material: Stainless Steel
• Trim Material: Diisononyl Phthalate, Stainless Steel
• Valve Type: Resilient Seated Butterfly Valve
