Apollo Valves LD14104DE11A International Lugged Butterfly Valve 4 inch

Product Description

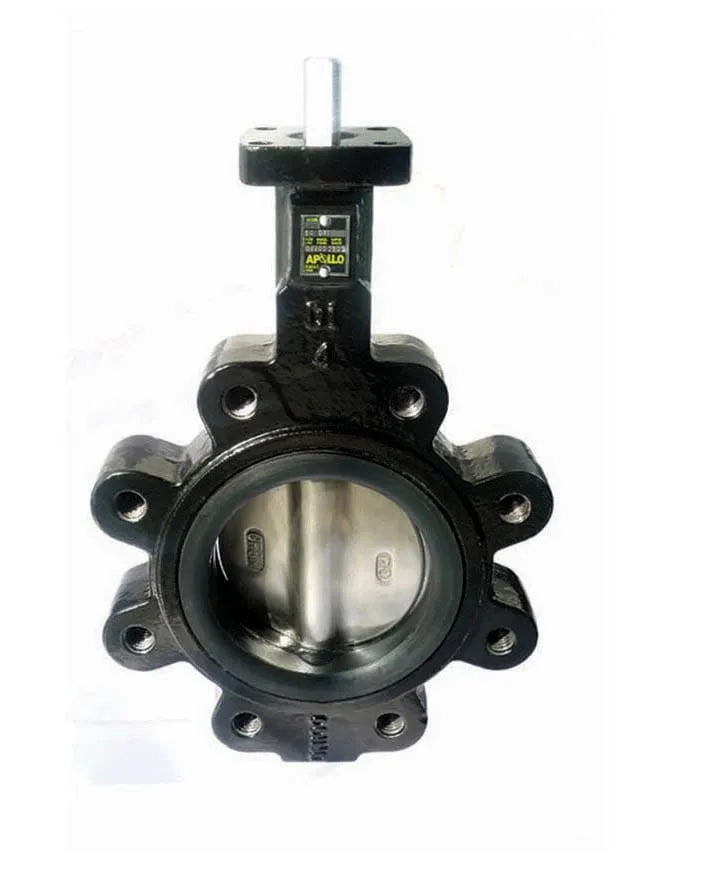

The Apollo Valves LD14104DE11A ductile iron butterfly valve is designed for industrial, commercial, HVAC, and mechanical applications. This lug style valve, part of the LD141/WD141 series, is available in sizes 2” - 24” lug. It is compatible with ANSI 125# & 150# Flanges.

• Compatible with ANSI 125# & 150# Flanges
• ISO 5211 Top Plate Allows Choice of Apollo Pneumatic Actuators and Gear Operators
• Conforms to MSS SP-67 & API 609

Product Highlights

The Apollo butterfly valve is suitable for end of line service and meets AWWA C-504 performance requirements.

Product Information

Standard Information

• Brand: APOLLO VALVES
• Manufacturer Part Number: LD14104DE11A
• Country of Origin: China

Technical Specifications

• Nominal diameter: DN 100
• Housing material: Cast iron
• Surface protection: Untreated
• Connections: Lug type
• Material spindle: Stainless steel
• Material primary spindle seal: NBR (nitrile rubber)
• max operating pressure liquid: 200 psi
• materials: cast iron (ASTM A536 65-45-12)
• shape: straight
• connection type: Lug
• brand: Apollo
• series: LD141 WD141 Series
• product type: LD1410XDE11A
• Item: Butterfly Valve
• Actuator Type: Lever Handle
• Body Material: Cast Iron
• Max. Pressure: 200 psi
• Port Type: Standard
• Pressure Rating: 200 psi CWP
• Seal Material: NBR
• Seat Material: EPDM
• Size: 4"
• Spindle Material: Stainless Steel
• Trim Material: Diisononyl Phthalate, Stainless Steel
• Valve Type: Resilient Seated Butterfly Valve
