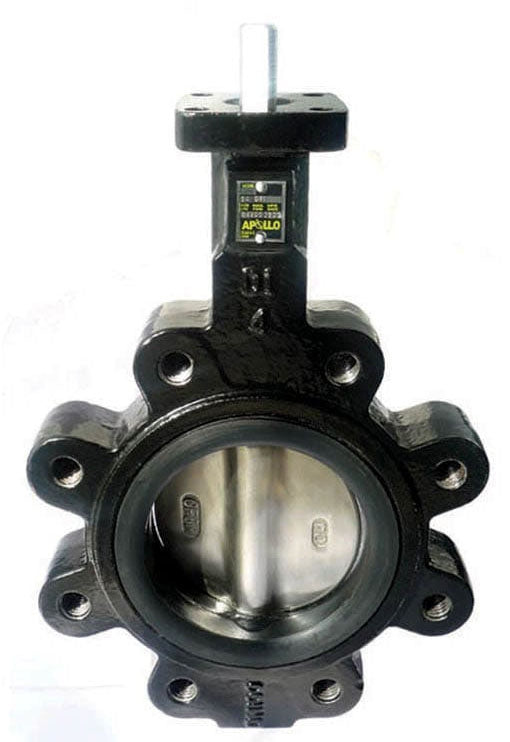

Apollo Valves LD141-04-DE11 4 Inch Flanged Lug Butterfly Valve 200 PSI Lead-Free

Product Description

Introducing the Apollo Valves LD141-04-DE11 Butterfly Valve, designed for efficient flow control in commercial, industrial, and HVAC applications. This valve features a robust design with a ductile iron body and nickel-plated disc, ensuring long-lasting performance and reliability.

• Lead-free construction catering to environmental and health standards.
• Equipped with a 10-position handle for precise control.
• Capable of handling pressures up to 200 PSI and temperatures from -20 to 250 degrees Fahrenheit.

Product Highlights

This Apollo Valves model is engineered with a pneumatic actuator and gear operator, enhancing its operational efficiency and durability. Its flanged end connections ensure secure and leak-free installation, suitable for a wide range of piping arrangements.

Product Information

Standard Information

• Nominal Size: 4 inches
• Pressure Rating: 200 PSI
• Temperature Rating: -20 to 250 degrees Fahrenheit

Technical Specifications

• Body Material: ASTM A536 Ductile Iron
• Seat Material: Black EPDM
• Seal Material: Buna-N Rubber
• Disc Material: ASTM A536 Nickel Plated Ductile Iron
• Standards: UPC, ANSI 372, MSS SP-67, API 609
