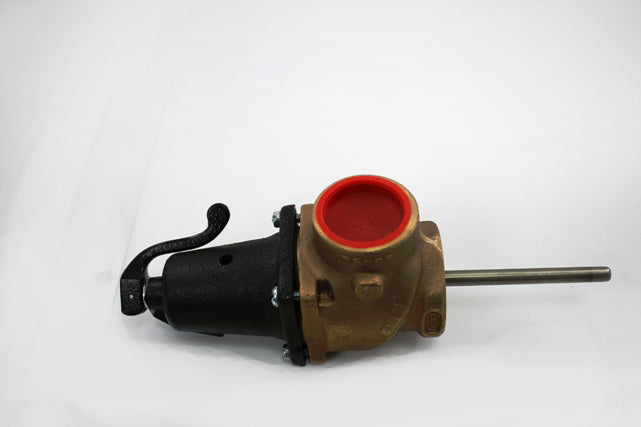

Apollo Valves CON-18C5424125 Tp Relief Valve 125 Psi

Product Description

The APOLLO VALVES CON-18C5424125 is a temperature and pressure relief valve designed for use in water heating systems. It provides a critical safety function by automatically releasing excess pressure or temperature buildup before it reaches dangerous levels. This valve features a 1.5 inch female inlet connection, a 4 inch element length, a maximum working pressure of 125 psi, and a rated capacity of 5,125,000 BTU/h. It is installed by licensed plumbers and mechanical contractors on water heaters and storage tanks where code-mandated overpressure protection is required.

This relief valve is suited for residential and light commercial water heating applications. The 4 inch element length accommodates standard water heater installations, and the 125 psi pressure rating covers a broad range of system operating conditions. Plumbing inspectors and AHJs commonly require a properly rated T and P relief valve on any pressurized water heating vessel, making this a code-critical component in new installations and service replacements alike.

Key Features

• 1.5 inch female inlet connection for direct installation on water heater tank fittings
• 125 psi maximum working pressure rating
• 5,125,000 BTU/h rated discharge capacity
• 4 inch element length suitable for standard tank installations
• Automatic actuation on overpressure or overtemperature conditions

Compatibility

Designed as an OEM-style replacement temperature and pressure relief valve for residential and light commercial water heaters and storage tanks requiring a 1.5 inch female connection rated at 125 psi.

Installation Notes

Installation must be performed by a licensed plumber in accordance with the International Plumbing Code and local authority having jurisdiction requirements. Shut off the water supply and relieve system pressure before removing or installing any relief valve. The discharge outlet must be piped to a safe drain location per applicable code and must never be capped, plugged, or reduced in size. Do not use thread sealant compounds that could compromise valve seat integrity or inhibit proper actuation.

Technical Specifications

• Inlet Connection Size: 1.5 inches female
• Element Length: 4 inches
• Maximum Working Pressure: 125 psi
• Rated Capacity: 5,125,000 BTU/h

Standard Information

• Brand: APOLLO VALVES
• Manufacturer Part Number: CON-18C5424125
