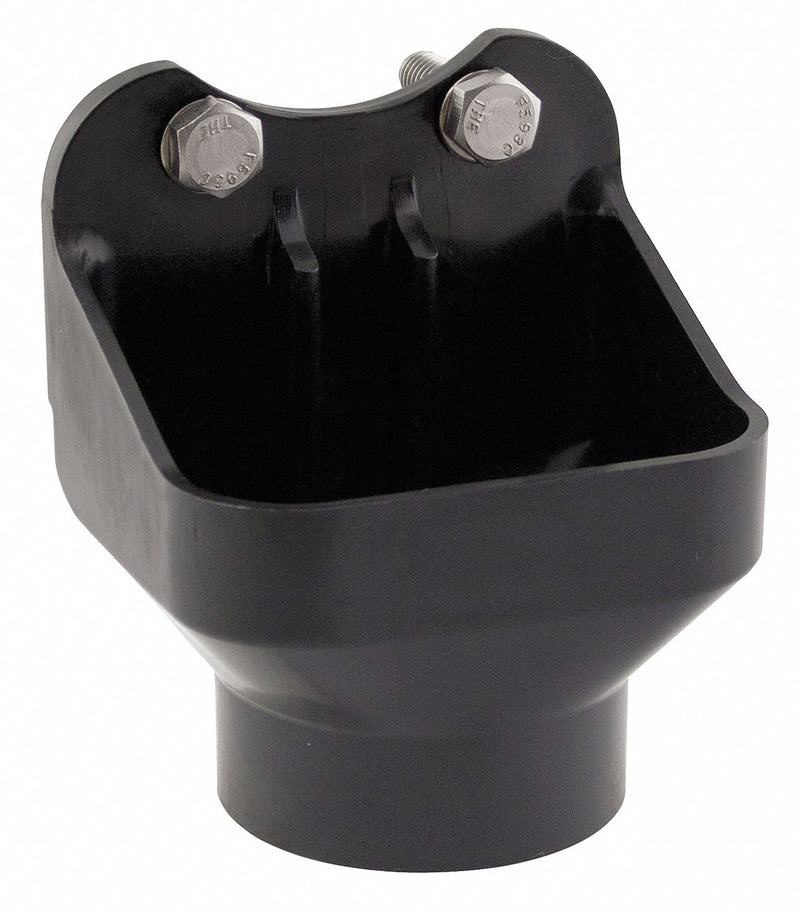

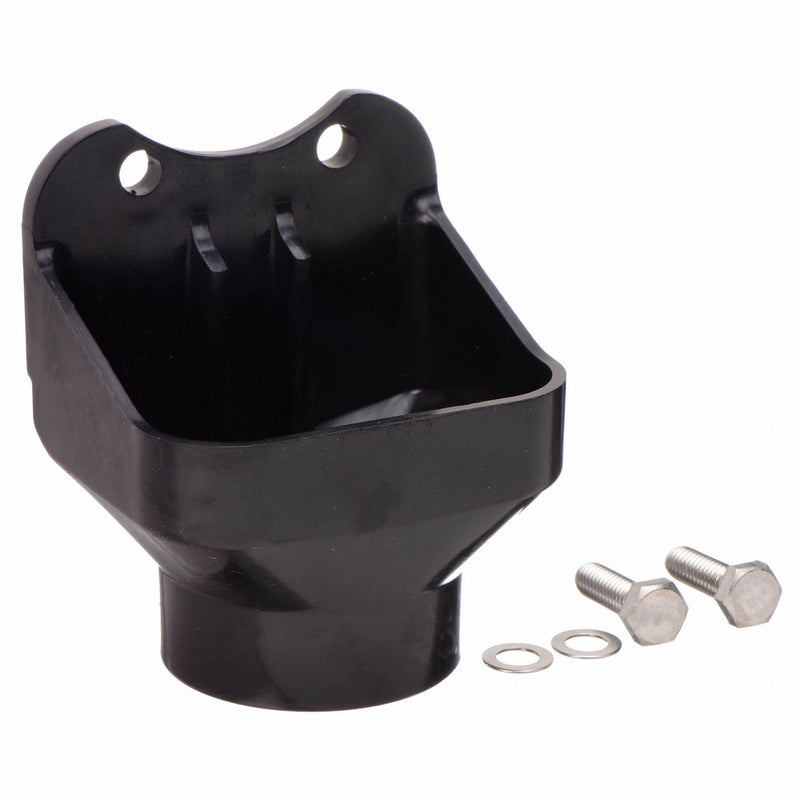

Apollo Valves AGD401 Air Gap Drain Kit 3/4 to 1 in

Product Description

The APOLLO VALVES AGD401 air gap drain kit is designed to funnel minor discharges from a reduced pressure backflow preventer's relief valve into the drainage system. It is suitable for use with Mfr. No. 40207T2 and features a threaded connection. The kit is constructed from ABS material and complies with FCCCHR and USC standards.

• Threaded Connection
• For Use with Mfr. No. 40207T2
• ABS Material

Product Highlights

This air gap drain kit is designed for use with backflow preventers and provides a reliable drainage solution.

Product Information

Standard Information

• Brand: APOLLO VALVES
• Manufacturer Part Number: AGD401
• Country of Origin: US

Technical Specifications

• Item: Air Gap Drain Kit
• Size: 3/4 in to 1 in
• Width: 4 in
• Length: 5 1/8 in
• Standards: FCCCHR, USC
• Temp. Range: 33 Degrees to 180 Degrees F
• For Use With: Mfr. 40207T2
• Max. Pressure: 175 psi
• Connection Type: Threaded
• Material: ABS
• Compatible Product Type: Backflow Preventer
• Compatible Tube Diameter - Minimum: 1/2"
• Compatible With Manufacturer Model Number: 40207T2
• Connection Gender - Side 1: Female
• Connection Gender - Side 2: Female
• Connection Size - Side 1: 1 1/2"
• Connection Size - Side 2: 2"
• Connection Type - Side 1: NPT
• Connection Type - Side 2: NPT
• Max. Operating Temperature: 180°F
• Min. Operating Temperature: 33°F
• Product Type: Air Gap Drain
• Series: AGD Series Backflow Preventers
• Item Length: 4.200
• Item Width: 3.600
• Item Height: 3.100
• Country of Origin: US
• MPN: AGD401
• Brand: APOLLO VALVES
• Suitable For Use With: Model RP40 3/4 and 1 in Reduced Pressure Backflow Preventer
