Apollo Valves AE40030 Electric Actuator 400 Lbf-in 230VAC

Product Description

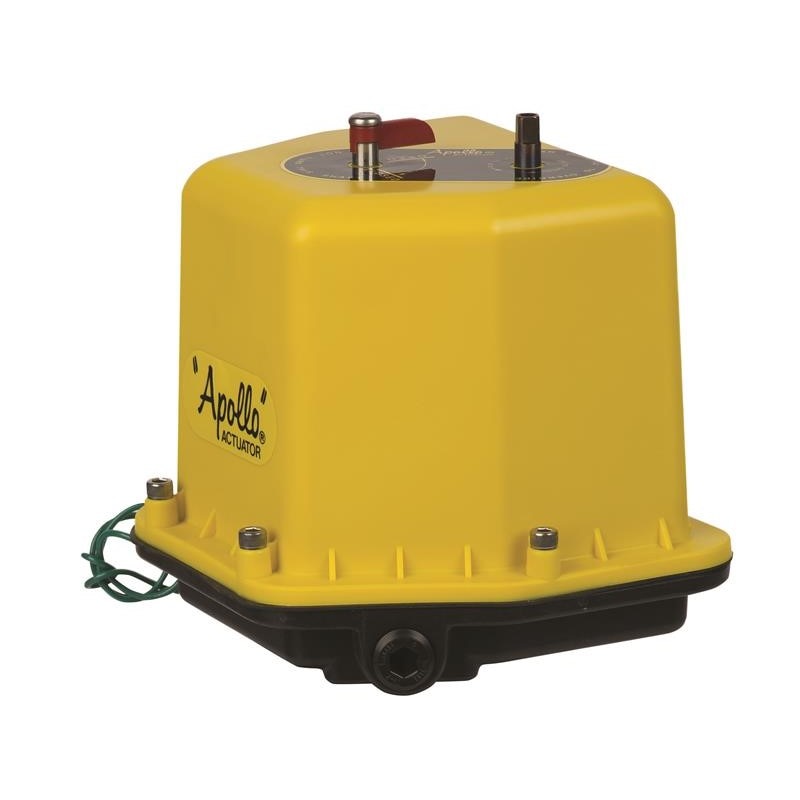

The APOLLO VALVES AE40030 is a quarter-turn electric actuator in the AE400 series, designed to automate ball valves and other quarter-turn valve assemblies in commercial and industrial piping systems. It delivers 400 lbf-in of output torque at 50 percent load and completes a 90-degree travel in approximately 10 seconds at 50 percent load. Supply voltage is 230 VAC. The die cast aluminum body with anodized finish and fiberglass reinforced nylon cover provides corrosion resistance in demanding environments. Licensed electricians and pipefitters are the primary trades that install and commission this actuator.

The AE40030 is suited for commercial and industrial valve automation applications where reliable quarter-turn actuation is required. Typical installations include water treatment, HVAC hydronic systems, industrial process piping, and general fluid handling. The operating temperature range of 32 to 150 degrees F makes it appropriate for indoor mechanical rooms and sheltered outdoor installations. The unrestricted mounting orientation allows flexible installation positioning on horizontal or vertical pipe runs.

Key Features

• 400 lbf-in output torque at 50 percent load with 90-degree travel in 10 seconds at 50 percent load
• NEMA 4 and 4X rated enclosure with fiberglass reinforced nylon cover for corrosion resistance
• Two separate 1/2 inch FNPT conduit entrances for wiring and signal separation
• ISO 5211 F07 drive output for broad mounting kit compatibility
• Built-in thermal overload protection on AC motor
• Stainless steel manual override shaft and position indicator with high visibility valve position indicator standard
• Permanently lubricated enclosed gear train with precision cut heat treated alloy spur gears

Compatibility

Designed for use with quarter-turn valves accepting an ISO 5211 F07 drive interface. Suitable for commercial and industrial quarter-turn valve automation where 230 VAC supply and NEMA 4 or 4X environmental ratings are required.

Installation Notes

Installation should be performed by a licensed electrician or qualified pipefitter. De-energize the circuit and isolate the valve from the system before mounting or wiring the actuator. Conduit connections use 1/2 inch FNPT fittings; maintain signal and power wiring in separate conduit runs per NEC guidelines. Verify supply voltage matches the 230 VAC rating before energizing.

Technical Specifications

• Output Torque: 400 lbf-in at 50 percent load
• Travel: 90 degrees
• Timing: 10 seconds at 50 percent load
• Supply Voltage: 230 VAC
• Conduit Connection: 1/2 inch FNPT (two entrances)
• Limit Switch Rating: 11 amps at 115 VAC
• Operating Temperature: 32 to 150 degrees F
• Body Material: Die Cast Aluminum, Anodized
• Cover Material: Fiberglass Reinforced Nylon
• Seals: Nitrile
• Drive Output: ISO 5211 F07
• Enclosure Rating: NEMA 4, 4X
• Weight: 10.5 pounds
• Country of Origin: Domestic

Standard Information

• Brand: APOLLO VALVES
• Manufacturer Part Number: AE40030
