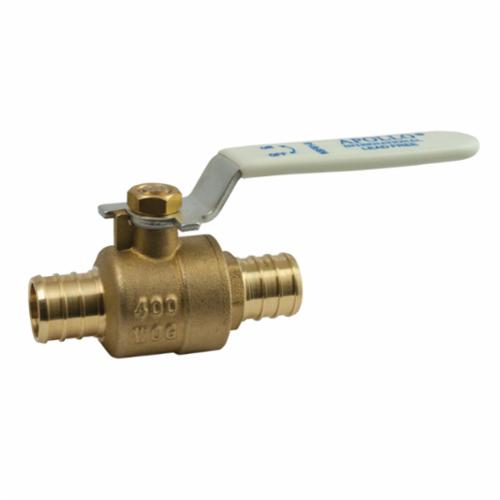

Apollo Valves 94XLF10501 Ball Valve, 1 in, PEX Barb, Brass Body

Product Description

The Apollo Valves 94XLF10501 ball valve features a 1-inch PEX barb and a brass body. These lead-free DZR forged brass ball valves combine reliable operation with maximum economy. Ideal for plumbing and heating applications including potable water and intended for ASTM F1807 crimp installation into PEX B & C piping systems.

• Lead Free DZR Materials and Certification
• ASTM F1807 PEX Design
• White Handle Grip Identifies Lead Free Construction

Product Highlights

This ball valve is ANSI 3rd party lead free certified and listed to NSF 14, NSF 61, and NSF 372.

Product Information

Standard Information

• Brand: APOLLO VALVES
• Manufacturer Part Number: 94XLF10501
• Country of Origin: United States

Technical Specifications

• Materials: Brass
• Product Group: Valves ()
• ETIM Class: EC011343 Ball valve
• Brand: Apollo
• Series: 94X Series Ball Valves
• Product Type: 94XLF10001
• Housing material: Brass
• Outer pipe diameter connection 1: 21.84mm
• Outer pipe diameter connection 1 (imperial): 0.86"
• Outer pipe diameter connection 2: 21.84mm
• Outer pipe diameter connection 2 (imperial): 0.86"
• With filter: No
• FM quality mark: No
• UL quality mark: No
• ULC quality mark: No
• LPCB quality mark: No
• Medically clean: No
• Grease-free: No
• Housing construction: 2-part
• Length of connection 1: 38.1mm
• Length of connection 1 (imperial): 1.5"
• Working length connection 1: 18.8mm
• Working length connection 1 (imperial): 0.74"
• Length of connection 2: 44.96mm
• Length of connection 2 (imperial): 1.77"
• Working length connection 2: 28.45mm
• Working length connection 2 (imperial): 1.12"
• Handle height: 14.48mm
• Handle height (imperial): 0.57"
• Handgrip length: 89.92mm
• Handgrip length (imperial): 3.54"
• VdS quality mark: No
• DVGW quality mark for gas: No
• DVGW quality mark for water: No
• KIWA certified: No
• ANSI: ANSI 61, ANSI 372, ANSI 14
• ASME: No
• ASSE Standards: No
• ASTM: ASTM F-1807
• AWWA: No
• CSA Certified: No
• Clean Bagged: No
• Collection: 94XLF Series
• End Connection 1: PEX
• End Connection 2: PEX
• End Connections: PEX x PEX
• FM Approved: No
• Fire Suppression System Rated: No
• Handle Material: Steel
• IAPMO Listed: Yes
• ISO: No
• Lead Law Compliance Level: Lead Law Compliant and Certified
• Lead Law Compliant: Yes
• MA Approved: No
• MSS: No
• Material Type: DZR
• Maximum Temperature: 200
• Minimum Temperature: -20
• NSF: NSF 14, NSF 372, NSF 61
• NSF Certified: Yes
• Origin: Domestic
• Pressure - Maximum: 160 psi
• Pressure Class: 160#
• Recommended Valve Application: Potable Water
• Temperature Range: -20 to 200 Deg F
• UL Listed: No
• UPC: 670750061516
• Valve Body Material: Brass
• Valve Body Style: Flanged
• Valve Disc Material: Brass
• Valve Operator: Lever Handle
• Valve Port Opening: Standard Port
• Valve Seat Material: MPTFE
• Valve Size: 1 in
• Valve Stem: Blowout-proof
• Valve Type: Ball Valve
• Weight: 0.57
• cUPC Certified: Yes
• Proposition 65: WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov
