Product Description

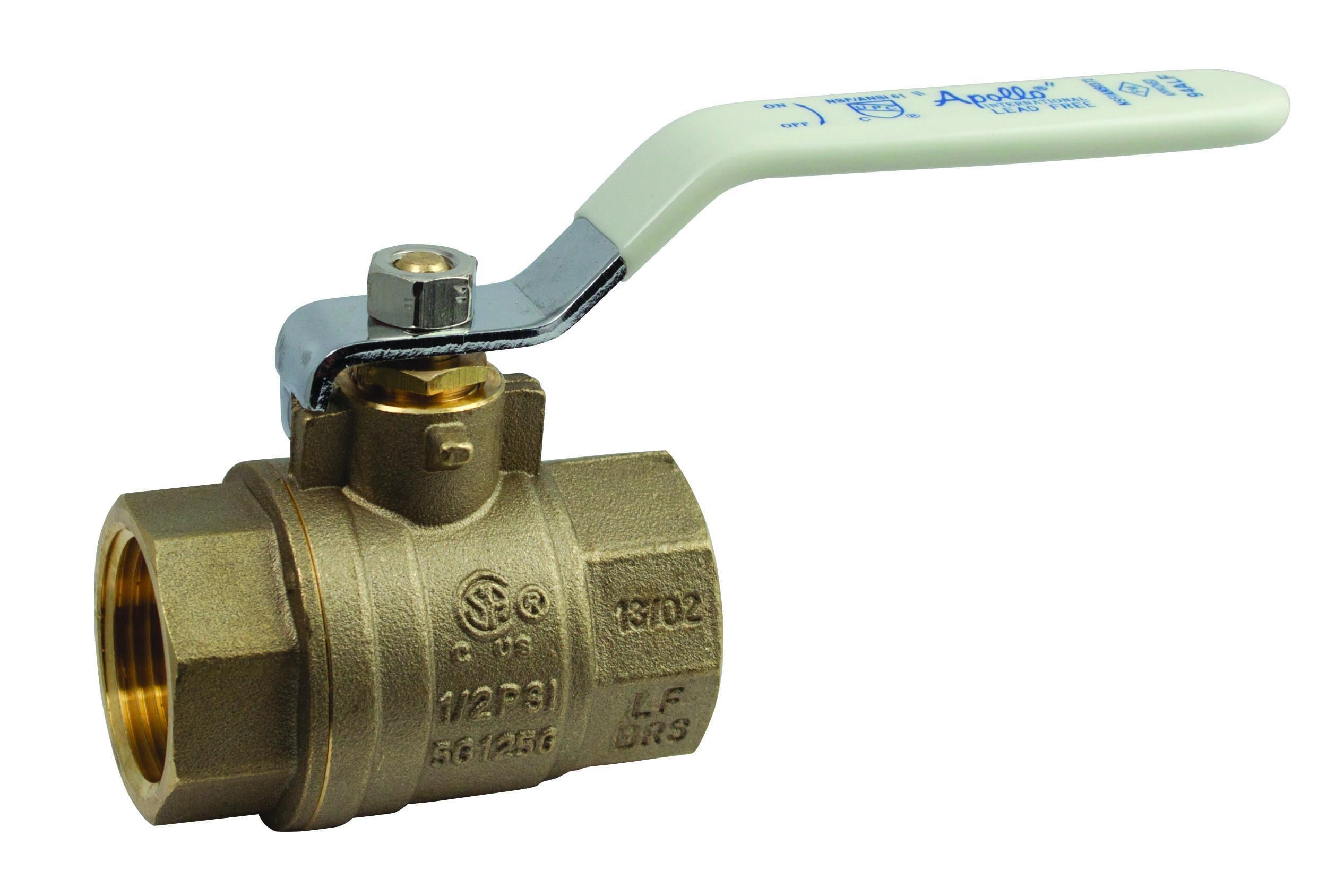

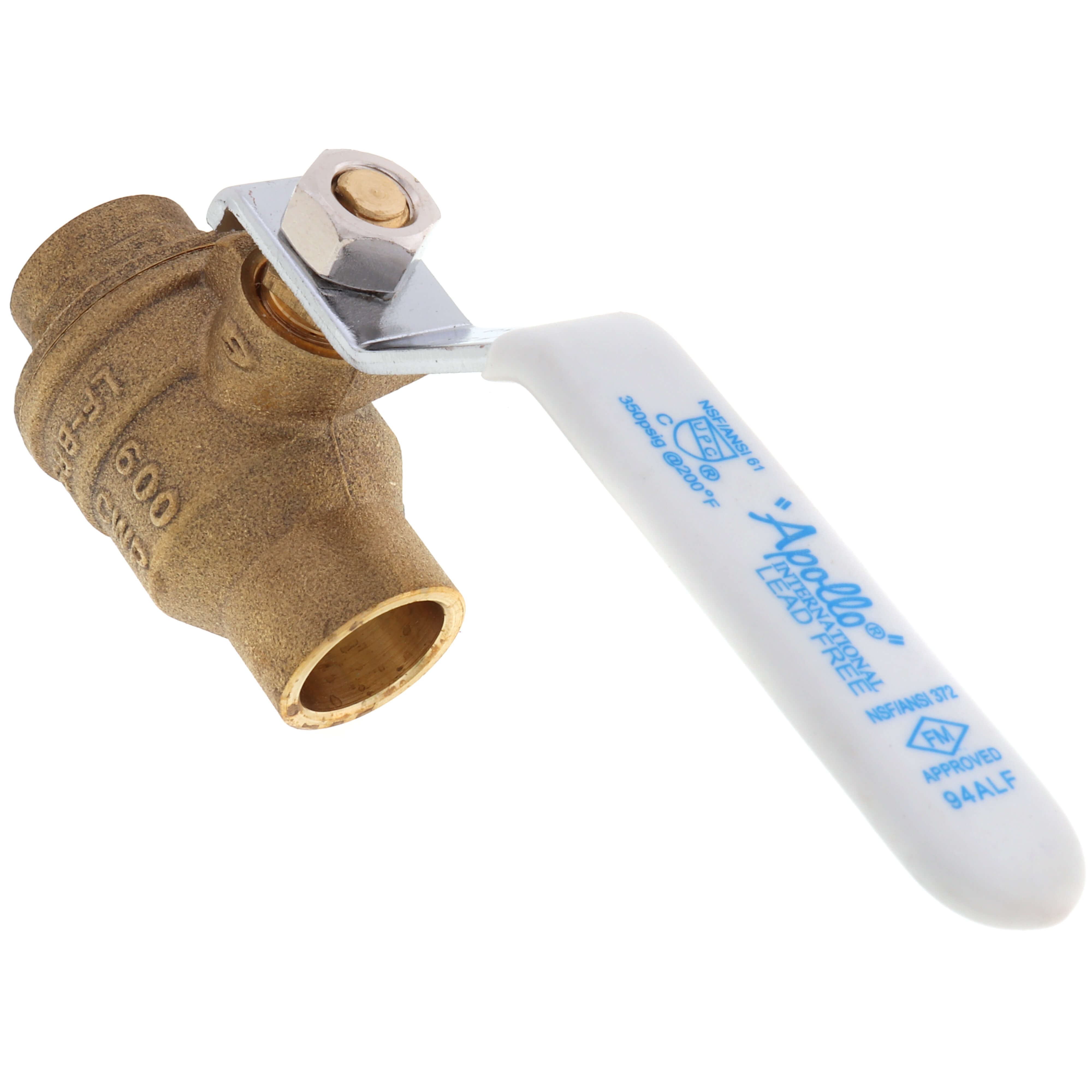

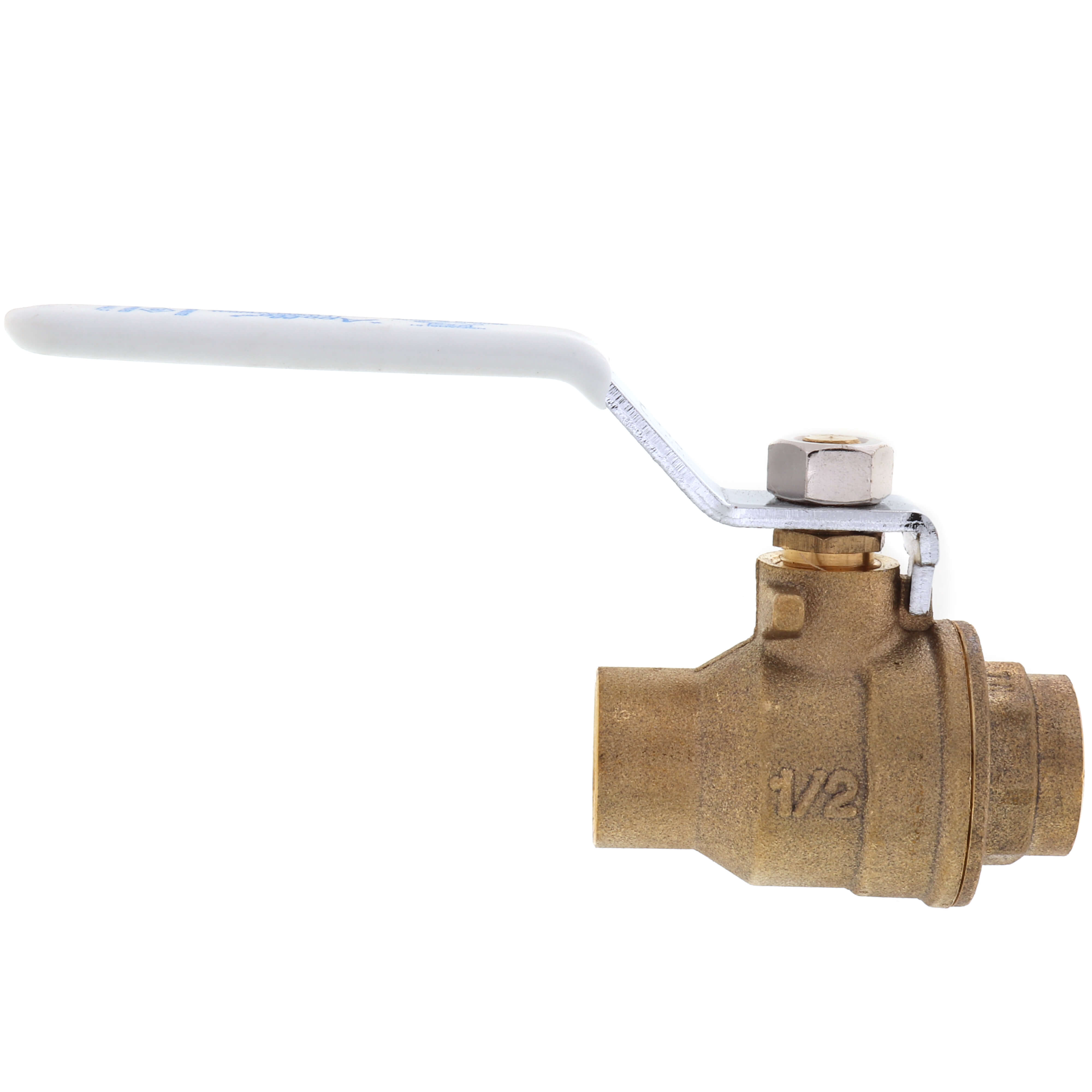

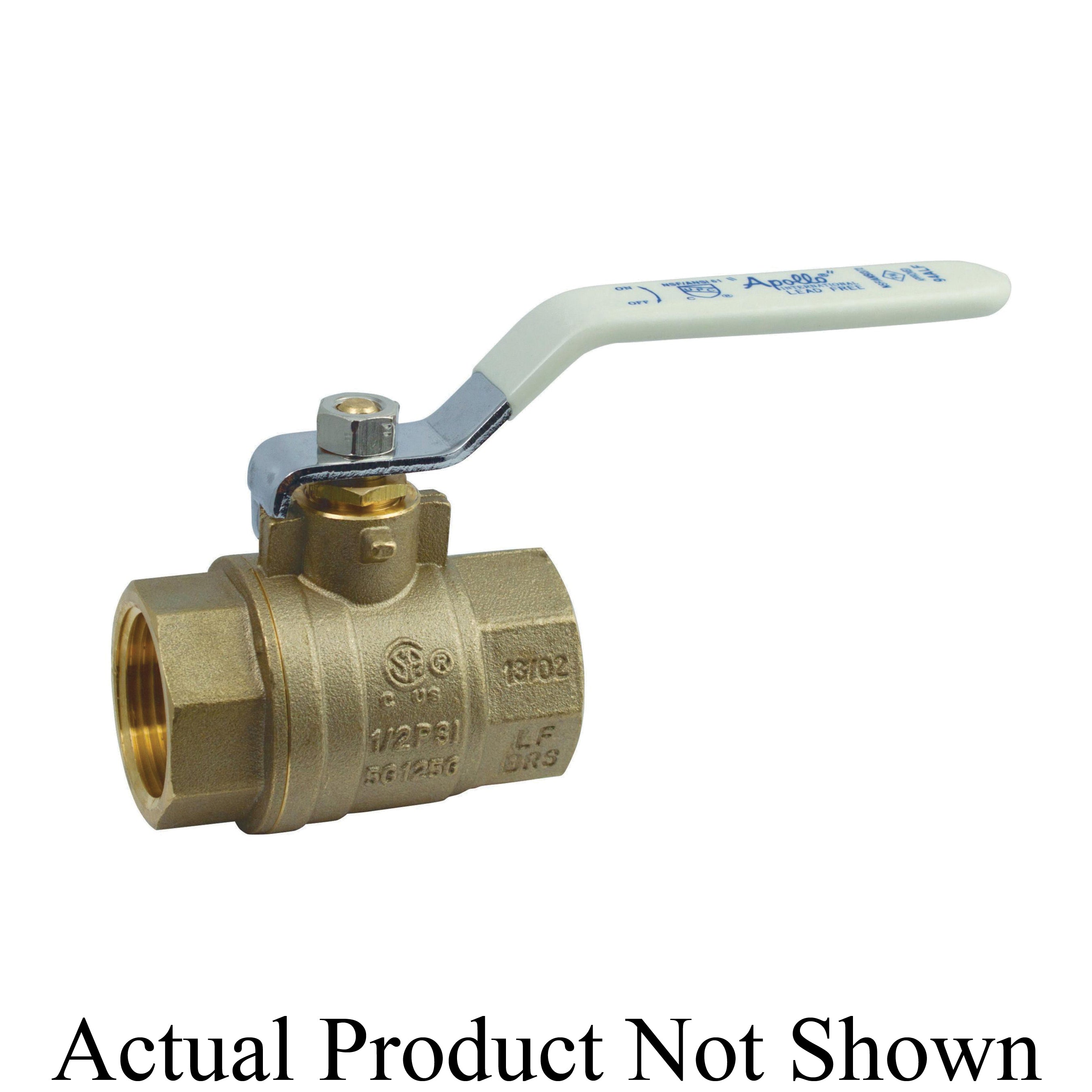

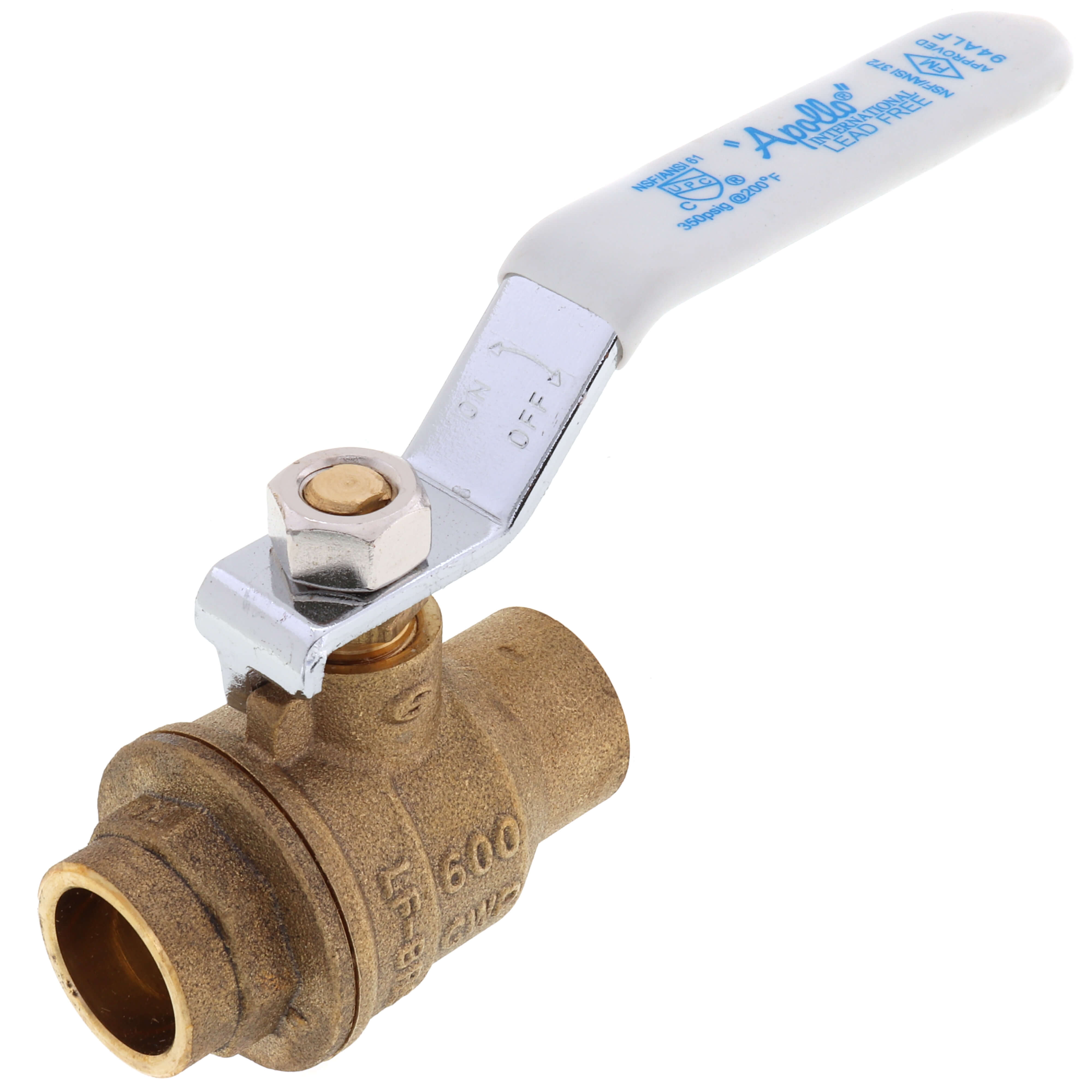

The APOLLO VALVES 94ALF20301A is a 94ALF-A series lead free forged brass ball valve that combines reliable operation with maximum economy. It is ideal for gas, fuels, fire protection, general plumbing, and HVAC applications including potable water. This valve features multi-agency approvals and is ANSI 3rd party lead free certified.
- Distinctive white lead-free handle grip
- 100% factory tested
- EZ-Solder lead free materials
Product Highlights
This ball valve features a 2-piece, full port design with a blowout-proof stem and adjustable stem packing nut.
Product Information
Standard Information
-
Brand: APOLLO VALVES
-
Manufacturer Part Number: 94ALF20301A
-
Country of Origin: Vietnam
Technical Specifications
-
Size: 1/2"
-
Connection Type: C x C
-
Connection Method: Sweat
-
Material: Brass
-
Handle Style: Lever
-
Application: Ideal for Gas, Fuels, Fire Protection, General Plumbing and HVAC
-
Lead Free: Yes
-
Valve Construction: 2 piece
-
MPN: 94ALF20301A
-
Brand: APOLLO VALVES
-
Port Type: Full Port
-
Housing material: Brass
-
Material ball: Brass
-
Material spindle: Brass
-
Nominal diameter connection 1: DN 15
-
Outer pipe diameter connection 1: 16mm
-
Outer pipe diameter connection 1 (imperial): 0.63"
-
Connection 1: Soldered sleeve
-
Nominal diameter connection 2: DN 15
-
Outer pipe diameter connection 2: 16mm
-
Outer pipe diameter connection 2 (imperial): 0.63"
-
Connection 2: Soldered sleeve
-
With filter: No
-
FM quality mark: No
-
UL quality mark: No
-
ULC quality mark: No
-
LPCB quality mark: No
-
Medically clean: No
-
Grease-free: No
-
Housing construction: 2-part
-
Full bore: Yes
-
Length of connection 1: 27.43mm
-
Length of connection 1 (imperial): 1.08"
-
Working length connection 1: 14.48mm
-
Working length connection 1 (imperial): 0.57"
-
Length of connection 2: 25.91mm
-
Length of connection 2 (imperial): 1.02"
-
Working length connection 2: 12.95mm
-
Working length connection 2 (imperial): 0.51"
-
Handle height: 20.32mm
-
Handle height (imperial): 0.8"
-
Handgrip length: 12.45mm
-
Handgrip length (imperial): 0.49"
-
VdS quality mark: No
-
DVGW quality mark for gas: No
-
DVGW quality mark for water: No
-
KIWA certified: No
-
Inlet Diameter (In.): 1/2
-
Nominal Size: 1/2 in
-
End Style: Solder
-
Pressure Rating: 600 psi CWP
-
Body Material: Lead Free Brass
-
Softgoods Material: PTFE
-
Actuator Type: Lever Operated
-
Ball Material: Chrome Plated Brass
-
Inlet to Outlet Length: 2.05 in
-
Manufacturer Name: Apollo Conbraco
-
Media: Gas/Fuel/Water
-
Series: 94ALF-A
-
Temperature Rating: 0 to 400 deg F
-
Top to Inlet Center: 1.84 in
-
Trim Material: Brass Stem and PTFE Seat
-
Type: 2-Piece
-
Standards and Approvals: IAPMO IGC 157 | FM Approved | Lead-Free Compliant | MSS SP-110 | NSF/ANSI 61-8 Annex F and G | NSF/ANSI 372 Lead-Free | UL YQNZ/YRBX/YRPV/YSDT/MHKZ | PROP65: Cancer and Reproductive Harm
-
Model: 94ALF20301A
-
Temperature Range: 0 F to 400 F
-
Certifications: ANSI 3rd Party Lead Free Certified, NSF/ANSI 61, NSF/ANSI 372
-
ANSI: ANSI 372, ANSI 61, ANSI Z1157, ANSI Z21.15
-
ASME: ASME B16.33, ASME B16.44
-
CSA Certified: CSA 9.1
-
Clean Bagged: No
-
Collection: 94ALF-A Series
-
End Connection 1: Sweat
-
End Connection 2: Sweat
-
End Connections: Sweat
-
FM Approved: Yes
-
Fire Suppression System Rated: No
-
Handle Material: Steel
-
IAPMO Listed: Yes
-
Lead Law Compliance Level: Lead Law Compliant and Certified
-
Lead Law Compliant: Yes
-
MA Approved: No
-
MSS: MSS SP-110
-
Material Type: PTFE, DZR
-
Maximum Temperature: 400
-
NSF: NSF 372, NSF 61
-
NSF Certified: Yes
-
Origin: Global
-
Pressure Class: 600#
-
Proposition 65: WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov
-
Recommended Valve Application: Potable Water, HVAC, Gas, Fuel, Fire Protection
-
Valve Body Material: DZR Brass
-
Valve Body Style: 2 piece
-
Valve Operator: Lever Handle
-
Valve Port Opening: Full Port
-
Valve Seat Material: PTFE
-
Valve Size: 1/2 in
-
Valve Stem: Blowout-proof
-
Valve Type: Ball Valve
-
Weight: 0.4
-
cUPC Certified: No
-
d1: 16.0
-
DN1: 1/2"
-
l1: 27
-
z1: 14
-
d2: 16.0
-
DN2: 1/2"
-
l2: 26
-
z2: 13
-
M1: 12
-
M2: 97
-
E: 16
-
Y: 20
-
V: 27
-
U: 17
-
D1: 20
