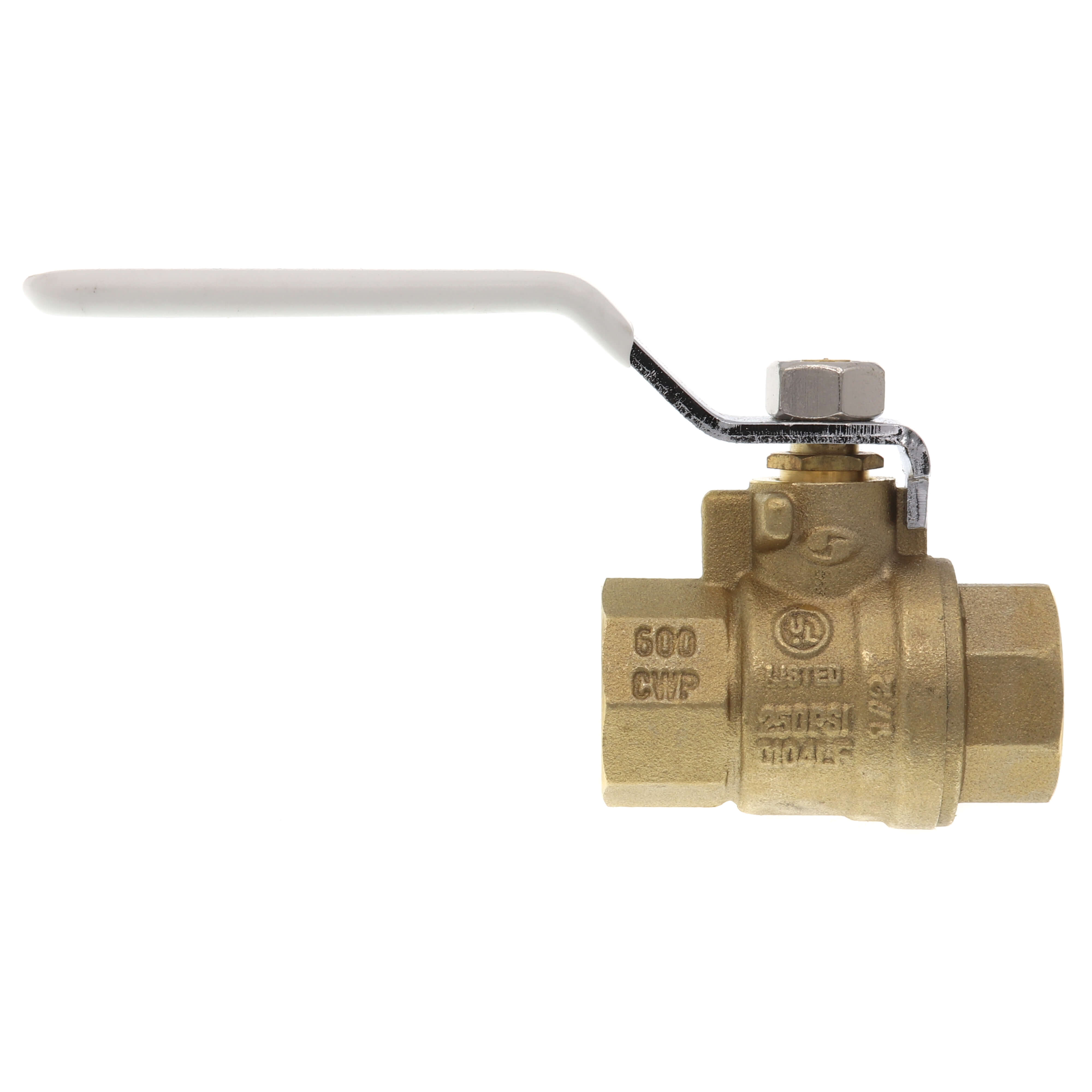

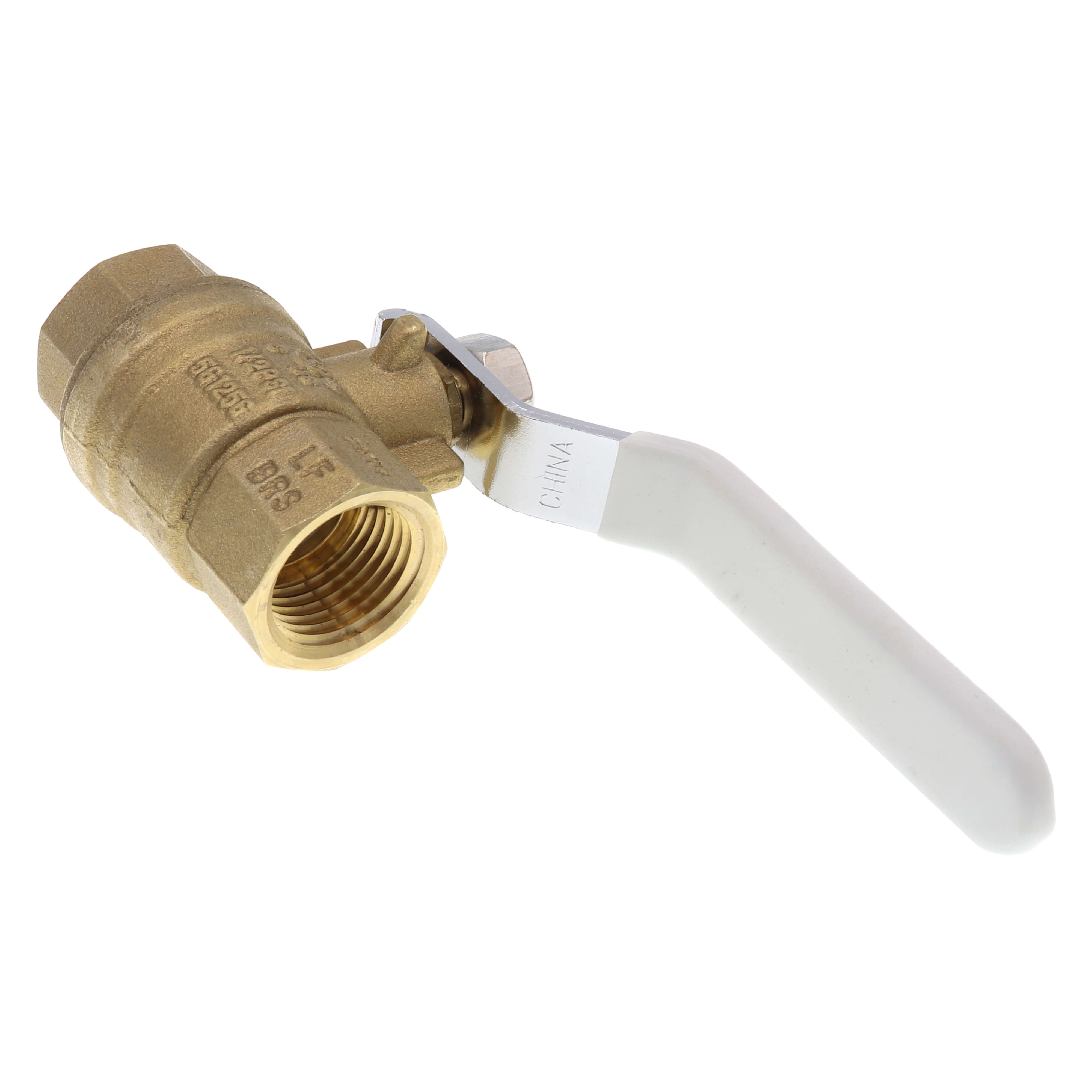

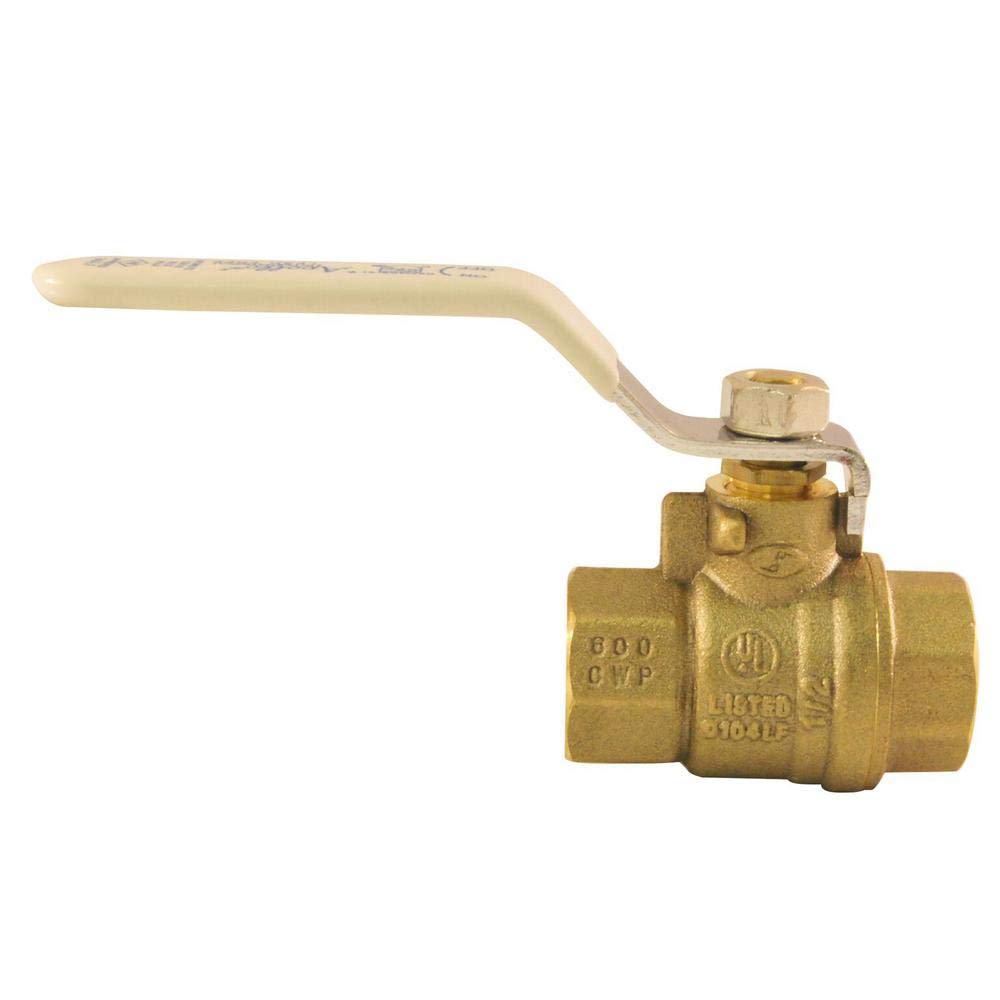

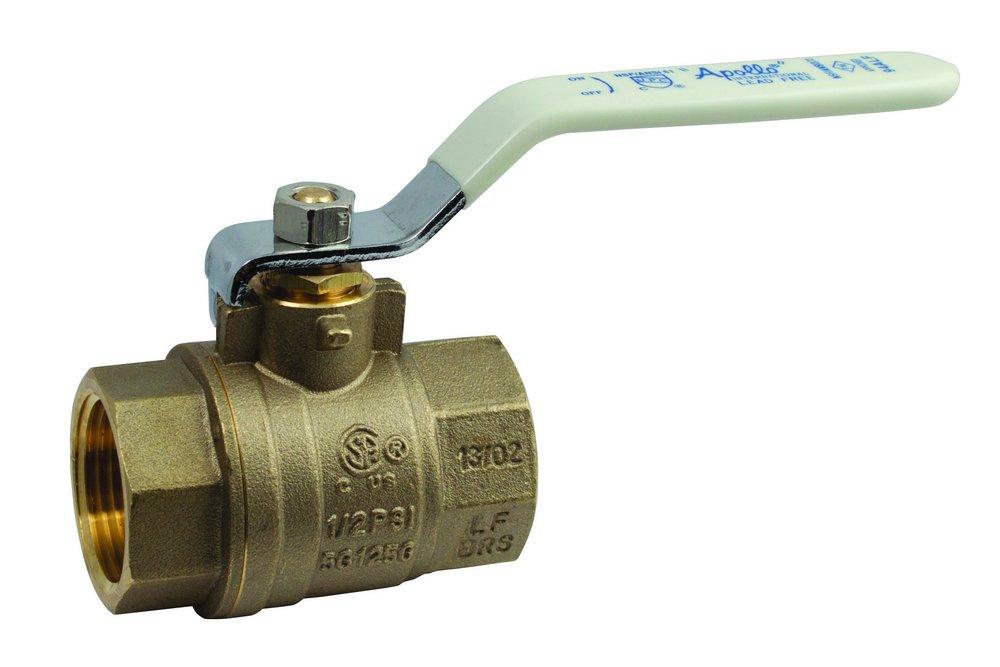

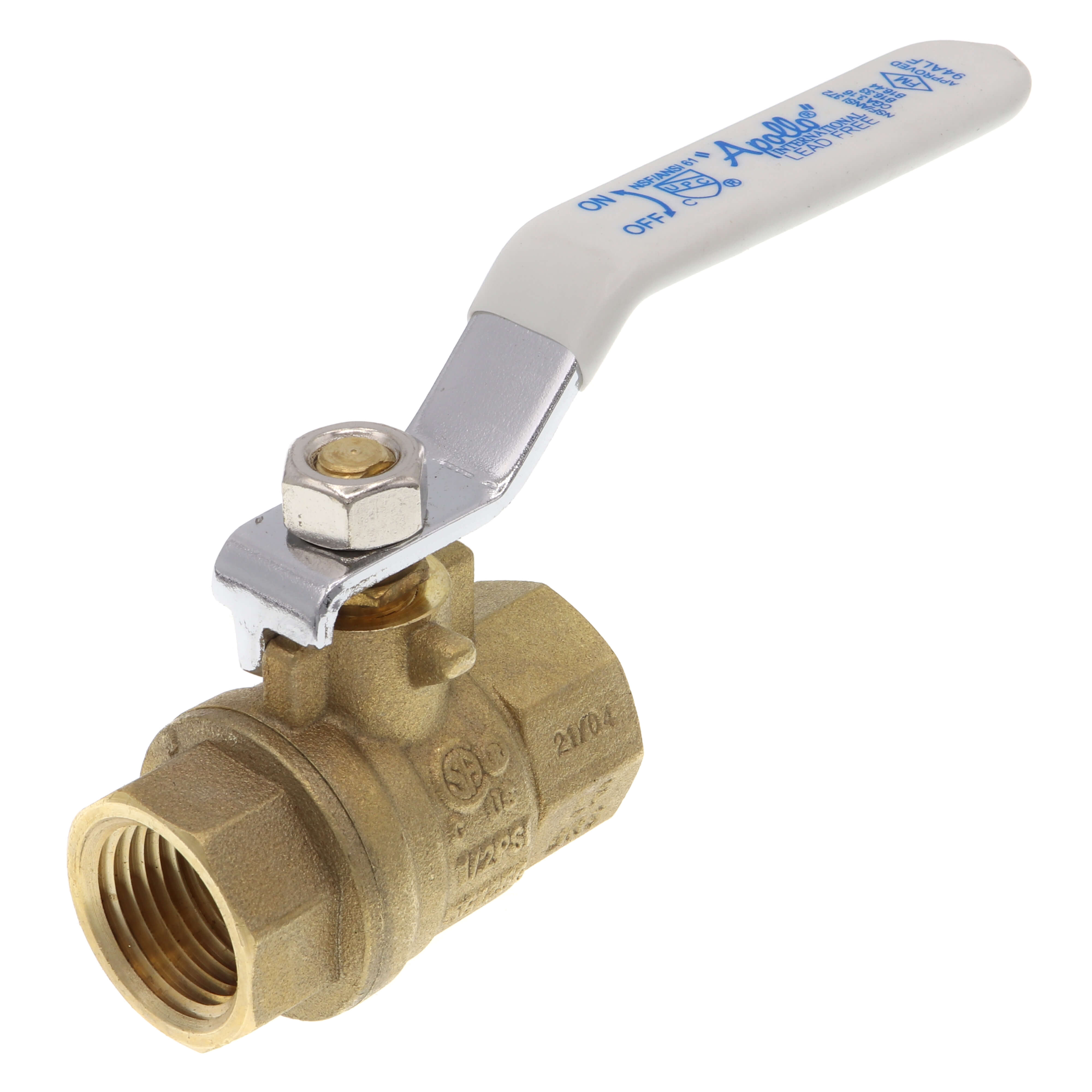

Apollo Valves 94ALF10301A 94ALF-A Series 1/2 in. Brass Full Port NPT 600# Ball Valve

Product Description

The APOLLO VALVES 94ALF10301A is a 94ALF-A Series 1/2 in. brass full port NPT 600# ball valve. It features a distinctive white lead-free handle grip and is 100% factory tested. This valve is ideal for commercial, fire protection, general plumbing, HVAC, and potable water applications.

• Distinctive white lead-free handle grip
• 100% factory tested
• EZ solder lead-free materials

Product Highlights

This lead-free ball valve with forged DZR brass body is ideal for plumbing and heating, fuel gas, fire protection and other general purpose applications.

Product Information

Standard Information

• Brand: APOLLO VALVES
• Manufacturer Part Number: 94ALF10301A
• Country of Origin: Domestic

Technical Specifications

• Size: 1/2"
• Connection Type: FNPT x FNPT
• Connection Method: Threaded
• Material: Brass
• Handle Style: Lever
• Application: Plumbing
• Lead Free: Yes
• Features: Standard
• Valve Construction: 2 piece
• Item: Ball Valve
• Body Material: Brass
• Port: Full
• Max. Pressure: 600 CWP
• Ball Material: Lead Free Brass, Chrome Plated
• Temperature Range: -20 F - 366 F
• Handle Material: Steel with Corrosion Resistant Plating
• Seat Ring: PTFE
• Stem Seal: PTFE
• Stem Type: Blowout Proof
• Stem Material: Lead Free Brass
• Specs Designed To: MSS SP-100 with CSA, UL, FM, and NSF 61 Approvals
• ANSI: ANSI Z21.15
• ASME: ASME B16.33
• CSA Certified: CSA 9.1
• Clean Bagged: No
• Collection: 94ALF-A Series
• End Connection 1: FPT
• End Connection 2: FPT
• End Connections: FPT
• FM Approved: Yes
• IAPMO Listed: Yes
• Lead Law Compliance Level: Lead Law Compliant and Certified
• Lead Law Compliant: Yes
• MSS: MSS SP-110
• Maximum Temperature: 400
• NSF: NSF 372, NSF 61
• NSF Certified: Yes
• Origin: Domestic
• Pressure - High: 600
• Pressure Class: 600#
• Recommended Valve Application: Potable Water, HVAC, Gas, Fuel, Fire Protection
• UL Listed: UL 258
• Valve Body Material: Forged Brass
• Valve Body Style: 2 piece
• Valve Disc Material: Brass
• Valve Operator: Lever Handle
• Valve Port Opening: Full Port
• Valve Seat Material: PTFE
• Valve Size: 1/2 in
• Valve Stem: Blowout-proof
• Valve Type: Ball Valve
• Actuator Type: Lever Operated
• End Style: FNPT
• Media: Gas/Fuel/Water
• Nominal Size: 1/2 In
• Port Type: Full
• Pressure Rating: 600 psi CWP
• Series: 94ALF-A
• Softgoods Material: PTFE
• Temperature Rating: -20 to 366 deg F
• Trim Material: Brass Stem and PTFE Seat
• Type: 2-Piece
