Apollo 94ALF20001A 3 Soldered x Soldered Full Port Ball Valve

Product Description

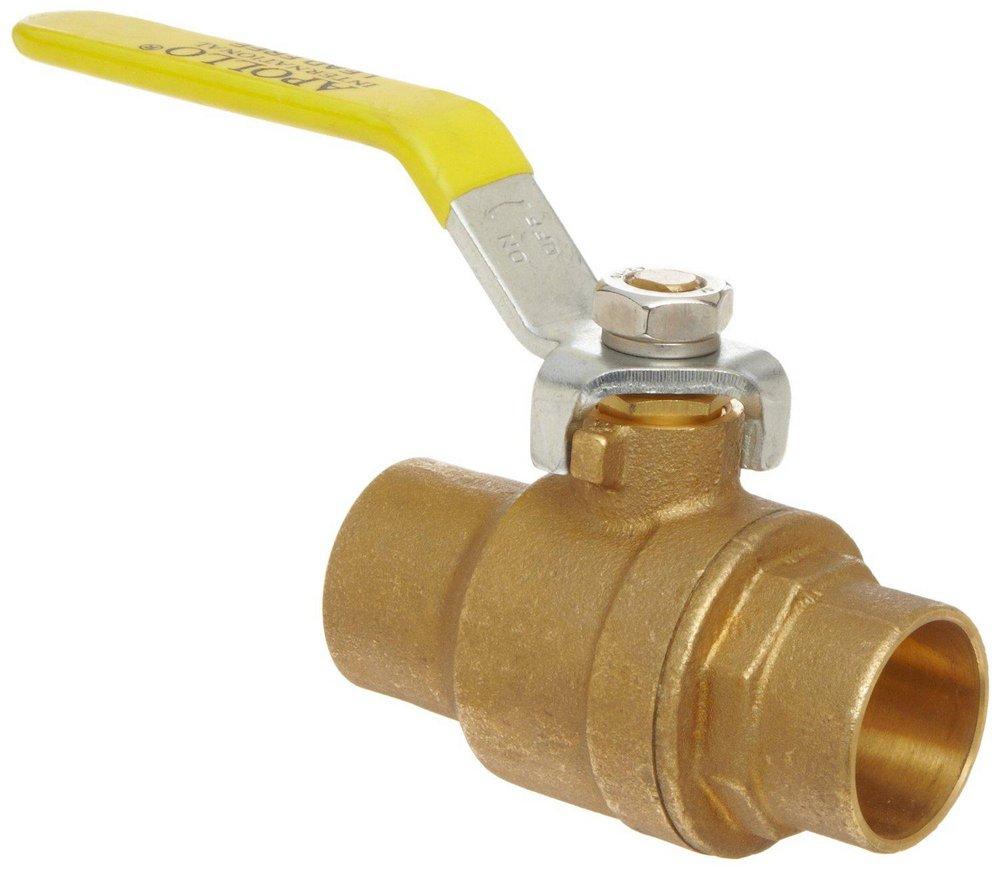

The Apollo 94ALF20001A is a 3-inch soldered x soldered ball valve made from lead-free materials. This valve has a maximum pressure rating of 400 PSI and is constructed with a 316 stainless steel ball and a dezincification resistant brass body. It is ideal for use in general plumbing, HVAC, and potable water applications.

• 2-piece construction with lever handle actuation
• Temperature rating of zero to four hundred degrees Fahrenheit
• Adjustable stem packing for enhanced reliability

Product Highlights

This valve features a full port design for maximum flow efficiency and is suitable for use with gas, fuel, and fire protection systems.

Product Information

Standard Information

• Brand: Apollo
• Pressure Rating: 400 PSI CWP

Technical Specifications

• Nominal Size: 3 inches
• End Connection: Soldered x Soldered
• End to End Distance: 7.15 inches
• Ball Material: 316 Stainless Steel
• Body Material: Dezincification Resistant Brass
• Stem Material: C36000 Brass
• Seal Material: PTFE
• Port Type: Full
• Temperature Rating: 0 to 400 Deg F
• Applicable Standards: ANSI Z21.15, MSS SP-110, NSF/ANSI 61/372, IAPMO IGC 157, ISO 9001, CUPC, UL, CSA, FM
• Inclusions/Features: Adjustable Stem Packing Nut, Blowout Proof Stem
