Product Description

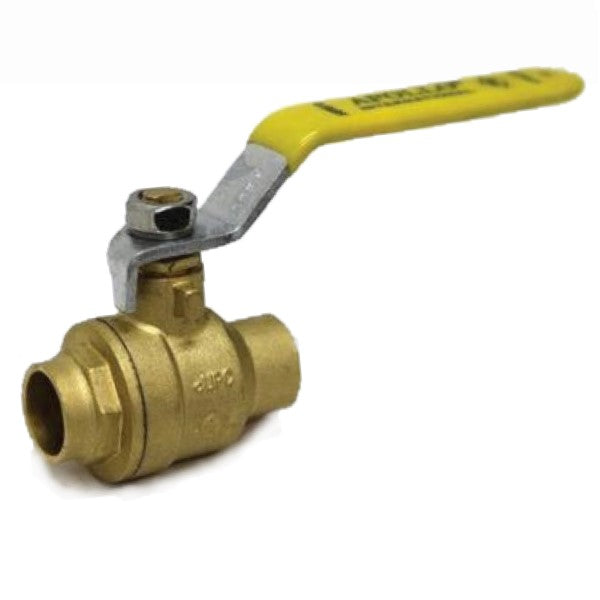

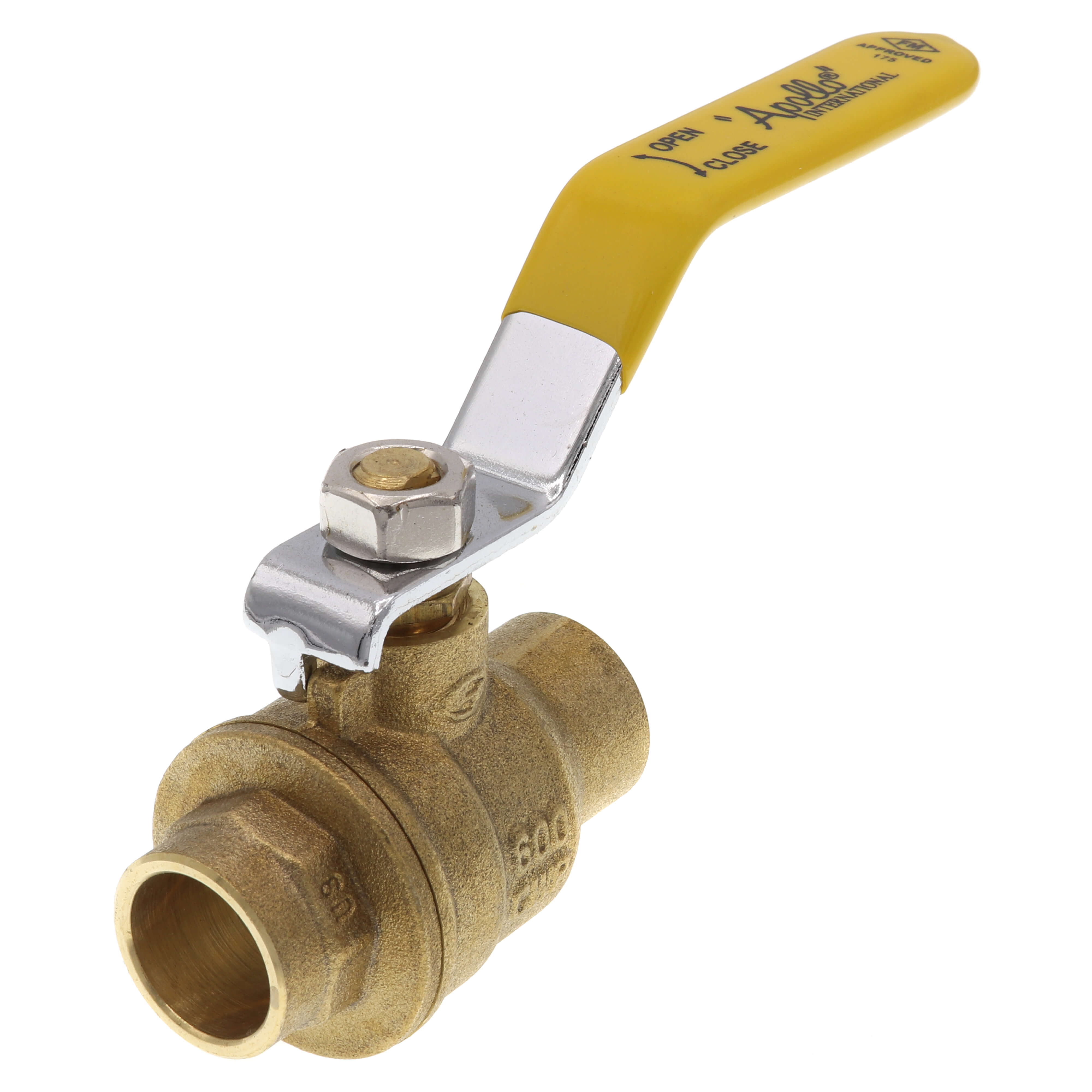

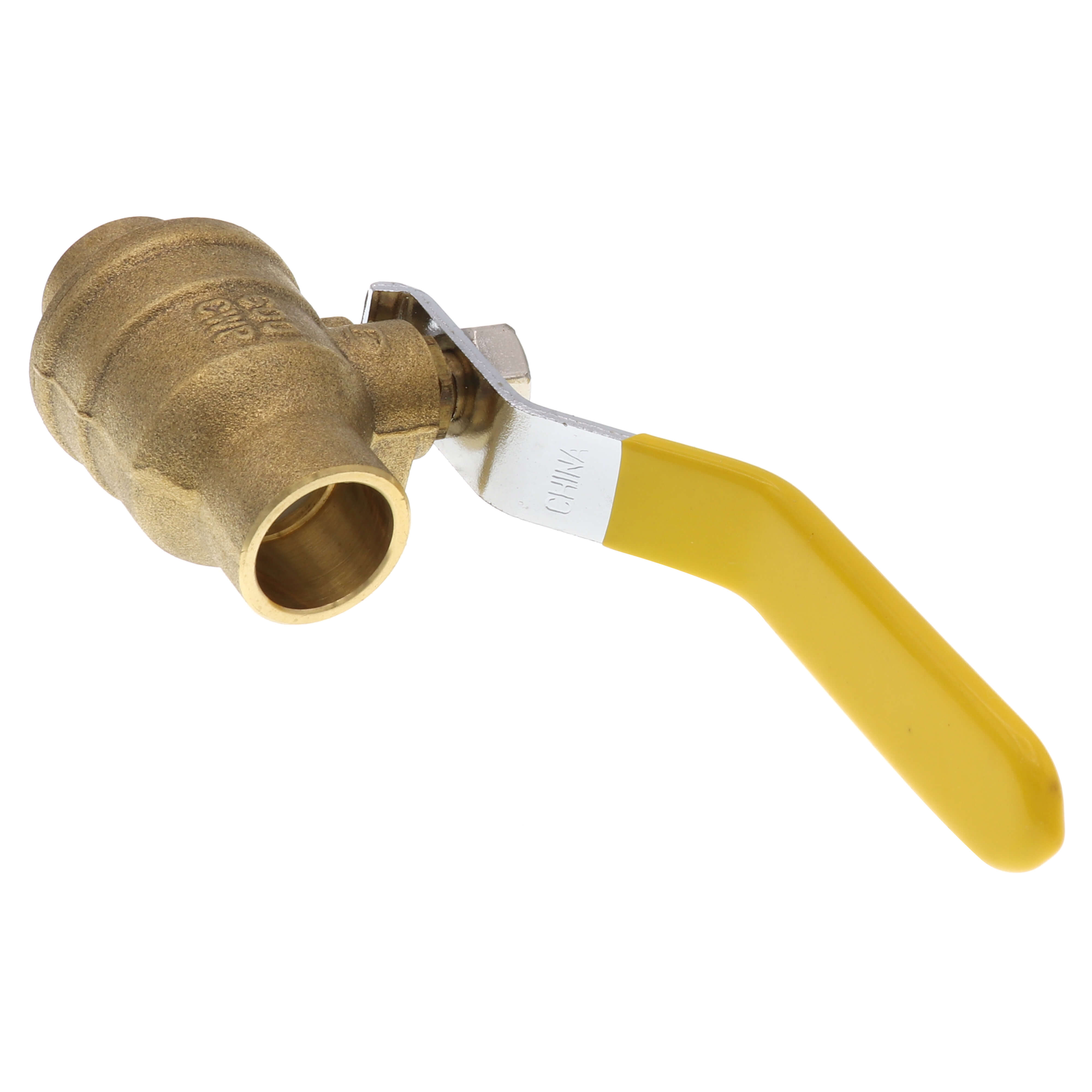

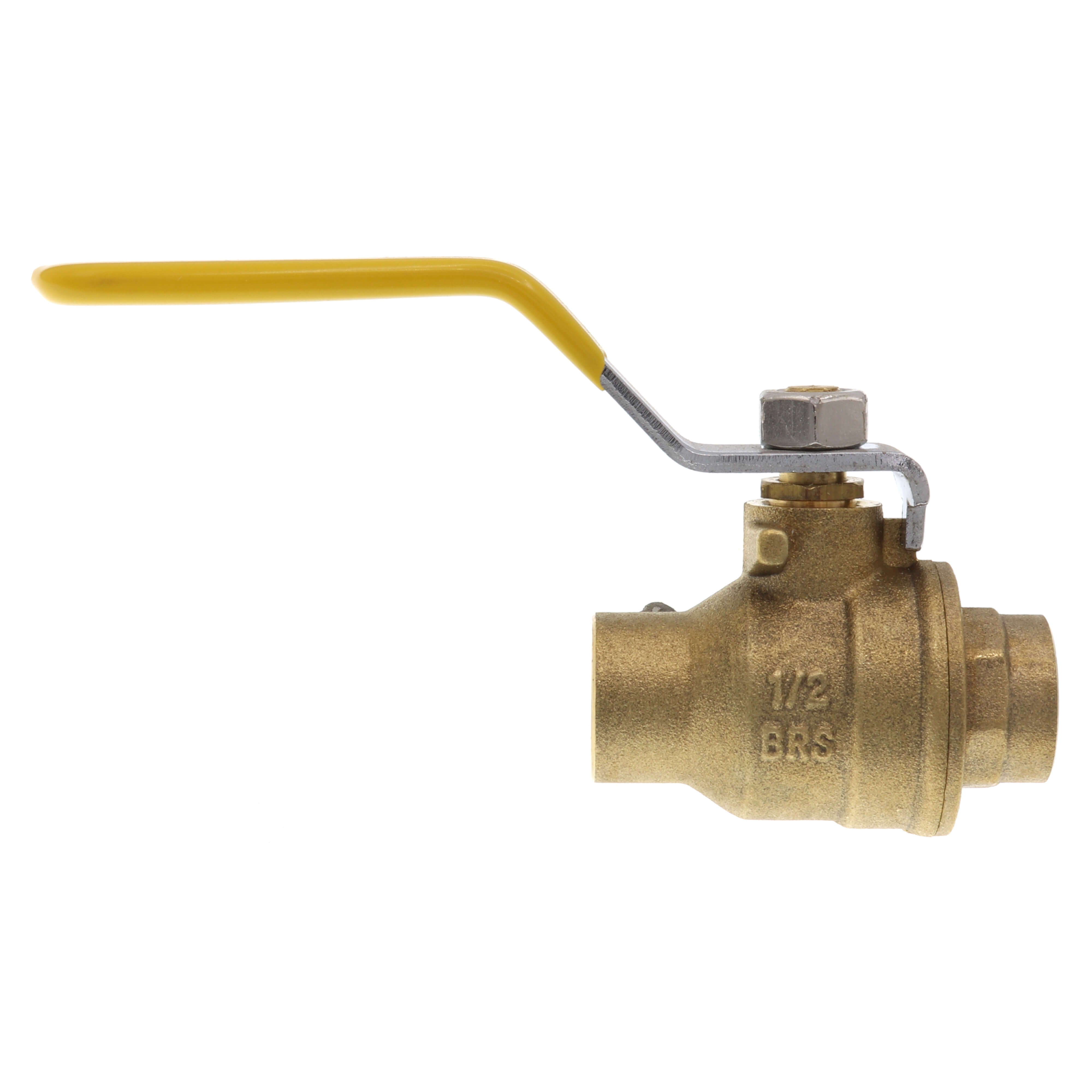

The Apollo Valves 94A20301 is a brass ball valve with a 1/2" solder connection. This 2-piece ball valve is designed for reliable operation and maximum economy in general flow control applications, including HVAC, fuel gases, and fire protection. It features a full port and a lever handle.
- Full port design for optimal flow
- Maximum pressure of 600 PSI CWP
- Temperature range of 0 to 400 degrees F
Product Highlights
This Apollo ball valve is ideal for HVAC, fuel gases, and fire protection systems.
Product Information
Standard Information
-
Brand: APOLLO VALVES
-
Manufacturer Part Number: 94A20301
-
Country of Origin: China
Technical Specifications
-
MPN: 94A20301
-
Brand: APOLLO VALVES
-
Size: 1/2"
-
Material: Brass
-
Port Type: Full Port
-
Handle Style: Lever
-
Max Pressure (PSI): 600
-
Valve Construction: 2 piece
-
Standards: CSA, UL
-
Stem Type: Blowout Proof
-
Temp. Range: 0 Degrees to 400 Degrees F
-
Ball Material: Chrome Plated Brass
-
Seat Material: PTFE
-
Stem Material: Brass
-
Overall Length: 4.57 in
-
Valve Structure: 2-Piece
-
General Connection Type: Sweat
-
Body Material: Brass
-
Nominal Size: 1/2 in
-
End Style: Solder
-
Pressure Rating: 600 psi CWP
-
Actuator Type: Lever Operated
-
Inlet to Outlet Length: 2.05 in
-
Temperature Rating: 0 to 400 deg F
-
Top to Inlet Center: 1.84 in
-
Trim Material: Brass Stem and PTFE Seat
-
Housing material: Brass
-
Material ball: Brass
-
Material spindle: Brass
-
Connection 1: Soldered sleeve
-
Connection 2: Soldered sleeve
-
Full bore: Yes
-
Item: Ball Valve
-
Handle Material: Steel with Corrosion Resistant Plating
-
Approvals: UL, CSA, NSF, FM, MSS SP-100 (See Spec Sheet)
-
Country of Origin: China
