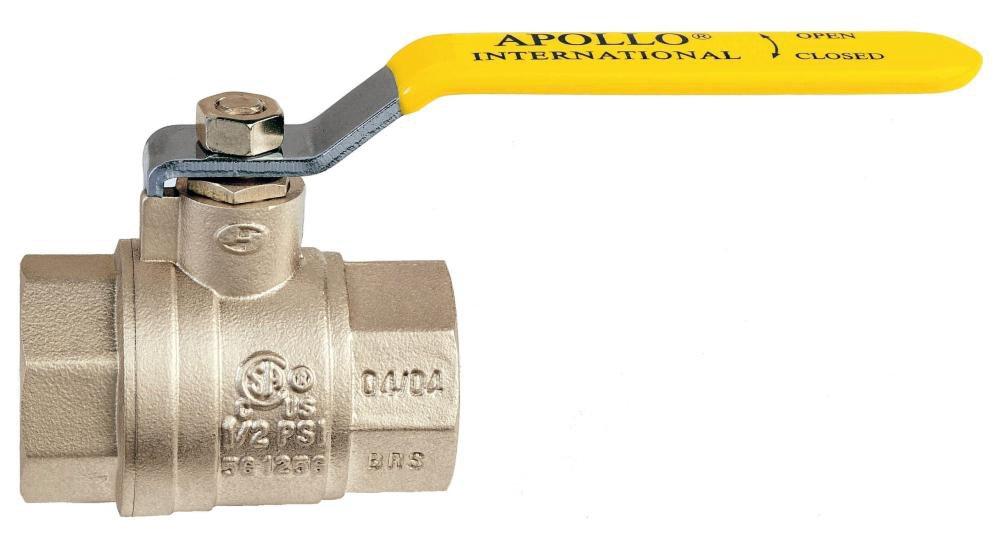

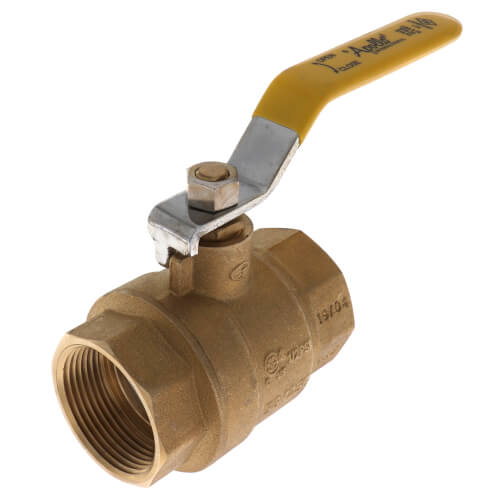

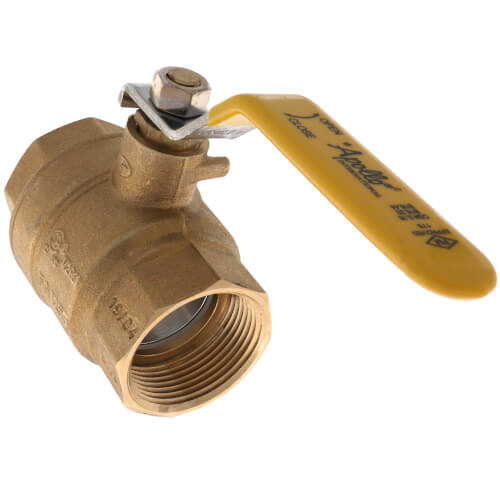

Apollo Valves 94A10601 94A Series 1-1/4 in. Forged Brass Full Port NPT 600# Ball Valve

Product Description

The Apollo Valves 94A series is a one and one-fourth inch forged brass ball valve designed for various applications, including HVAC systems, fuel gas lines, and fire protection systems. This valve features a full port design, providing maximum flow capacity and efficiency. It has a NPT connection type and is rated for a maximum pressure of six hundred PSI. The valve has undergone 100% factory testing to ensure reliability and performance.

• Fully forged brass construction
• Two-piece ball valve design
• Compatible with various flow control applications

Product Highlights

Durable and efficient ball valve suitable for commercial and residential plumbing.

Product Information

Standard Information

• Brand: Apollo Valves
• MPN: 94A10601

Technical Specifications

• Ball Material: Chrome-Plated Brass
• Connection Size: 1-1/4 in
• Connection Type: NPT
• Dimension: 3.31 in L
• Flow Coefficient: 25 Cv
• Item Name: Ball Valve
• Material: Brass
• Model: 94A-100
• Operator Type: Plated Steel with PVC Grip Handle
• Pressure Rating: 600 psi CWP
• Seat Material: PTFE
• Series: 94A
• Stem Material: Chrome-Plated Brass
• Temperature Rating: 0 - 400 deg F
• Type: 2-Piece, Full-Port
