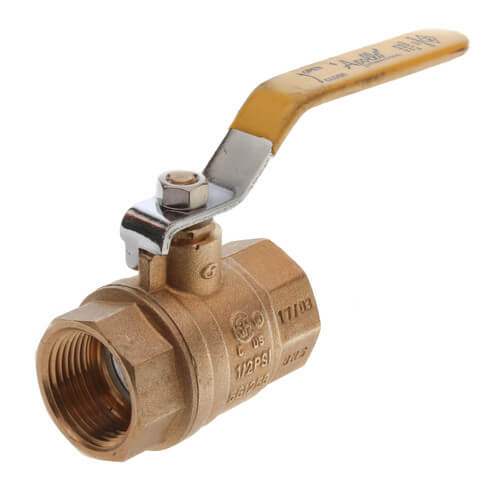

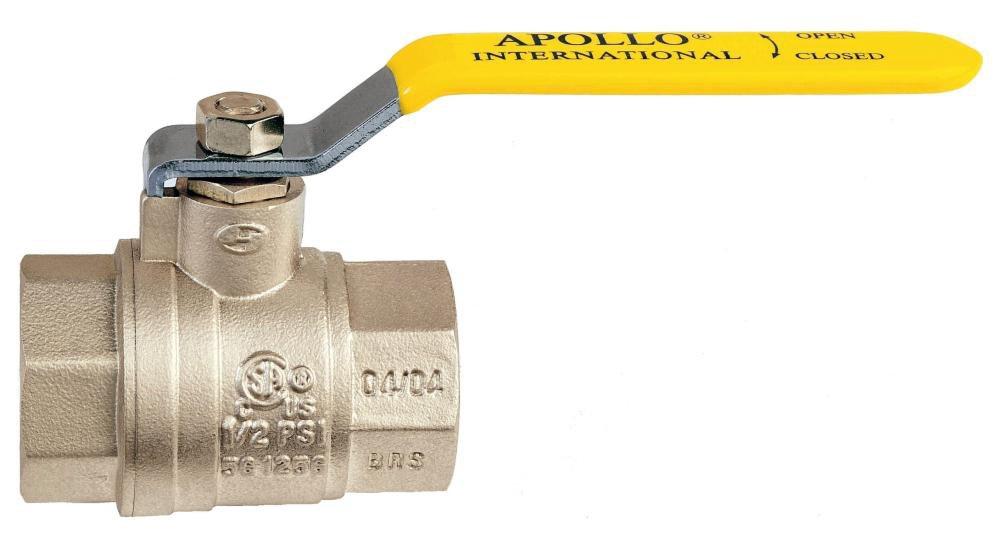

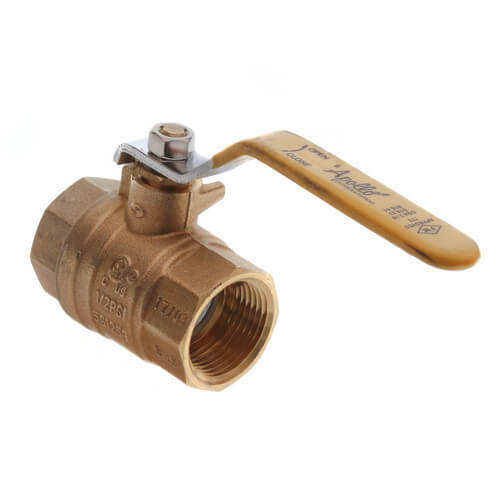

Apollo Valves 94A10501 1 in. Forged Brass Full Port NPT 600# Ball Valve

Product Description

The Apollo Valves 94A10501 is a one-inch forged brass full port NPT 600# ball valve. It is ideal for general flow control applications including HVAC, fuel gases, and fire protection trim and drain. This valve features a two-piece construction and is factory tested for reliability and performance.

• Max pressure rating of six hundred PSI WOG and one hundred fifty PSI WSP
• Temperature range from zero to four hundred degrees Fahrenheit
• Applications: Plumbing, HVAC, and fire protection

Product Highlights

Reliable operation with maximum economy in various flow control tasks.

Product Information

Standard Information

• Brand: Apollo Valves
• MPN: 94A10501

Technical Specifications

• Connection Type: FNPT
• Connection Size: 1 inch
• Material: Brass
• Ball Material: Chrome-Plated Brass
• Stem Material: Brass
• Seat Material: PTFE
• Pressure Rating: 600 psi CWP
• Temperature Rating: 0 - 400 degrees Fahrenheit
• Valve Design: 2-Piece, Full Port
• Overall Length: 4.566 inches
• Flow Co-Efficient: 16 Cv
• Standards/Certifications: cCSAus 226234, ANSI Z21.15, ASME B16.4
