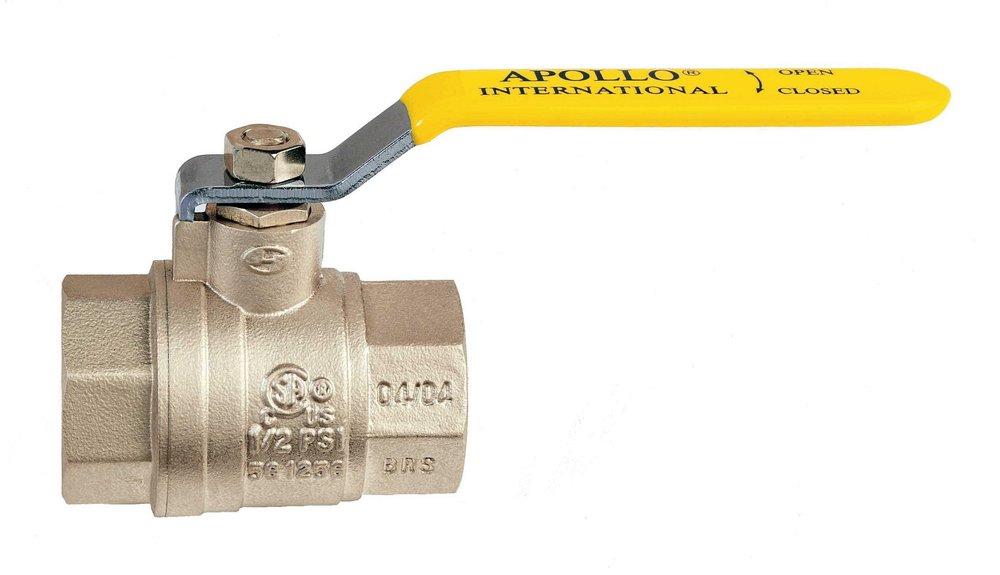

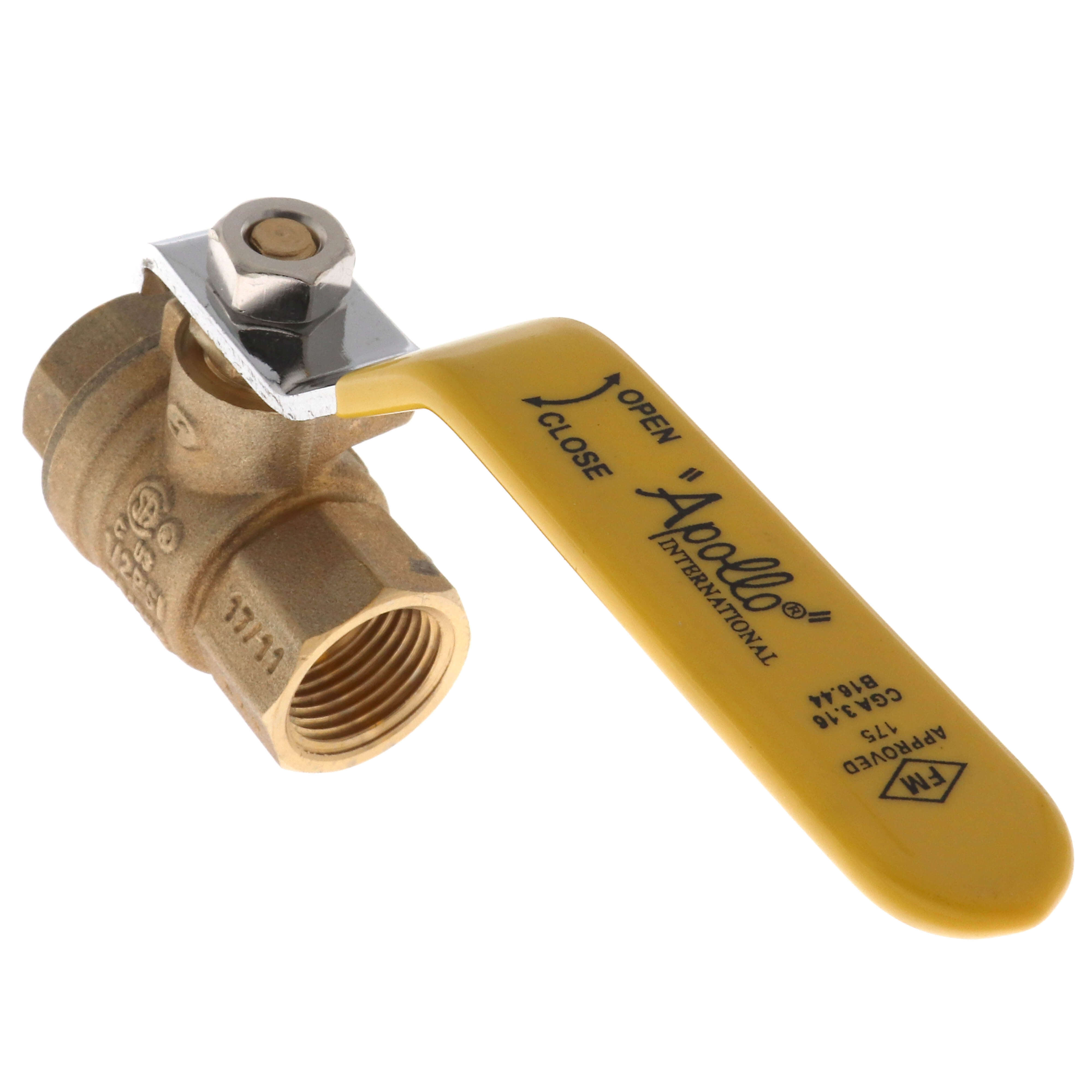

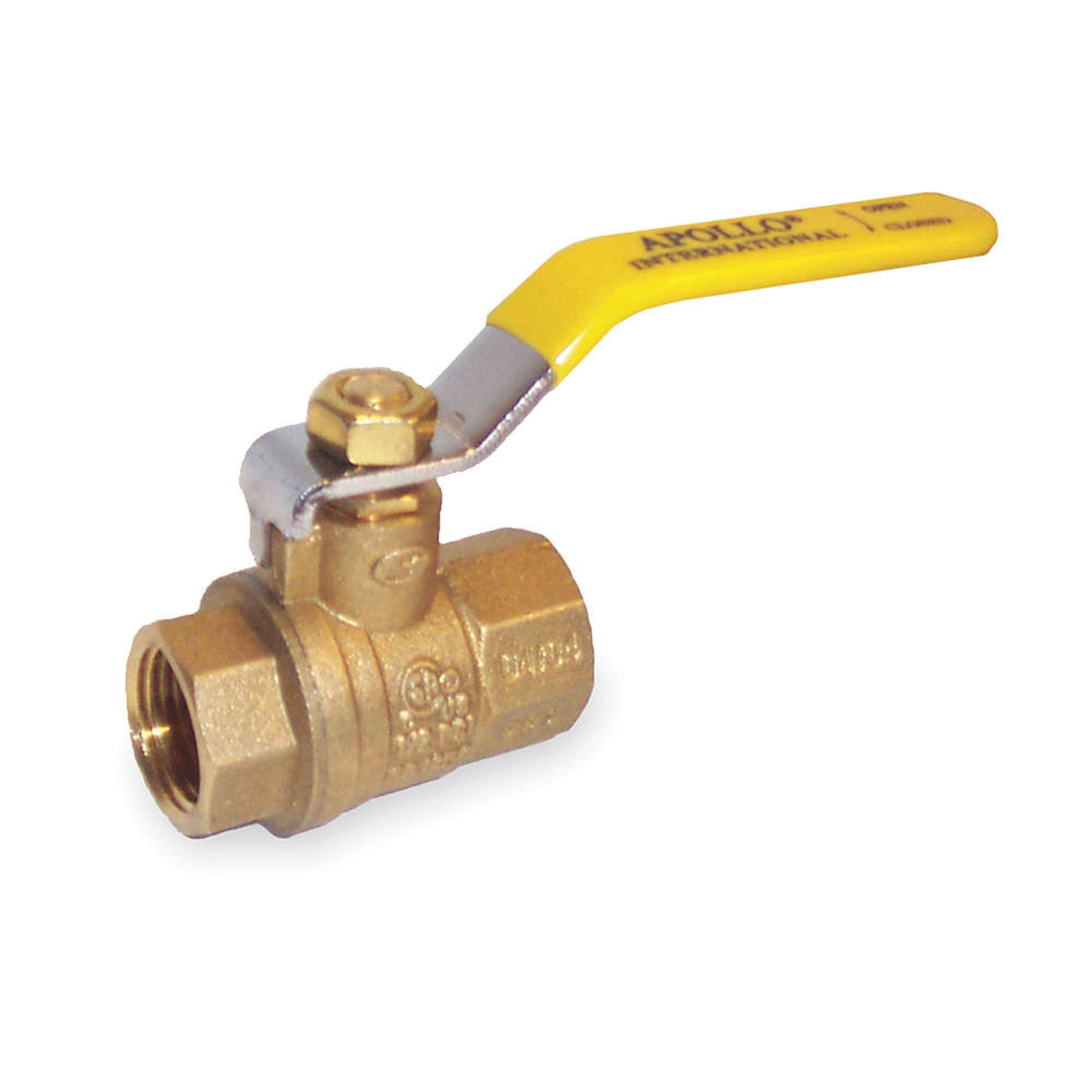

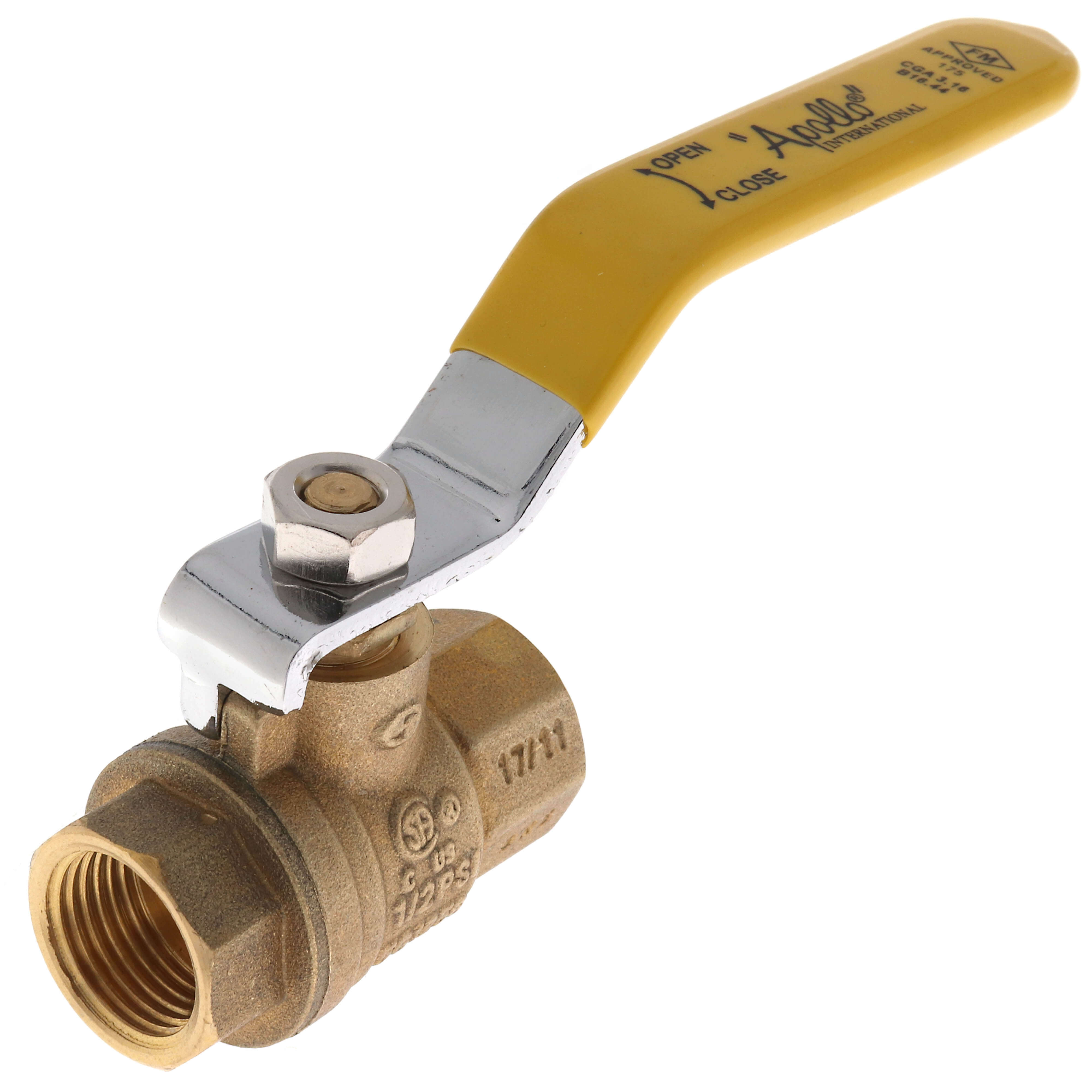

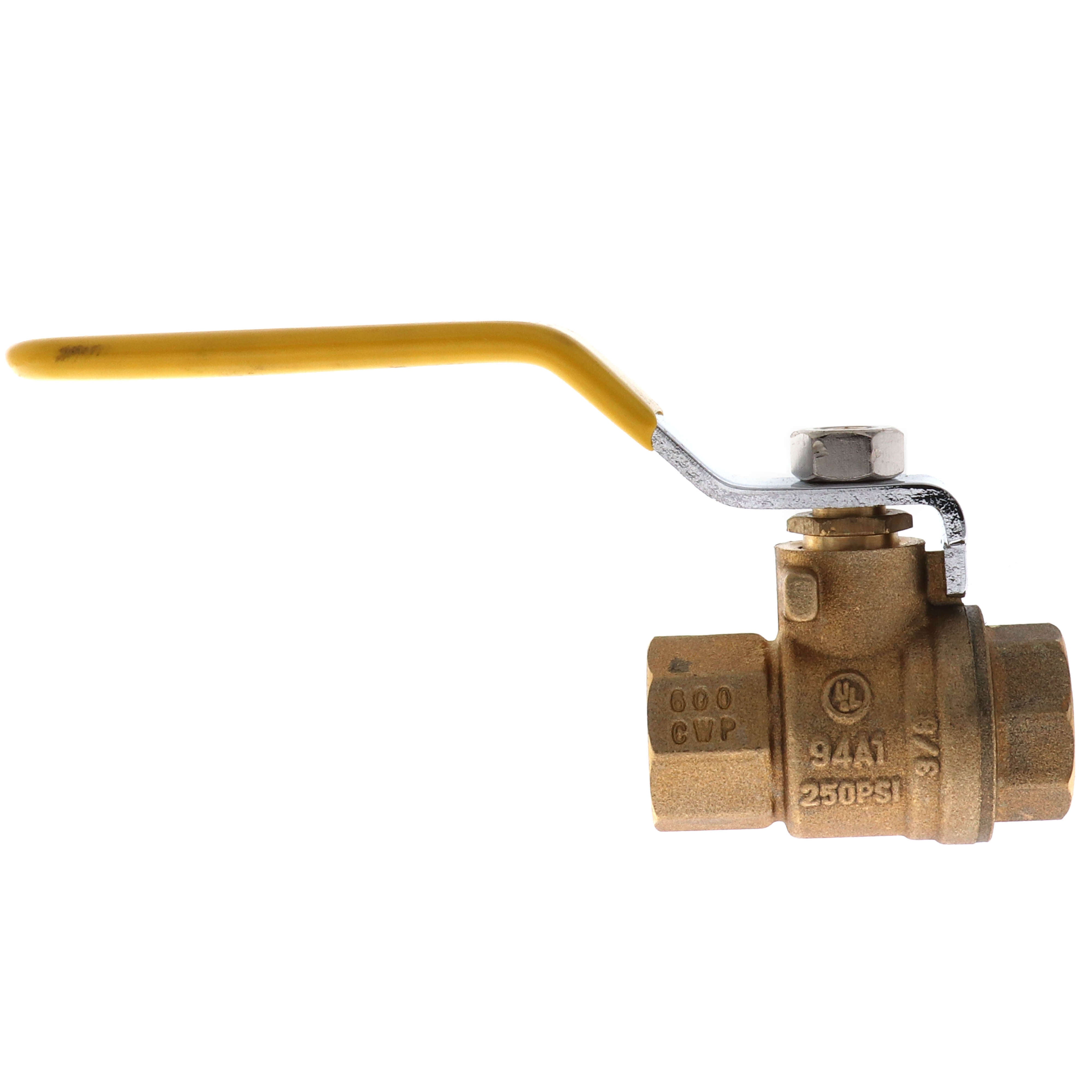

Apollo Valves 94A10201 94A Series Forged Brass Ball Valve 3/8 in. 600#

Product Description

The APOLLO VALVES 94A10201 is a forged brass ball valve that combines reliable operation with maximum economy. It is ideal for general flow control applications including HVAC, fuel gases, and fire protection trim and drain. This valve includes agency approvals and is 100% factory tested.

• 2-Piece, full port design
• Blowout-proof stem
• Adjustable stem packing nut

Product Highlights

This forged brass ball valve is designed for reliable operation and maximum economy in flow control applications.

Product Information

Standard Information

• Brand: APOLLO VALVES
• Manufacturer Part Number: 94A10201
• Country of Origin: Vietnam

Technical Specifications

• Size: 3/8"
• Max Pressure (PSI): 600
• Connection Type: FNPT x FNPT
• Connection Method: Threaded
• Material: Brass
• Handle Style: Lever
• Application: Plumbing
• Features: Standard
• Valve Construction: 2 piece
• Lead Free: No
• Housing material: Brass
• Material ball: Brass
• Material spindle: Brass
• Nominal diameter connection 1: DN 10
• Outer pipe diameter connection 1: 17.15mm
• Outer pipe diameter connection 1 (imperial): 0.68"
• Connection 1: Internal thread conical (NPT)
• Nominal diameter connection 2: DN 10
• Outer pipe diameter connection 2: 17.15mm
• Outer pipe diameter connection 2 (imperial): 0.68"
• Connection 2: Internal thread conical (NPT)
• With filter: No
• FM quality mark: No
• UL quality mark: No
• ULC quality mark: No
• LPCB quality mark: No
• Medically clean: No
• Grease-free: No
• Housing construction: 2-part
• Full bore: Yes
• Length of connection 1: 22.3mm
• Length of connection 1 (imperial): 0.88"
• Working length connection 1: 10.69mm
• Working length connection 1 (imperial): 0.42"
• Length of connection 2: 22.3mm
• Length of connection 2 (imperial): 0.88"
• Working length connection 2: 10.69mm
• Working length connection 2 (imperial): 0.42"
• Handle height: 20.19mm
• Handle height (imperial): 0.8"
• Handgrip length: 11.51mm
• Handgrip length (imperial): 0.45"
• VdS quality mark: No
• DVGW quality mark for gas: No
• DVGW quality mark for water: No
• KIWA certified: No
• Brand: APOLLO
• Manufacturer Part Number: 94A10201
• For Media: Combustible Gases
• Body Material: Brass
• Valve Body Style: Straight
• Ball Port Style: Full Port
• Nominal Valve Size: 3/8 in
• Connection Size - Side 1: 3/8 in
• Connection Gender - Side 1: Female
• Connection Type - Side 1: NPT
• Connection Size - Side 2: 3/8 in
• Connection Gender - Side 2: Female
• Connection Type - Side 2: NPT
• Max. Pressure (CWP): 600 psi
• Max. Pressure (Combustible Gas): Not Rated
• Coefficient of Volume (Cv): 0
• Handle Material: PVC; Steel
• Handle Color: Yellow
• Ball Material: Chrome-Plated Brass
• Seat Material: PTFE
• Seal Material: EPDM
• Stem Material: Brass
• Stem Type: Blowout Resistant
• Media Temp. Range: 0 0F to 400 0F
• Cleaned and Bagged: Not Cleaned and Bagged
• 3-A Compliance: Not Rated
• Meets UL Flammable Gas and Liquid Standards: UL 125; UL 842; UL 1477
• Standards: CSA; FM
• Overall Length: 1.76 in
• Handle Length: 3.58 in
• Handle Height: 1.73 in
• Valve Series: 94A
• UNSPSC: 40141607
• ANSI: ANSI Z21.1591-002
• ASME: ASME B16.33
• Collection: 94A Series
• End Connection 1: FPT
• End Connection 2: FPT
• End Connections: FPT
• FM Approved: Yes
• IAPMO Listed: No
• Lead Law Compliance Level: Not Compliant, Approved for Non-Potable Water Applications
• Length: 1-19/25
• MSS: MSS SP-110
• Material Type: PTFE
• Maximum Temperature: 400
• NSF: NSF 61
• NSF Certified: Yes
• Origin: Global
• Pressure - High: 600
• Pressure Class: 600#
• Recommended Valve Application: HVAC, Gas, Fuel
• Temperature Range: 0 to 400 Deg F (-18 to 204 Deg C)
• UL Listed: UL 125/UL 258/UL 842/UL 1477
• UPC: 670750823220
• Valve Body Material: Forged Brass
• Valve Bonnet Type: Welded
• Valve Operator: Lever Handle
• Valve Port Opening: Full Port
• Valve Seat Material: PTFE
• Valve Size: 3/8 in
• Valve Stem: Blowout-proof
• Valve Type: Ball Valve
• Weight: 0.3
