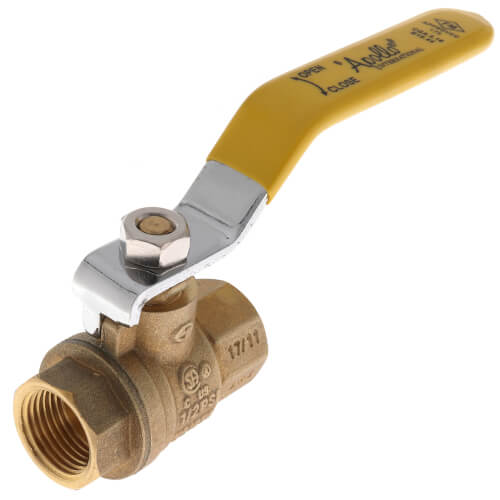

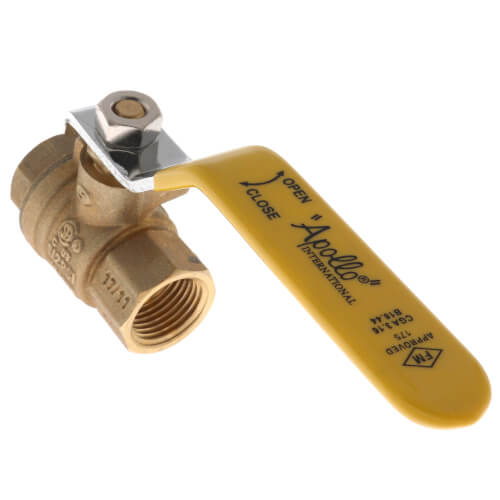

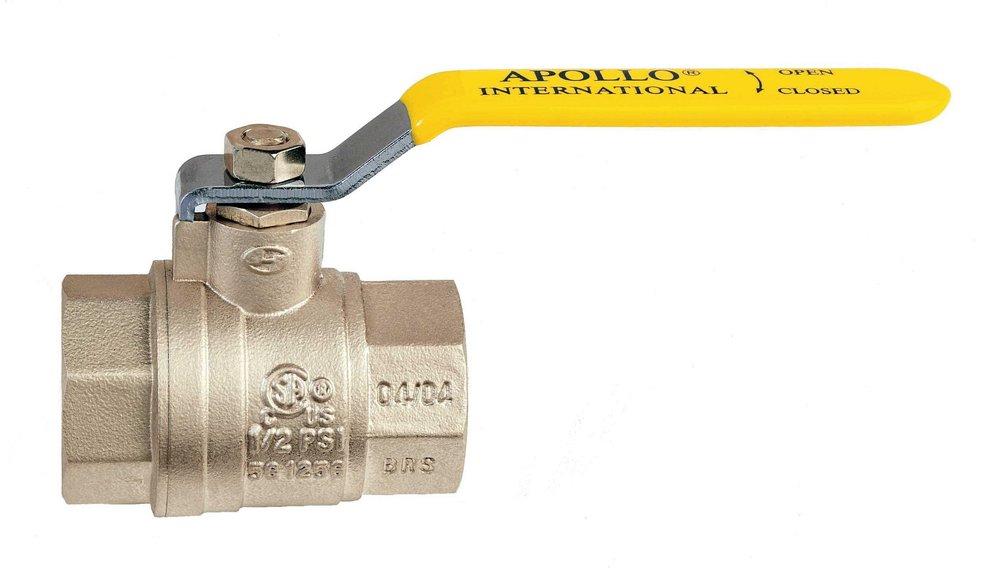

Apollo Valves 94A10201 3/8 Full Port NPT 600# Ball Valve

Product Description

The Apollo Valves 94A10201 is a 3/8 inch forged brass full port NPT ball valve designed for various applications. This valve is suitable for general flow control in HVAC systems, fuel gases, and fire protection. The valve features a two-piece design and is factory tested to meet high standards for reliability and performance.

• Full port design for maximum flow
• Blowout-proof stem for enhanced safety
• Compatible with FNPT connections

Product Highlights

This ball valve is durable and offers a lever handle for easy operation. Its construction includes brass material, ensuring longevity and resistance to wear. With a maximum pressure rating of six hundred PSI, it is designed to handle demanding applications.

Product Information

Standard Information

• Brand: Apollo Valves
• Size: 3/8 inch

Technical Specifications

• MPN: 94A10201
• Max Pressure: 600 PSI WOG
• Connection Type: FNPT
• Material: Brass
• Temperature Range: 0 to 400 F
• Overall Length: 4.566 inches
• Standards: UL, CSA
• Valve Design Rating: 600 CWP
• Weight: 0.31 lbs
