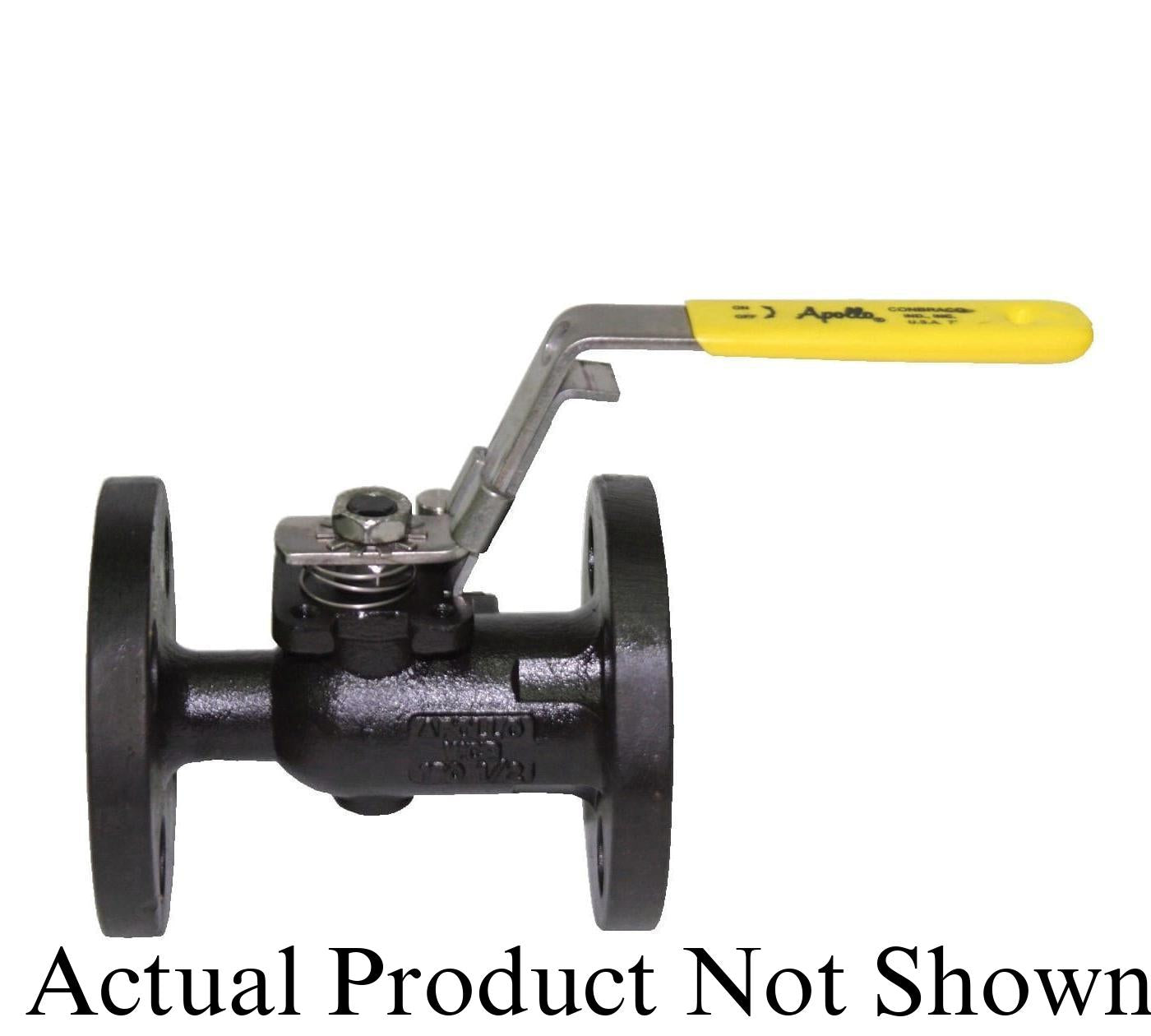

Apollo Valves 88A24501 Ball Valve - 1 inch, Class 150, Flanged

Product Description

The Apollo Valves 88A24501 is a flanged ball valve with a nominal size of one inch. This valve features a durable construction with a carbon steel body and a 316 stainless steel ball and stem. It is rated up to 250 psi and meets ASME Class 150RF standards. The valve has a full port design that promotes optimal flow and includes a lever handle actuator for easy operation.

• Constructed to comply with NACE MR0175 and MR0103 standards.
• Features a two-position locking device for secure operation.
• Compatible for vacuum service down to twenty-nine inches of Hg.

Product Highlights

This valve is designed for various applications requiring high durability and resistance to corrosion.

Product Information

Standard Information

• Brand: Apollo
• Type: Flanged Ball Valve

Technical Specifications

• MPN: 88A24501
• Nominal Size: 1 inch
• Pressure Rating: 250 psi
• Inlet to Outlet Length: 5 inches
• Top to Inlet Center Distance: 4.62 inches
• Body Material: Carbon Steel
• Ball Material: 316 Stainless Steel
• Softgoods Material: PTFE
